Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Variable Frequency Drive |

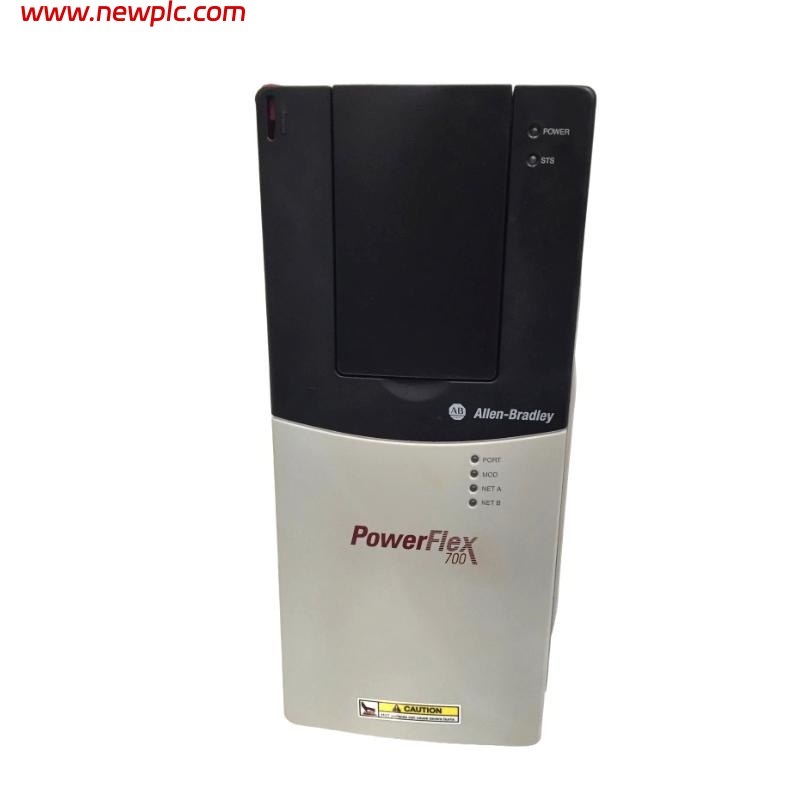

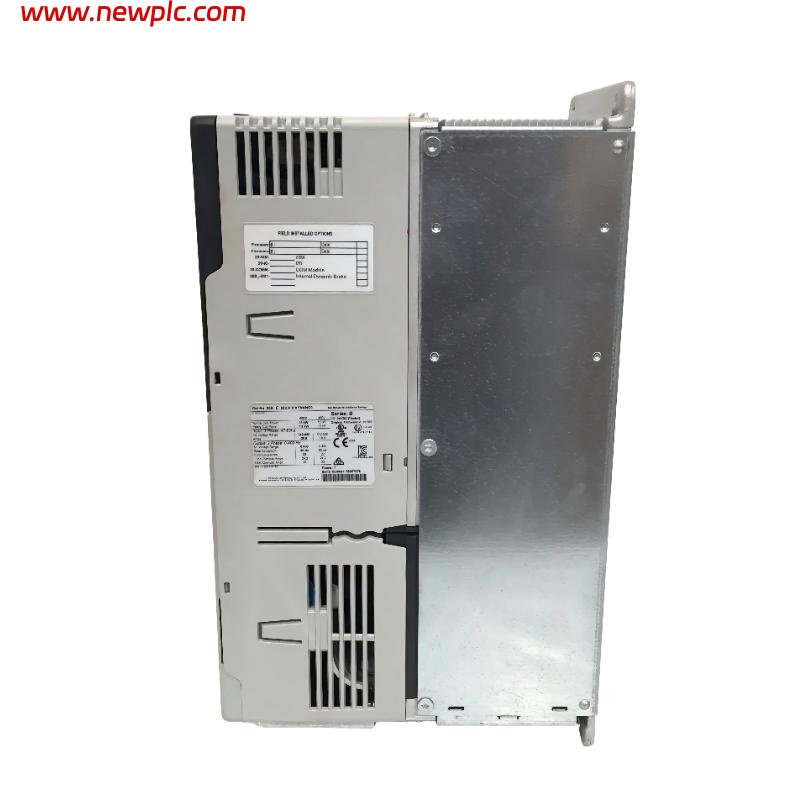

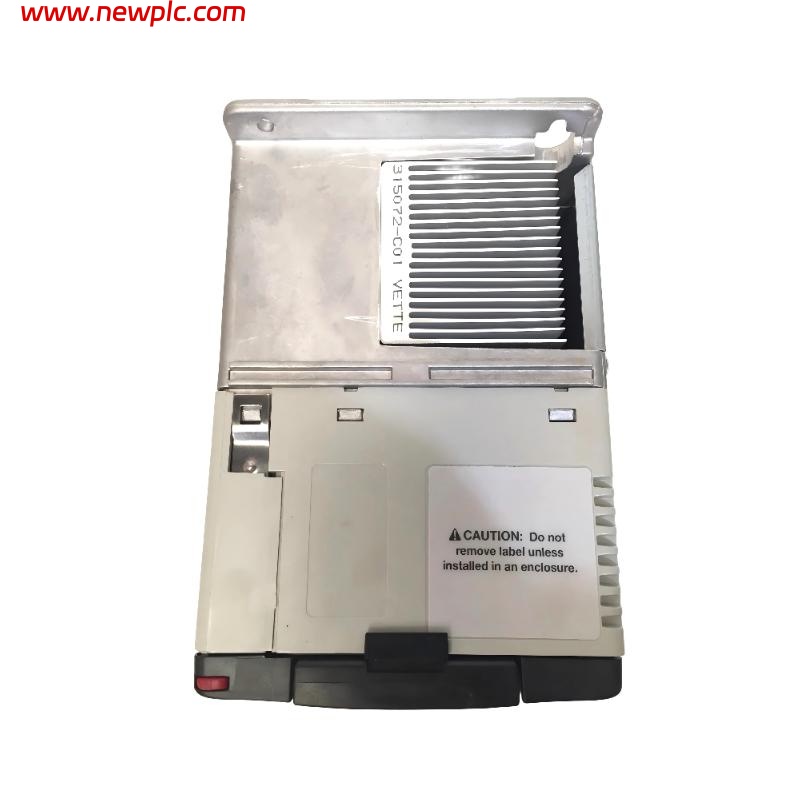

| Model | Allen-Bradley 20BC022A0AYNANC0 |
| Series | PowerFlex 700 |
| Function | Industrial AC motor speed and torque control drive |
| Input Voltage | 380–480 V AC, 3-phase |
| Nominal Voltage | 400 V AC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0–460 V AC, 3-phase |
| Output Current | 22 A |
| Output Power | 11 kW (Normal Duty) / 7.5 kW (Heavy Duty) |
| Control Method | Sensorless Vector Control / V/Hz |
| Communication | EtherNet/IP, DeviceNet, PROFIBUS, Modbus (optional modules) |
| EMC Filter | Integrated EMC filter with common-mode choke |
| Brake Function | Built-in brake IGBT (no internal resistor) |
| Control I/O | 6 digital inputs, 3 digital outputs, 2 analog inputs, 2 analog outputs |
| Max Output Frequency | Up to 420 Hz |
| Efficiency | ~97.5% |
| Protection Functions | Overcurrent, overvoltage, undervoltage, motor overload, ground fault |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Mounting Type | Panel mount |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | 294 × 234 × 522 mm |
| Weight | ~8.09 kg |
FAQ
FAQ
Q1. What is the 20BC022A0AYNANC0 used for?
It is a PowerFlex 700 AC drive designed to control speed and torque of three-phase motors in industrial automation systems.
Q2. What is its power rating?
It provides 11 kW under normal duty and 7.5 kW under heavy duty operation.
Q3. What type of input power does it require?
It operates on a 380–480 V AC three-phase supply with a nominal voltage of 400 V.
Q4. Does it include braking capability?
Yes, it includes a built-in brake IGBT, but no internal brake resistor is provided.
Q5. What communication options are available?
It supports EtherNet/IP, DeviceNet, PROFIBUS, and Modbus through optional communication modules.
Q6. What is the enclosure type?
It is designed as an IP20 / NEMA Type 1 panel-mounted drive.
Q7. What are its physical dimensions and weight?
Its dimensions are approximately 294 × 234 × 522 mm, and it weighs about 8.09 kg.
Q8. Is this model still available?
No, it was officially discontinued in November 2023 and is no longer sold as a new product.
