Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Variable Frequency Drive |

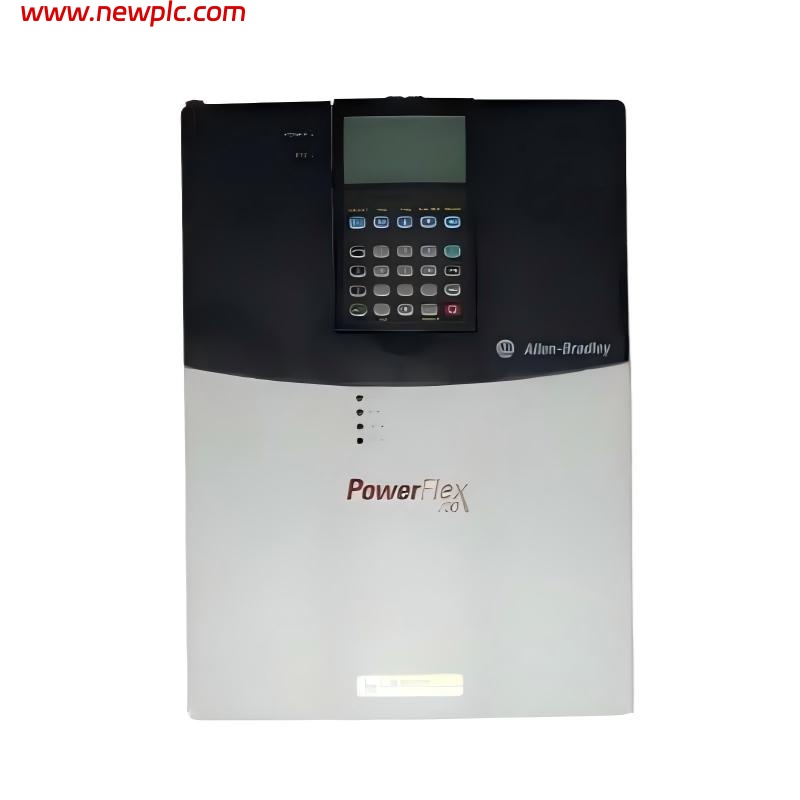

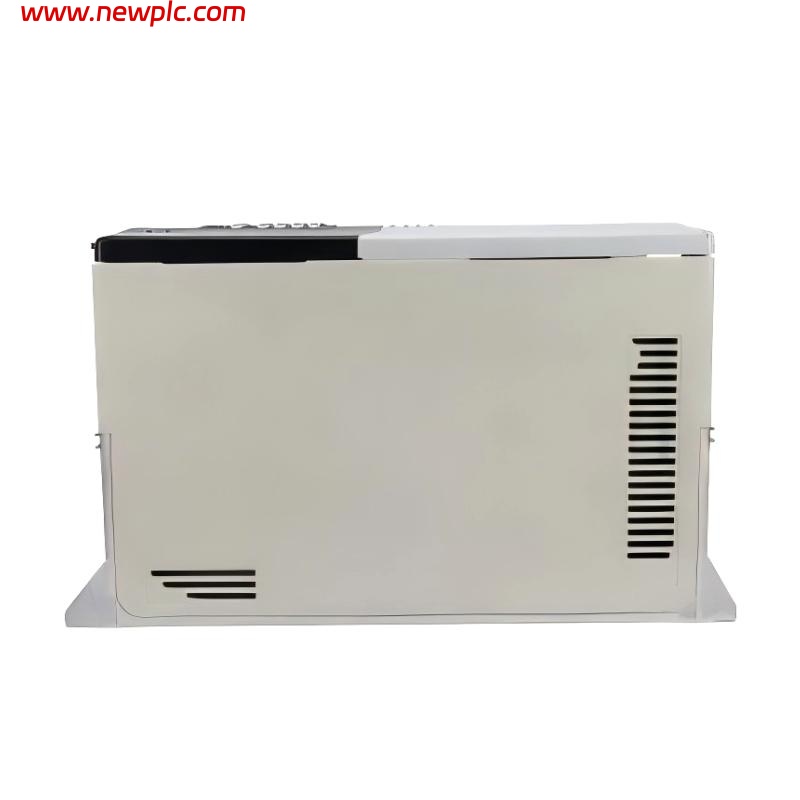

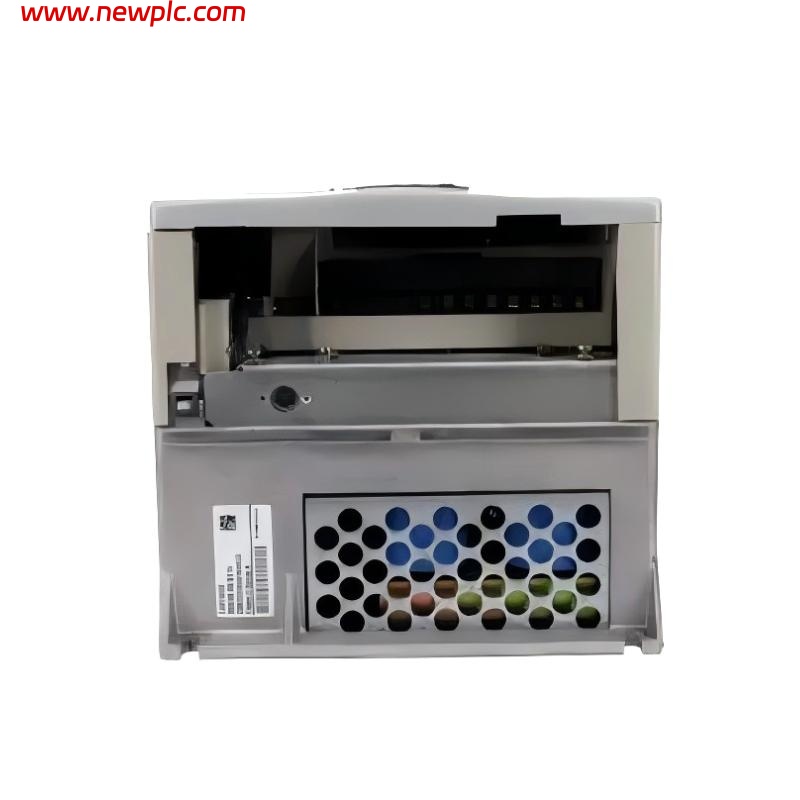

| Model | Allen-Bradley 20BC037A0AYNANC0 |
| Series | PowerFlex 700 |
| Function | Industrial AC motor speed and torque control drive |
| Input Voltage | 380–480 V AC, 3-phase (nominal 400 V) |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0–460 V AC, 3-phase |
| Output Current | 37 A |
| Output Power | 18.5 kW (Normal Duty) / 15 kW (Heavy Duty) |
| Frame Size | Frame 2 (C/D equivalent range) |
| Control Method | Sensorless Vector Control / V/Hz |
| Communication | EtherNet/IP, DeviceNet, Modbus, PROFIBUS (via optional modules) |
| EMC Filter | Integrated EMC filter with common-mode choke |
| Brake Function | Built-in brake IGBT (no internal brake resistor) |
| Control I/O | 6 digital inputs, 3 digital outputs, 2 analog inputs, 2 analog outputs |
| Max Output Frequency | Up to 420 Hz |
| Protection Functions | Overcurrent, overvoltage, undervoltage, motor overload, ground fault |
| Efficiency | ~97.5% |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Mounting Type | Panel mount |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | 320 × 335 × 524 mm |
| Weight | 13.62 kg |
FAQ
FAQ
Q1. What is the 20BC037A0AYNANC0 used for?
It is a PowerFlex 700 AC drive designed for controlling speed and torque of three-phase motors in medium-power industrial applications.
Q2. What is its power rating?
It provides 18.5 kW under normal duty and 15 kW under heavy duty conditions.
Q3. What type of power supply does it require?
It operates on a 380–480 V AC three-phase supply with a nominal voltage of 400 V.
Q4. Does it include braking capability?
Yes, it has a built-in brake IGBT, but an external braking resistor is required if braking is needed.
Q5. Does this model include a communication module?
No, this configuration does not include a communication module by default, but supports optional network cards.
Q6. What control methods are supported?
It supports sensorless vector control and V/Hz control for flexible motor operation.
Q7. What are its physical dimensions and weight?
Its dimensions are 320 × 335 × 524 mm, and it weighs approximately 13.62 kg.
Q8. Is this model still available?
No, it has been discontinued and is now considered a legacy product in the PowerFlex 700 series.
