Technical Specifications
| Parameter | Specification |
|---|---|

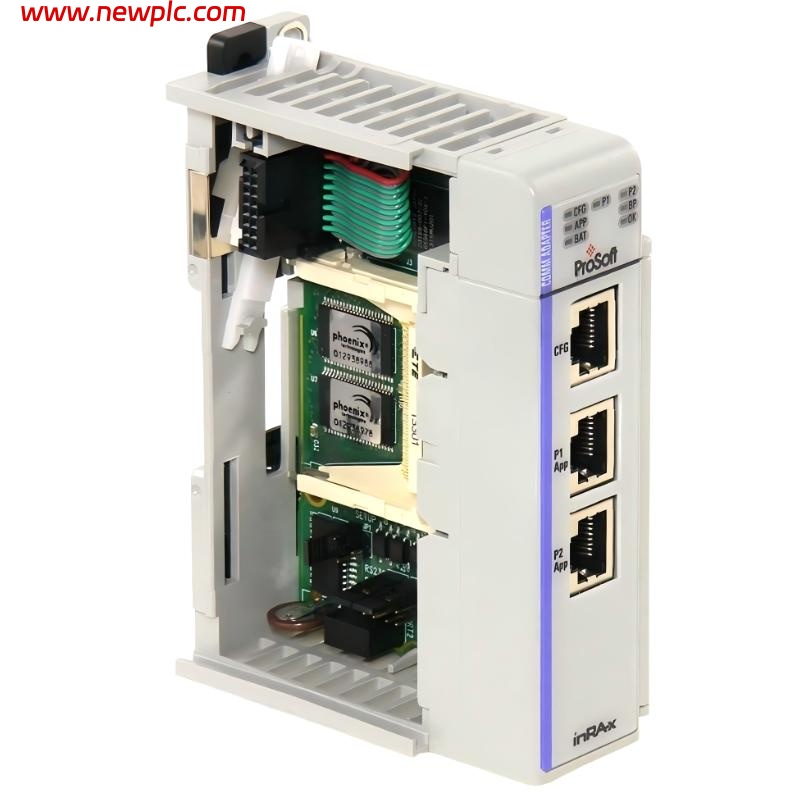

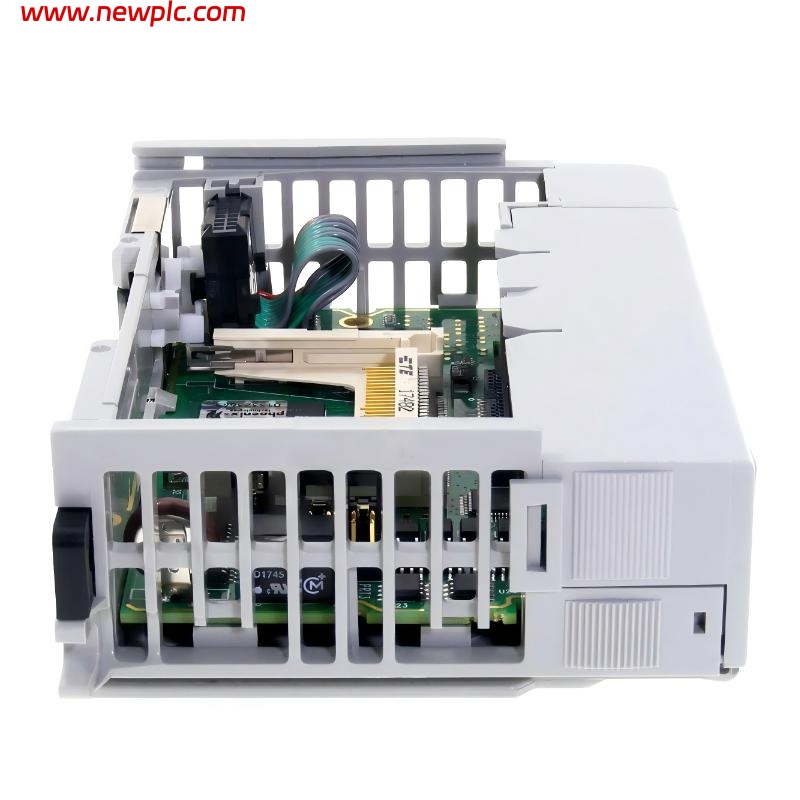

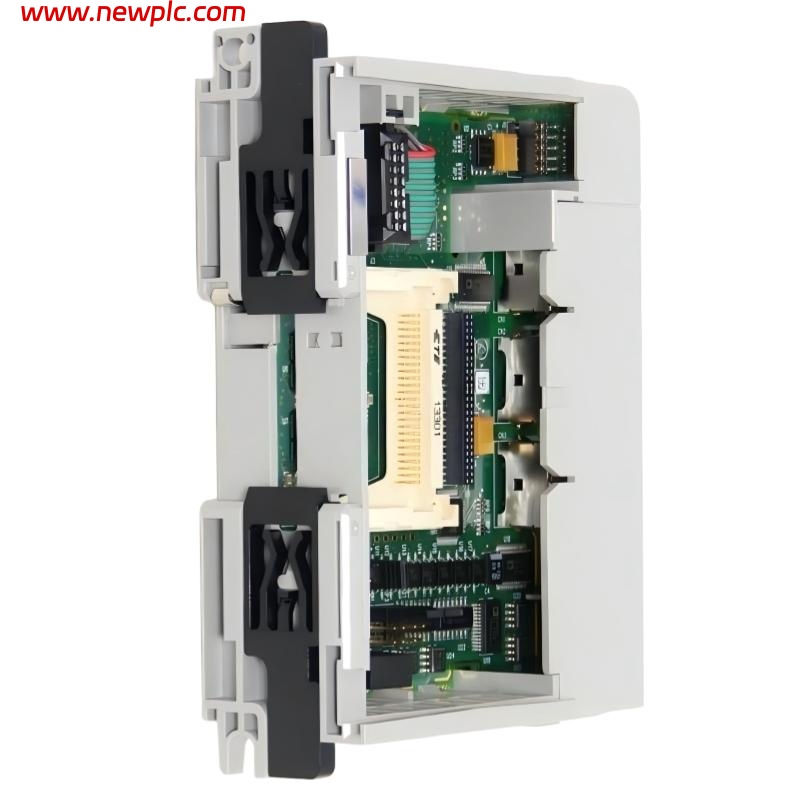

| Product Series | ProSoft inRAx Communication Module |
| Model Number | MVI69-GSC |
| Product Type | Generic Serial Communication Module |
| Platform Compatibility | Allen-Bradley CompactLogix / MicroLogix (1769 backplane) |
| Function | Enables serial communication between PLC and external devices using custom protocols |
| Protocol Support | User-defined / ASCII-based serial protocols |
| Ports | 2 × serial ports (RS-232/422/485 configurable) |
| Slot Requirement | Single-slot 1769 I/O module |
| Data Transfer Method | Internal database with ladder logic interface |
| Configuration Method | Text configuration file + Add-On Instruction (AOI) |
| Baud Rate | Up to 115.2 kbps |
| Data Handling | User-defined message structures and parsing |
| Backplane Current | Approx. 800 mA @ 5 VDC |
| Isolation | Electrical isolation for communication ports |
| Diagnostics | LED status indicators + configuration/debug tools |
| Mounting Type | CompactLogix rack-mounted module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 137 × 87 × 105 mm |
| Weight | Approx. 0.5–1.2 kg |
FAQ
FAQ
Q1. What is the MVI69-GSC used for?
It is used to connect CompactLogix PLCs to serial devices using custom or proprietary communication protocols.
Q2. What protocols does it support?
It supports user-defined ASCII or binary serial protocols rather than fixed industrial standards.
Q3. How many communication ports are available?
It has two configurable serial ports supporting RS-232, RS-422, or RS-485.
Q4. Is it a plug-and-play module?
No, it requires configuration and custom message setup depending on the application.
Q5. How does it integrate with the PLC?
It exchanges data through an internal database that is accessed via ladder logic or AOI in Studio 5000.
Q6. What makes it different from Modbus modules?
Unlike Modbus modules, it allows completely flexible, user-defined serial communication.
Q7. What industries use this module?
It is used in systems requiring integration with barcode scanners, printers, sensors, or custom devices.
Q8. What is the weight of the module?
Approximately 0.5–1.2 kg, depending on version and packaging.
