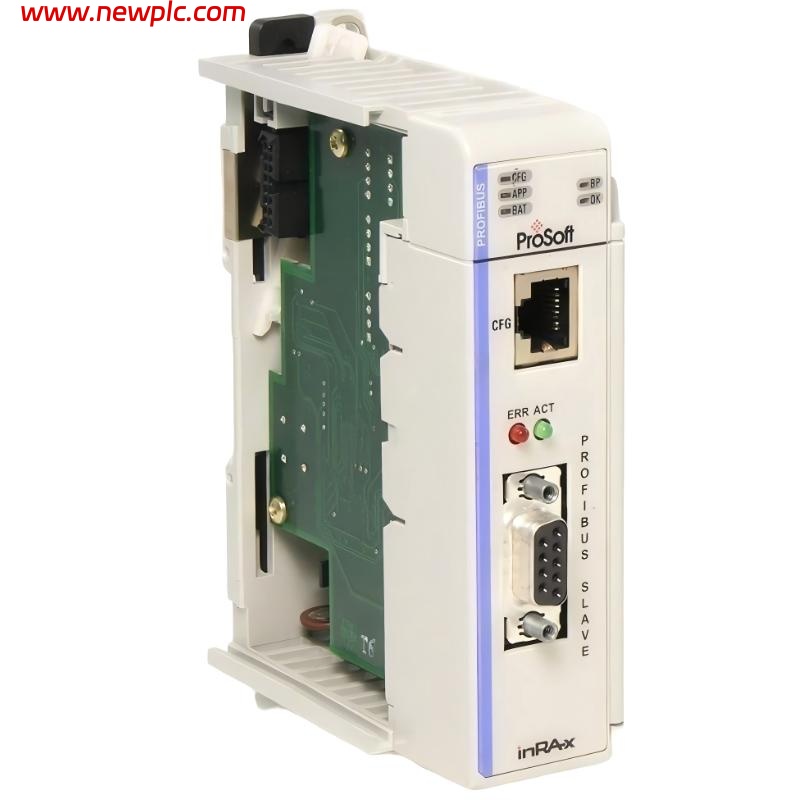

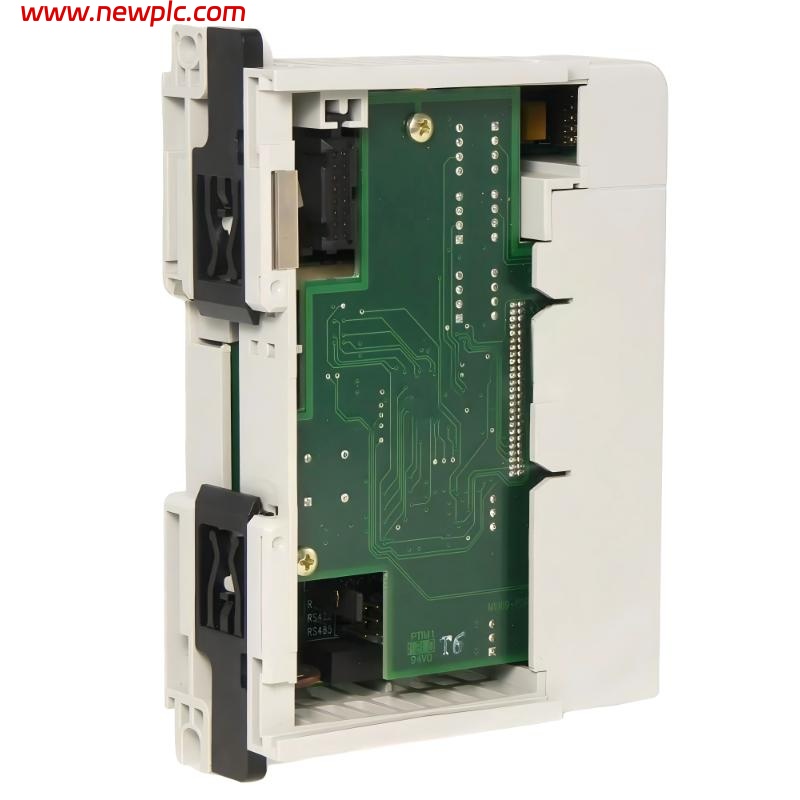

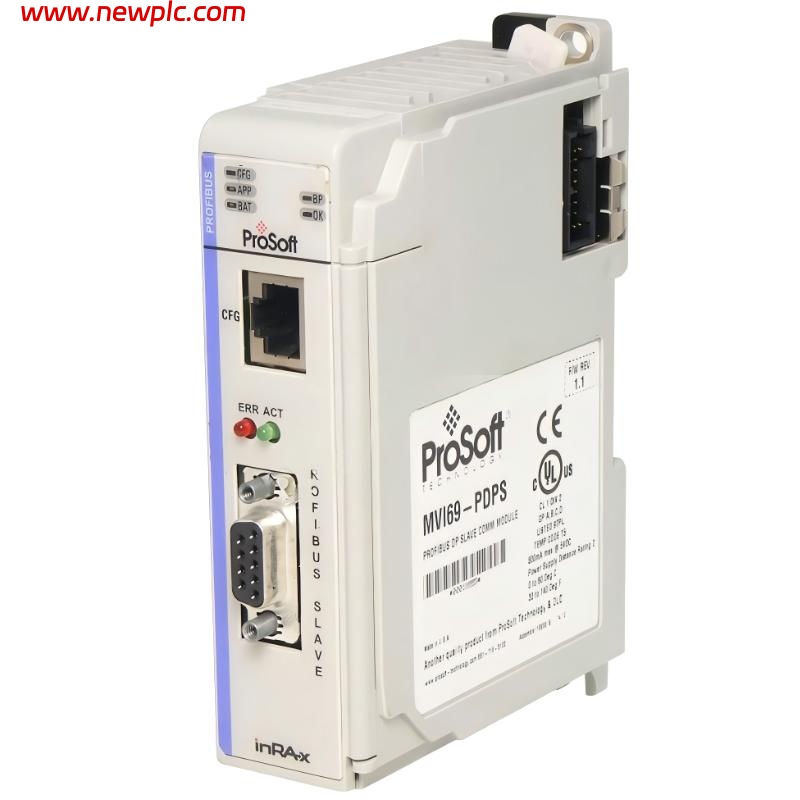

ProSoft MVI69-PDPS PROFIBUS DP Slave Communication Module

FAQ

Q1. What is the MVI69-PDPS used for?
It allows a CompactLogix PLC to connect as a PROFIBUS DP slave within an existing PROFIBUS network.

Q2. Is it a master or slave module?
It operates as a PROFIBUS DP Slave only.

Q3. What PLC systems are compatible?
It is designed for CompactLogix and MicroLogix 1500 systems using the 1769 backplane.

Q4. How is it configured?
It is configured using a GSD file on the PROFIBUS master side and an Add-On Instruction (AOI) in Studio 5000.

Q5. What is the communication speed?
It supports PROFIBUS DP communication rates up to 12 Mbps.

Q6. How does data exchange work?
Data is mapped through an internal database and exchanged cyclically with the PROFIBUS master.

Q7. What industries use this module?
It is commonly used in automotive, packaging, and process industries with existing PROFIBUS infrastructure.

Q8. What is the weight of the module?
Approximately 0.5–1.3 kg, depending on revision and packaging.
