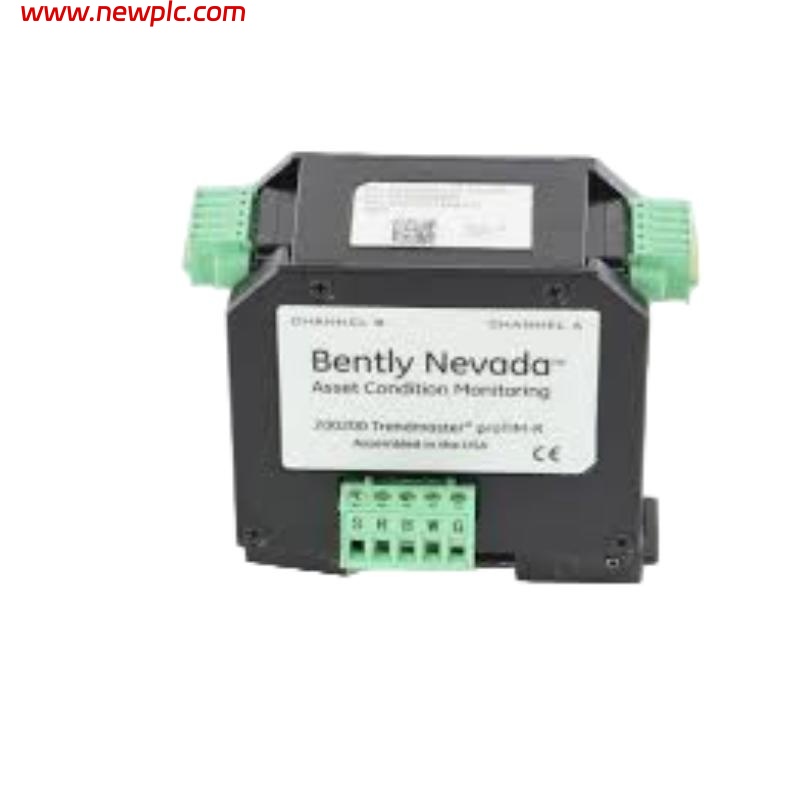

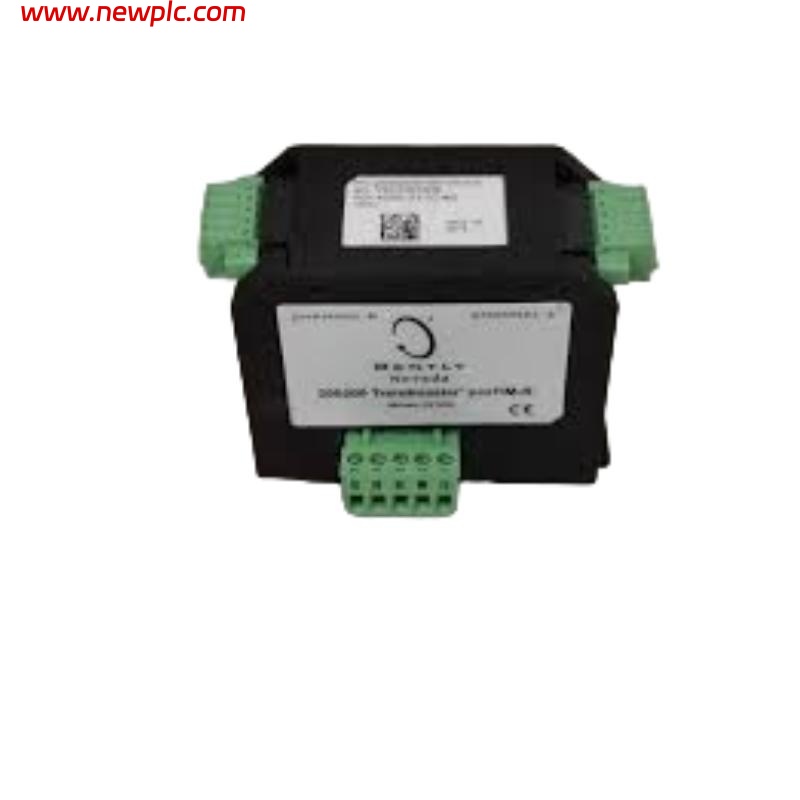

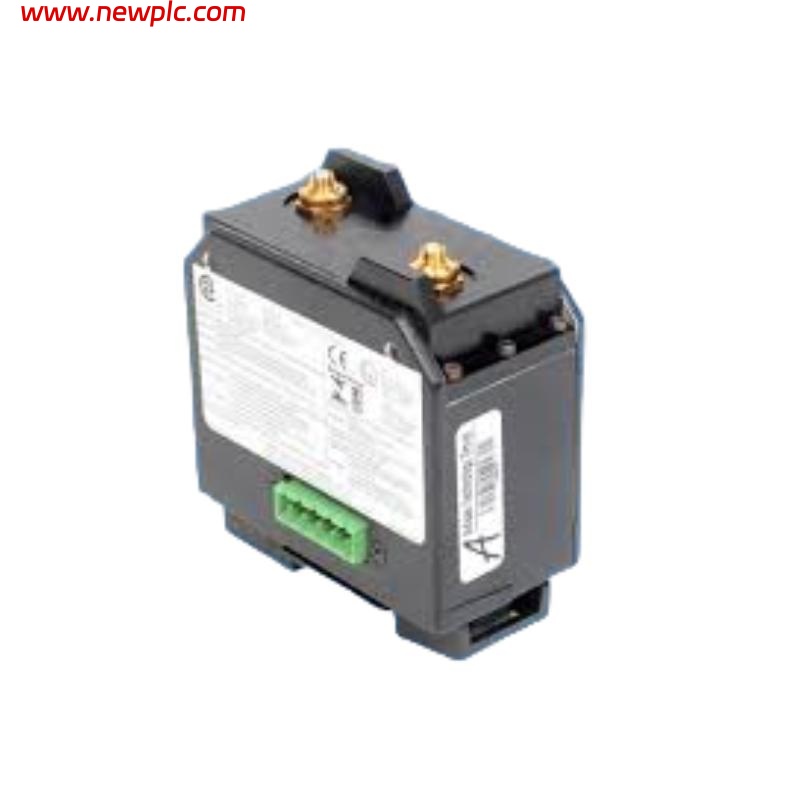

Bently Nevada 200200-03-03-05 Dual‑Channel Condition Monitor (ProTIM‑R variant)

FAQ

Q1: What is the function of the 200200‑03‑03‑05 monitor?
A1: This unit is a dual‑channel condition monitor (ProTIM‑R variant) designed to accept various sensor signals—such as vibration, temperature, displacement—and condition them for analysis, alarming, and interconnection with monitoring systems.

Q2: What sensor input modes are supported?
A2: Each channel can be configured for modes like acceleration‑to‑velocity (A‑V), low‑frequency A‑V, acceleration with enveloping (AE), displacement, keyphasor, thermocouples or RTDs.

Q3: What is the velocity range when using A‑V mode?
A3: The standard full‑scale velocity range is 0 to 50 mm/s peak, with the ability to over‑range up to about 63 mm/s.

Q4: What accuracy and resolution does the monitor offer?
A4: The resolution is 0.025 mm/s (0.001 in/s), and the typical accuracy in A‑V mode (at 80 Hz) is ±15 %.

Q5: What is the frequency response for velocity measurement?
A5: In standard A‑V mode, the frequency response is 10 Hz to 1 kHz (±20 % / ±2 dB). In the low‑frequency A‑V mode, it is 3 Hz to 1 kHz (±10 %).

Q6: What are the physical dimensions and weight?
A6: The unit measures roughly 86.2 mm × 79.0 mm × 100.9 mm and weighs about 0.84 kg.

Q7: What are the environmental operating conditions?
A7: It operates reliably from –20 °C to +70 °C ambient temperature and includes electrical channel isolation and a robust housing design.

Q8: How is it integrated with monitoring systems?
A8: It outputs processed signals suitable for trending or alarming, supports multiple input types for flexibility, and can interface with host systems via its conditioned outputs.
