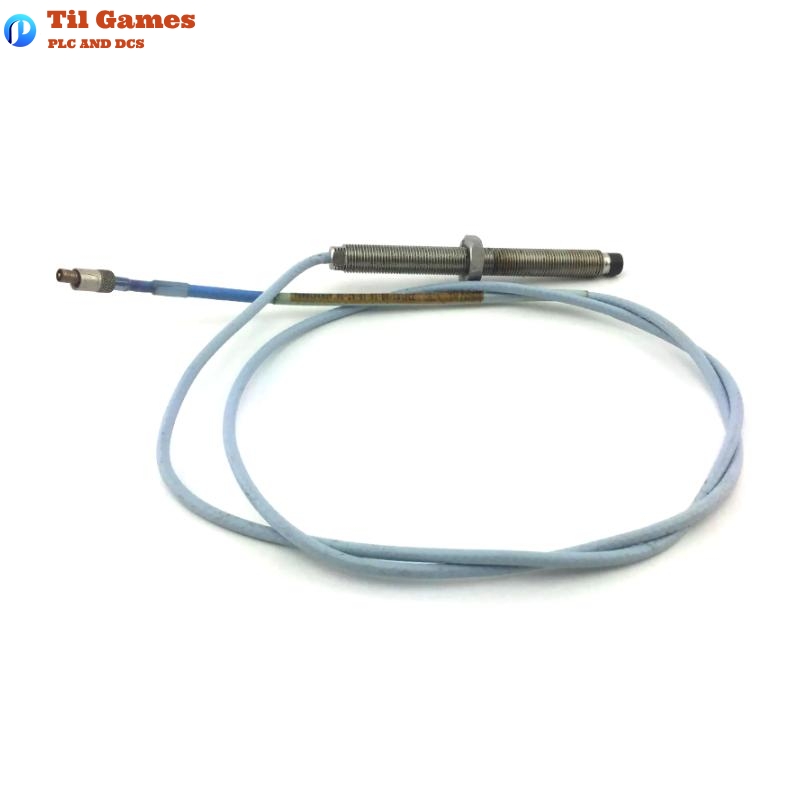

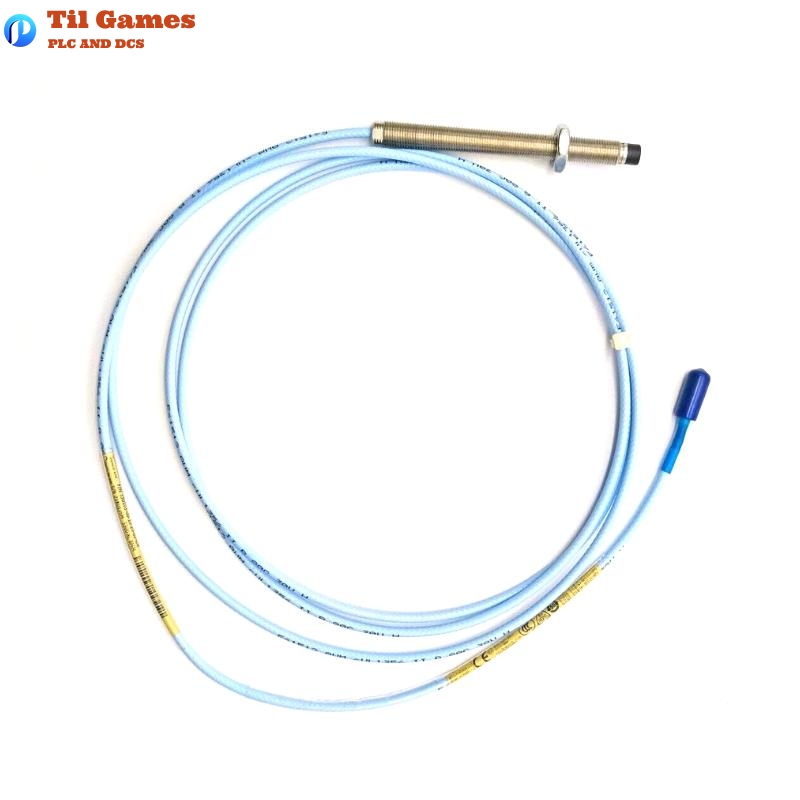

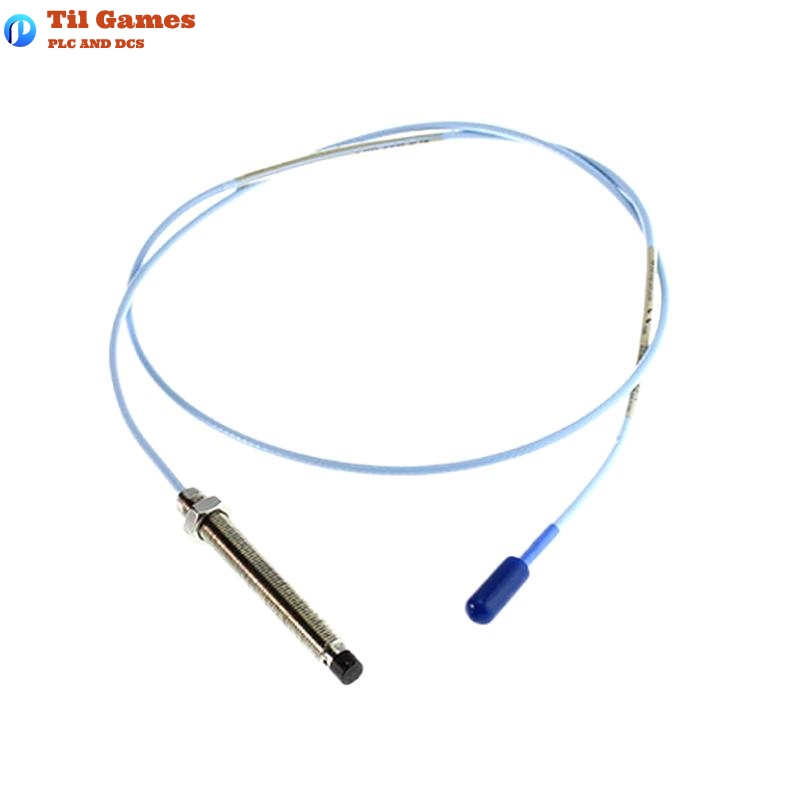

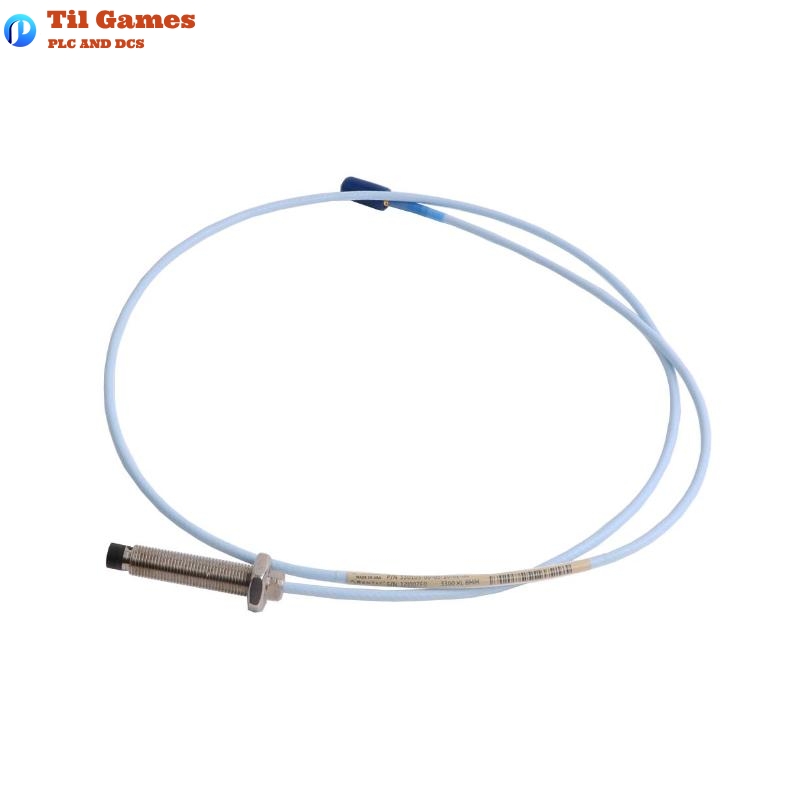

Bently Nevada 330103-00-10-10-02-05 3300 XL 8 mm Proximity Probe

Frequently Asked Questions (FAQ)

Q1: What is the function of the 330103-00-10-10-02-05 proximity probe?
A1: It measures both static (position) and dynamic (vibration) displacements of rotating machinery by detecting the distance between the probe tip and a conductive surface.

Q2: What materials are used in the probe’s construction?
A2: The probe tip is molded with PPS (Polyphenylene Sulfide) and the probe case is constructed from AISI 303 or 304 stainless steel for durability and corrosion resistance.

Q3: Is this proximity probe compliant with API 670 standards?
A3: Yes, the standard 3300 XL 8 mm system complies with API 670 standards in terms of mechanical design, linearity, and temperature stability.

Q4: What is the significance of the ClickLoc connector?
A4: ClickLoc connectors are gold-plated and feature a locking mechanism that provides reliable, finger-tight connections without the need for special tools.

Q5: Can this probe be used in high-temperature applications?
A5: The standard version supports up to +177°C. For temperatures up to +218°C (probe tip) and +260°C (cable), an Extended Temperature Range (ETR) version is available.

Q6: How is the probe installed and mounted?
A6: The probe features an M10 x 1 threaded body for secure mounting and is typically installed using corresponding brackets or mounts, ensuring proper gap alignment.

Q7: What is the recommended gap voltage setting for radial vibration measurements?
A7: The recommended gap setting is -9 Vdc, which corresponds to a distance of approximately 1.27 mm (50 mils).

Q8: Is field calibration required when replacing components?
A8: No. All components in the 3300 XL system are fully interchangeable and factory calibrated to AISI 4140 steel, eliminating the need for field calibration.

3300 XL 8 mm Proximity Probe 330103-00-10-10-02-05 Bently Nevada
