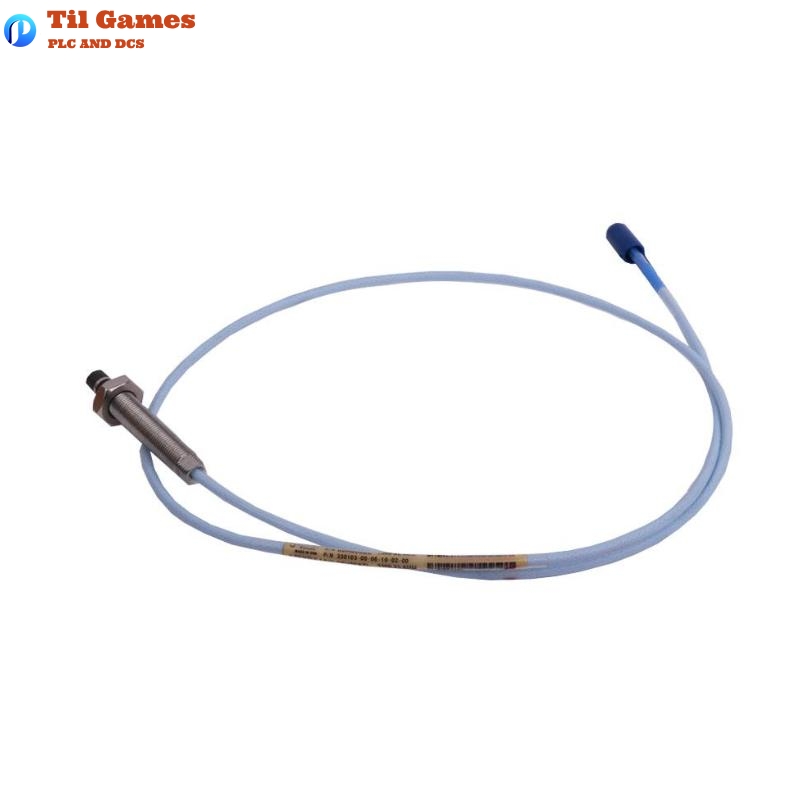

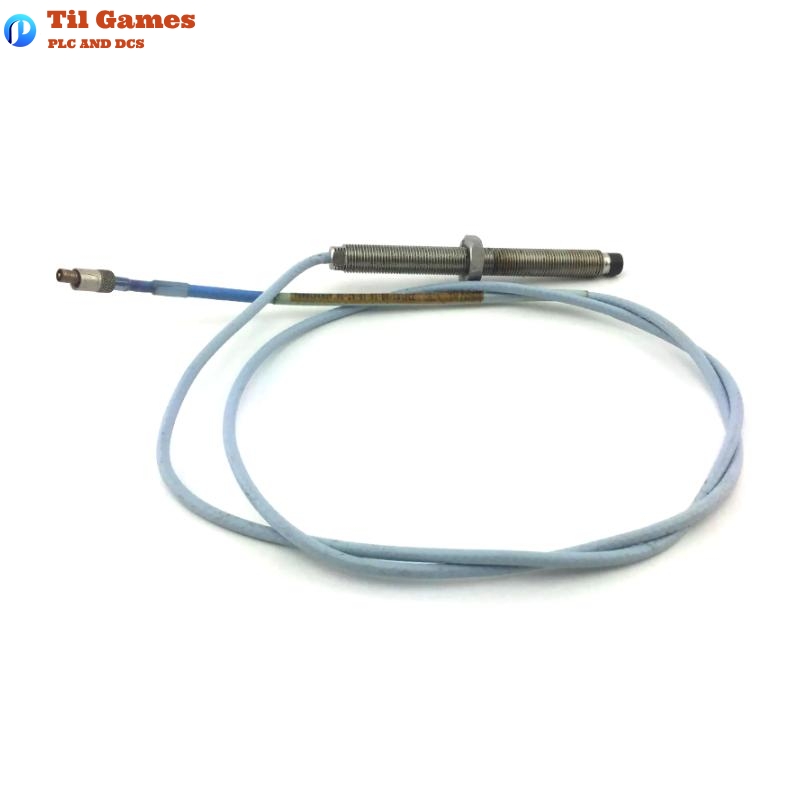

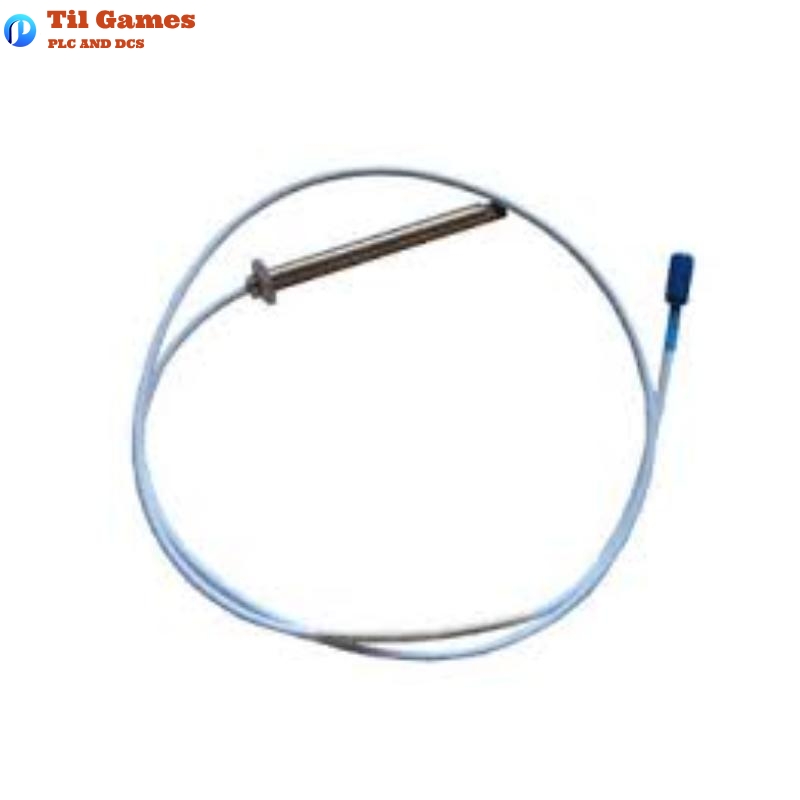

Bently Nevada 330103-00-10-10-02-CN 3300 XL 8 mm Proximity Probe

Frequently Asked Questions (FAQ)

Q1: What is the difference between the 330103 probe and other 3300 XL 8 mm probes?
A1: The 330103 uses an M10 x 1 metric thread instead of the standard 3/8-24 UNF thread and is primarily used in regions or systems where metric threading is standard.

Q2: Is the 330103 probe compatible with non-XL 3300 systems?
A2: Yes, it is both physically and electrically compatible with non-XL 3300 8 mm and 5 mm components, although system performance may revert to non-XL specifications.

Q3: Can the 330103 probe be used in high-temperature environments?
A3: Yes, the standard version supports up to +177°C. An Extended Temperature Range (ETR) version is available with a probe tip rating up to +218°C and cable up to +260°C.

Q4: What is the recommended minimum shaft diameter for accurate readings?
A4: The recommended minimum shaft diameter is 76.2 mm (3 inches), with 50.8 mm (2 inches) being the absolute minimum.

Q5: Does the 330103-00-10-10-02-CN require calibration for different target materials?
A5: Yes, it is factory calibrated for AISI 4140 steel. Calibration to other materials is available upon request for accurate measurements.

Q6: What is the standard gap voltage setting and how is it related to the physical gap?
A6: The recommended gap voltage is -9 VDC, which corresponds to a physical gap of approximately 1.27 mm (50 mils).

Q7: What type of environmental protection does the connector system offer?
A7: The ClickLoc connectors with optional connector protectors provide secure, corrosion-resistant, tool-free connections and enhanced environmental sealing.

Q8: Is the 330103 suitable for use in hazardous areas?
A8: Yes, it is certified for hazardous area installations under CSA, ATEX, and IECEx standards when installed with proper barriers or isolators per Bently Nevada guidelines.

3300 XL 8 mm Proximity Probe 330103-00-10-10-02-CN Bently Nevada
