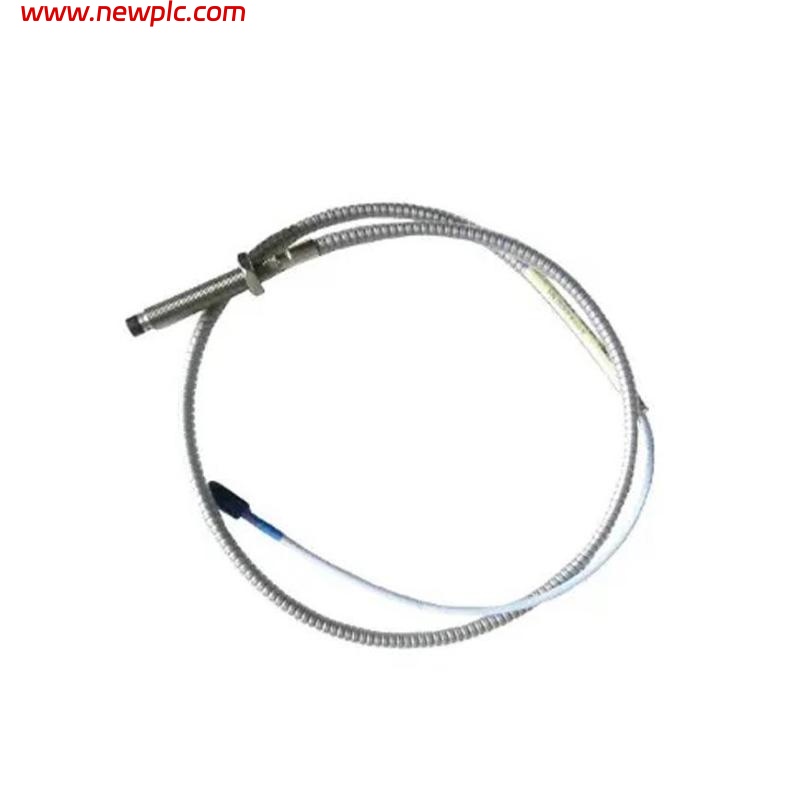

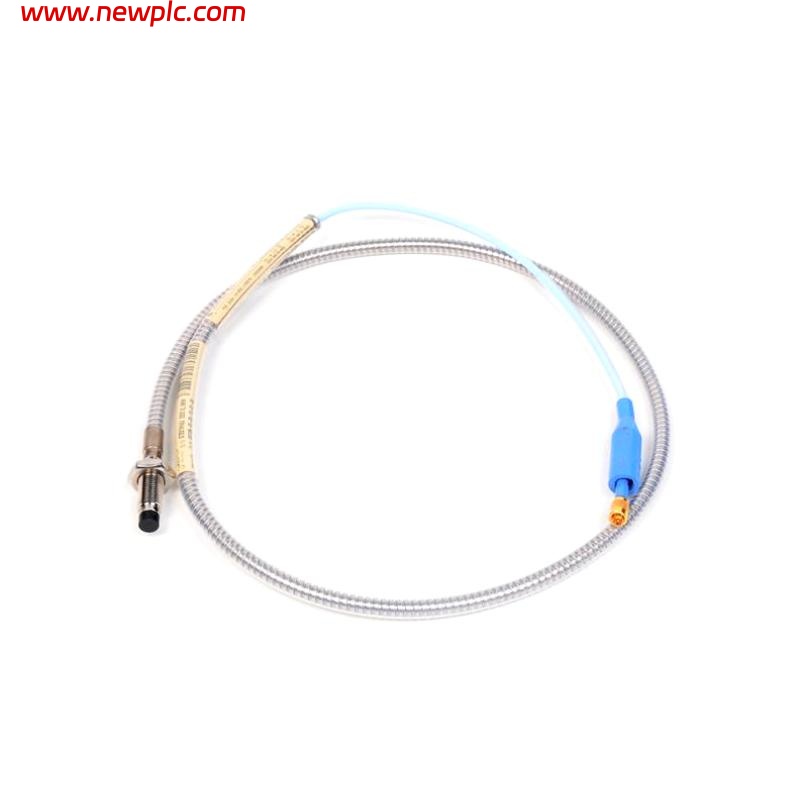

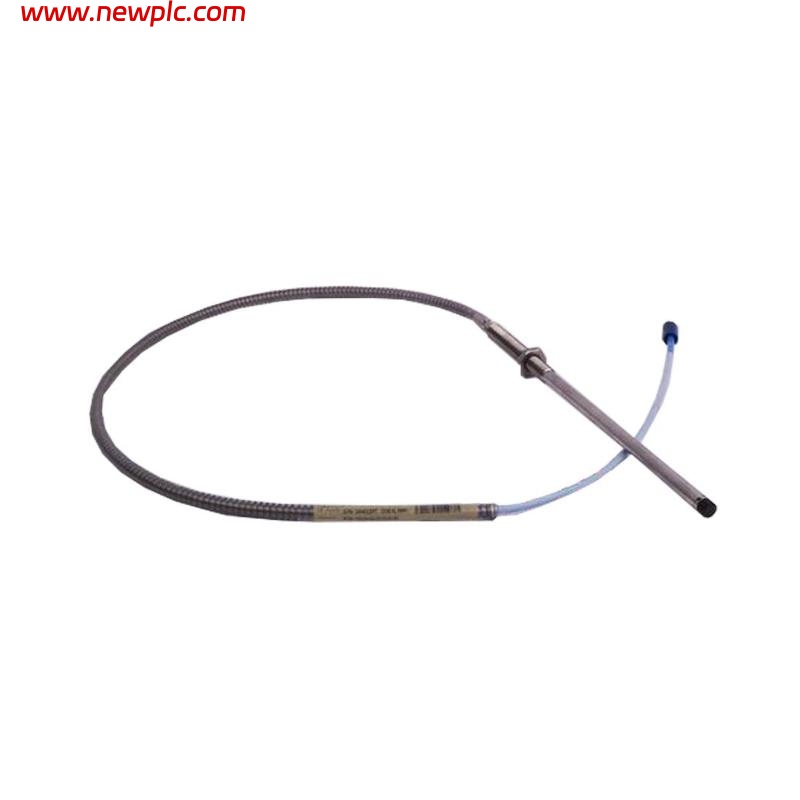

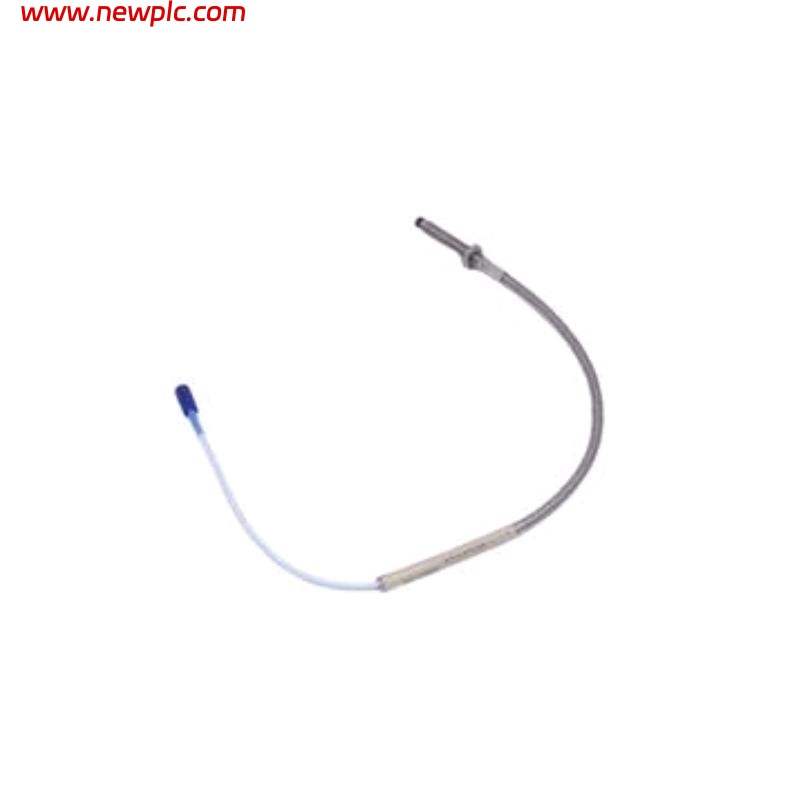

Bently Nevada 330104-02-24-10-01-00 8 mm 3300 XL Eddy-Current Proximity Probe

FAQ

Q1: What is the primary application of the 330104-02-24-10-01-00 probe?
It is used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery such as turbines, compressors, and pumps.

Q2: What do the sections of the model number indicate?
02 = 2 mm unthreaded length, 24 = 240 mm case length, 10 = 1.0 m total system length, 01 = miniature coaxial connector, 00 = no agency approvals.

Q3: What materials are used in the probe?
The tip is PPS, and the housing is stainless steel with armored cable protection.

Q4: What is the operating temperature range?
The probe functions reliably from –52 °C to +177 °C.

Q5: What type of output does the probe provide?
When connected to a 3300 XL Proximitor, it outputs a voltage proportional to the gap between the probe tip and the shaft.

Q6: Does this model have hazardous-area certifications?
No, the “00” code indicates that it does not include any agency or hazardous-area certifications.

Q7: What is the typical measurement sensitivity?
Approximately 200 mV/mil, with a linear measurement range of 0.25–2.5 mm.

Q8: What are the physical dimensions and weight?
The probe has a 240 mm case length, 8 mm tip diameter, and weighs about 0.85 kg including the 1.0 m armored cable.

330104-02-24-10-01-00 Bently Nevada
