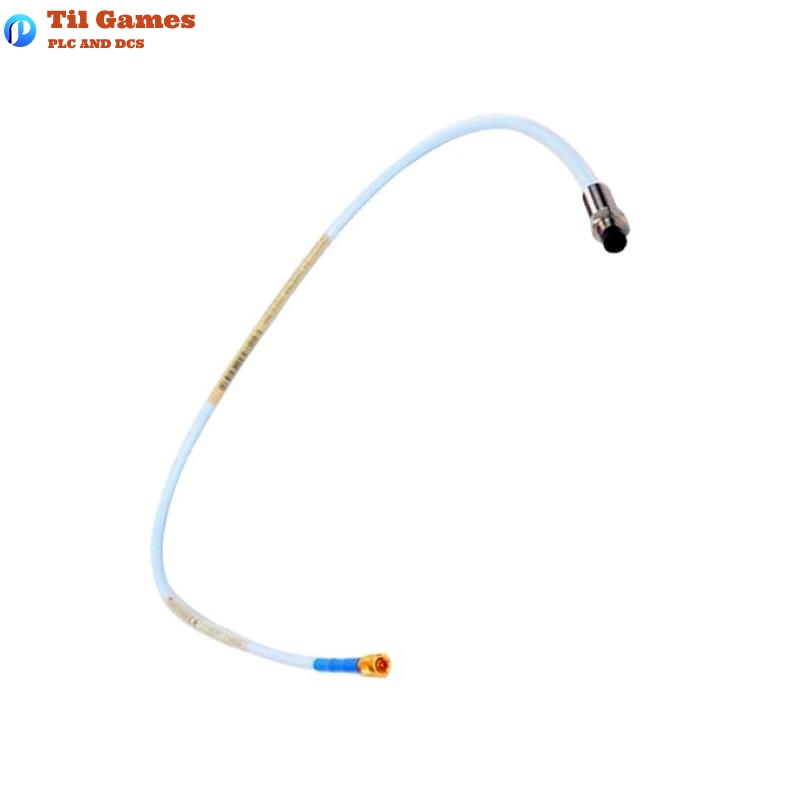

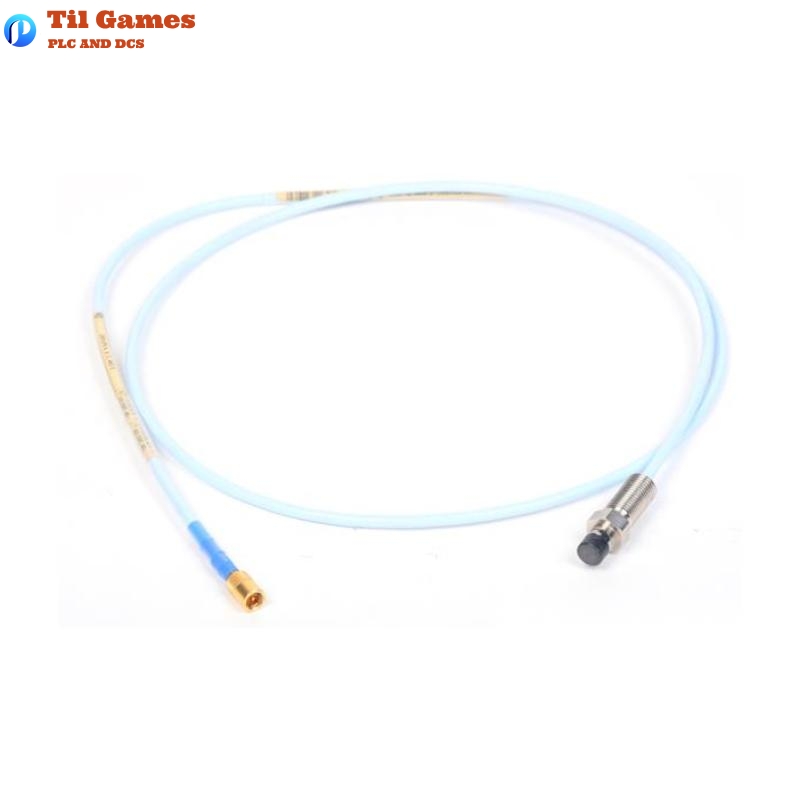

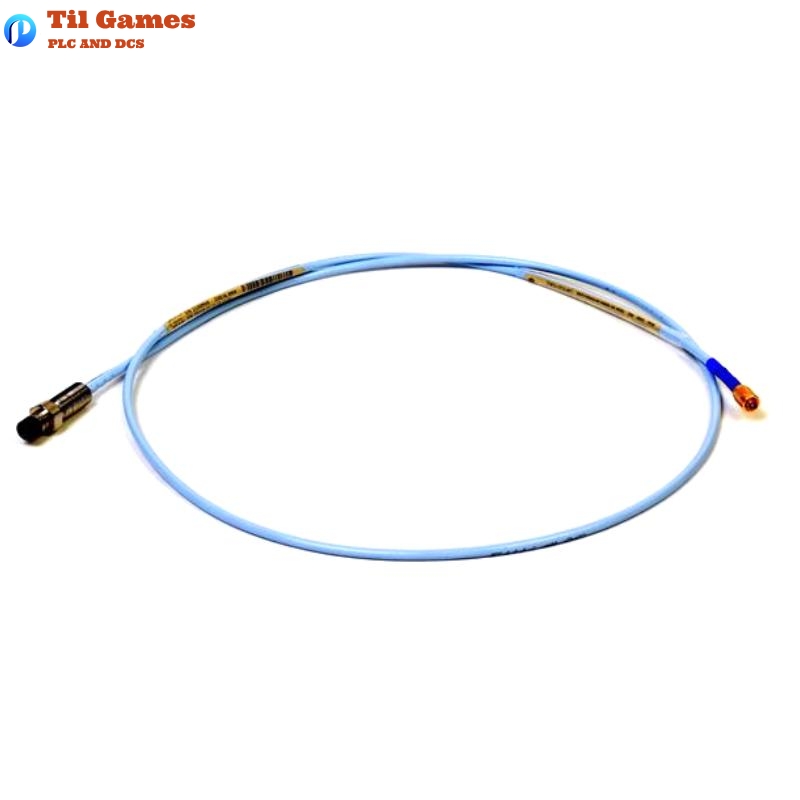

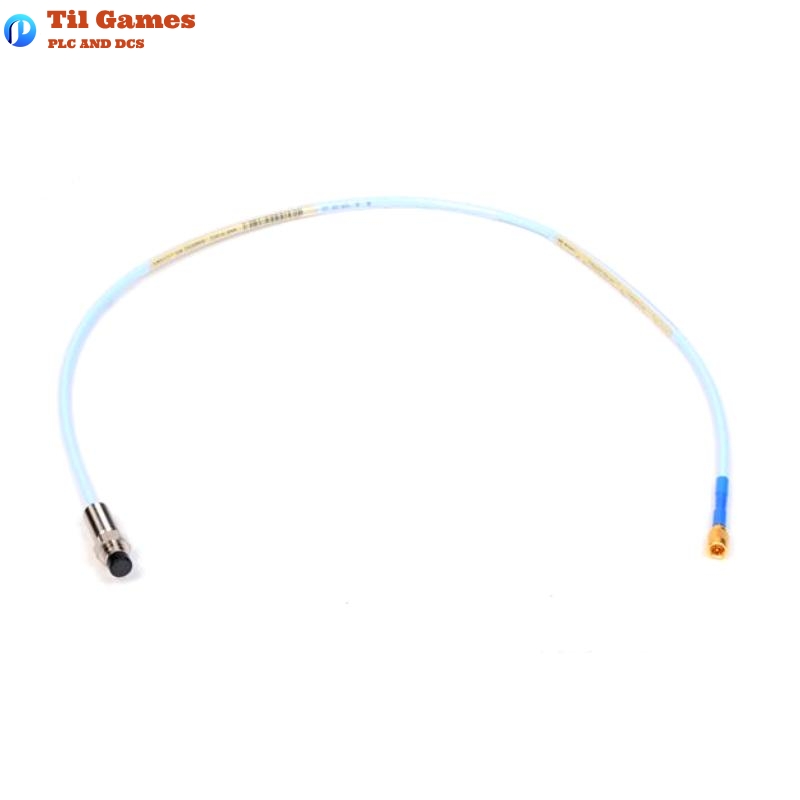

Bently Nevada 330105-02-12-15-12-CN 3300 XL 8 mm Reverse Mount Probe

FAQ

Q1: What is the length and weight of the Bently Nevada 330105-02-12-15-12-CN 3300 XL probe?
A1: The total length of the probe is 1.5 meters (4.9 feet), and its weight is 0.485 kg (1.07 lbs).

Q2: What is the recommended shaft diameter for using the 3300 XL 8 mm probe?
A2: The minimum shaft diameter is 50.8 mm (2 inches), with a recommended diameter of 76.2 mm (3 inches).

Q3: What type of materials are used for the probe tip and case?
A3: The probe tip is made from polyphenylene sulfide (PPS), and the case is made from AISI 303 or 304 stainless steel (SST).

Q4: What is the probe’s operating temperature range?
A4: The operating temperature range is from -52°C to +177°C (-62°F to +350°F).

Q5: How does the 3300 XL probe handle magnetic fields?
A5: The probe operates effectively with magnetic fields up to 300 Gauss without significant interference, maintaining stable output.

Q6: What is the minimum target size for the probe?
A6: The minimum target size is 15.2 mm (0.6 inches) in diameter for flat targets.

Q7: What is the frequency response of the probe?
A7: The frequency response is 0 to 10 kHz, with a ±3 dB range.

Q8: How is the probe mounted?
A8: The 3300 XL probe features a reverse mount design, typically secured with a 3/8-24 UNF thread. It can also be mounted using a M10 x 1 thread option.

3300 XL 8 mm Reverse Mount Probe 330105-02-12-15-12-CN Bently Nevada
