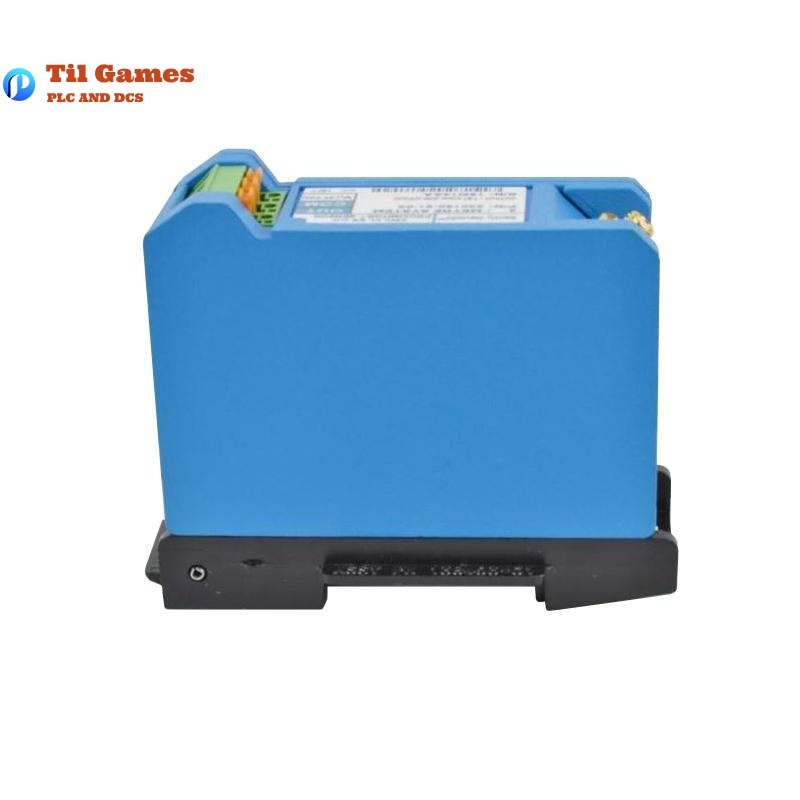

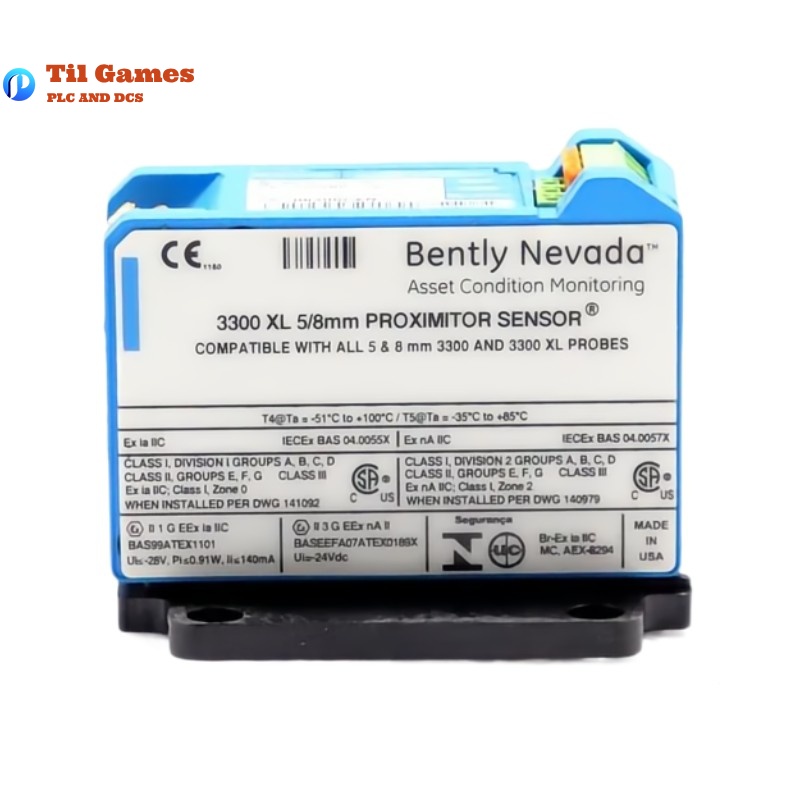

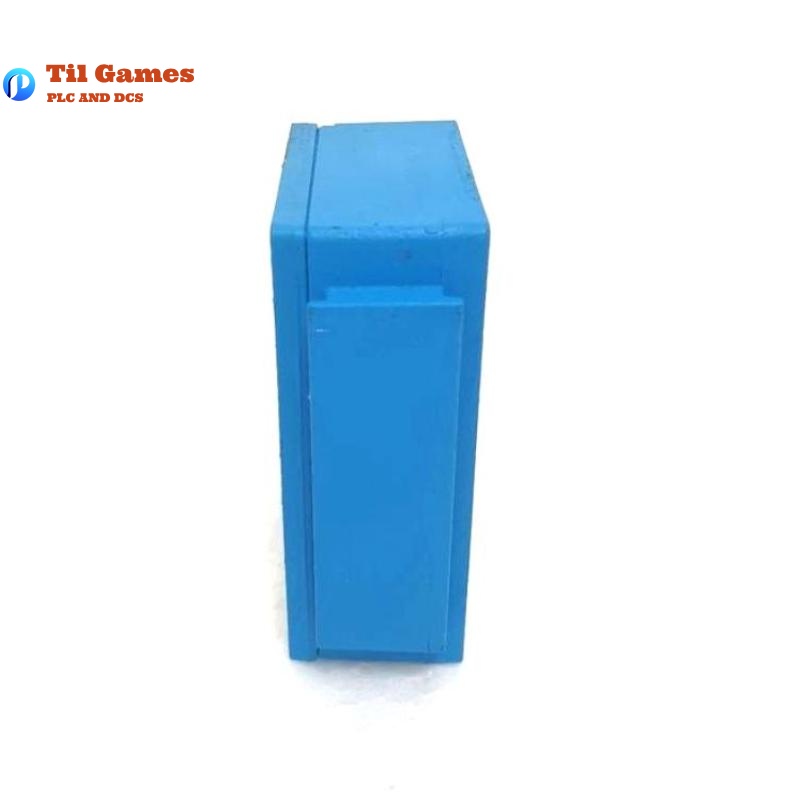

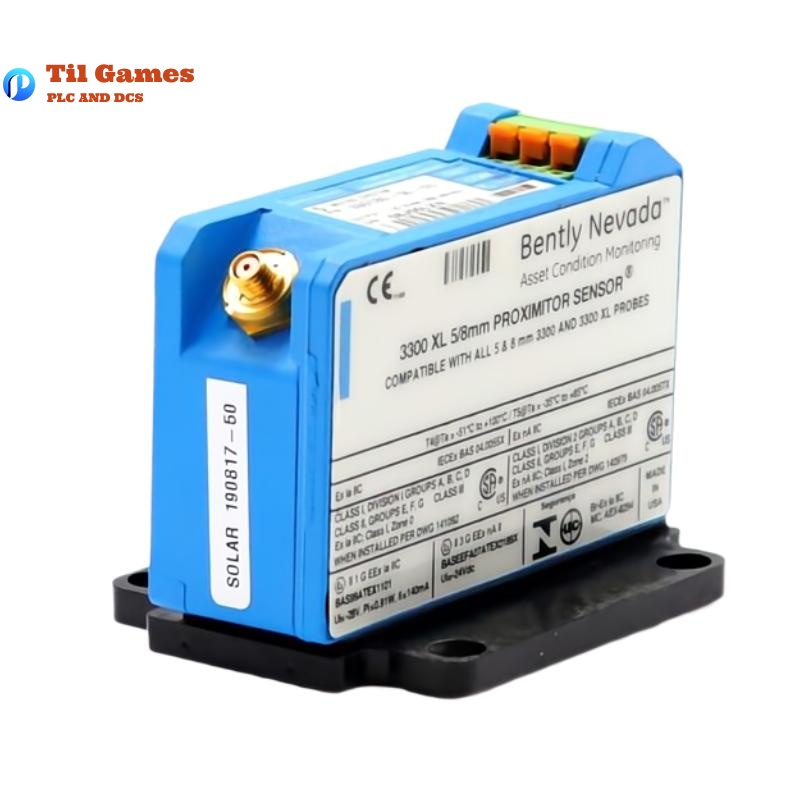

Bently Nevada 330180-50-CN 3300 XL Proximitor Sensor

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 330180-50-CN Proximitor Sensor?
A1: It measures both static (position) and dynamic (vibration) displacement of conductive targets.

Q2: What type of probe does this sensor work with?
A2: It is designed to work with 3300 XL 8 mm proximity probes and extension cables.

Q3: Does the sensor support extended temperature environments?
A3: Yes, it supports probes and cables rated up to 218°C and 260°C respectively (ETR versions).

Q4: Is this sensor compliant with API 670 standard?
A4: Yes, the standard 5-meter system complies with API 670 for mechanical configuration and performance.

Q5: What is the recommended gap voltage setting?
A5: The recommended gap is approximately -9 Vdc, equivalent to 1.27 mm (50 mils).

Q6: Can it be mounted on a DIN rail?
A6: Yes, the Proximitor sensor can be DIN-mounted or panel-mounted using the standard footprint.

Q7: Is it necessary to calibrate individual components before use?
A7: No, all components are fully interchangeable and do not require bench calibration.

Q8: What is the total length and weight of the 330180-50-CN system?
A8: The total length is 5.0 meters, and the total weight is 0.246 kg.

3300 XL Proximitor Sensor 330180-50-CN Bently Nevada
