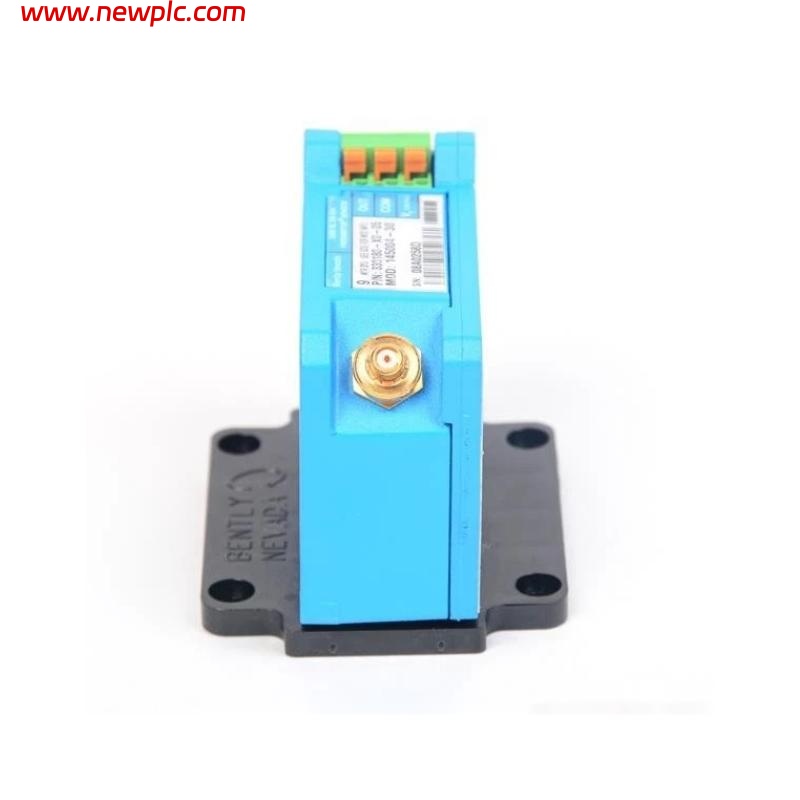

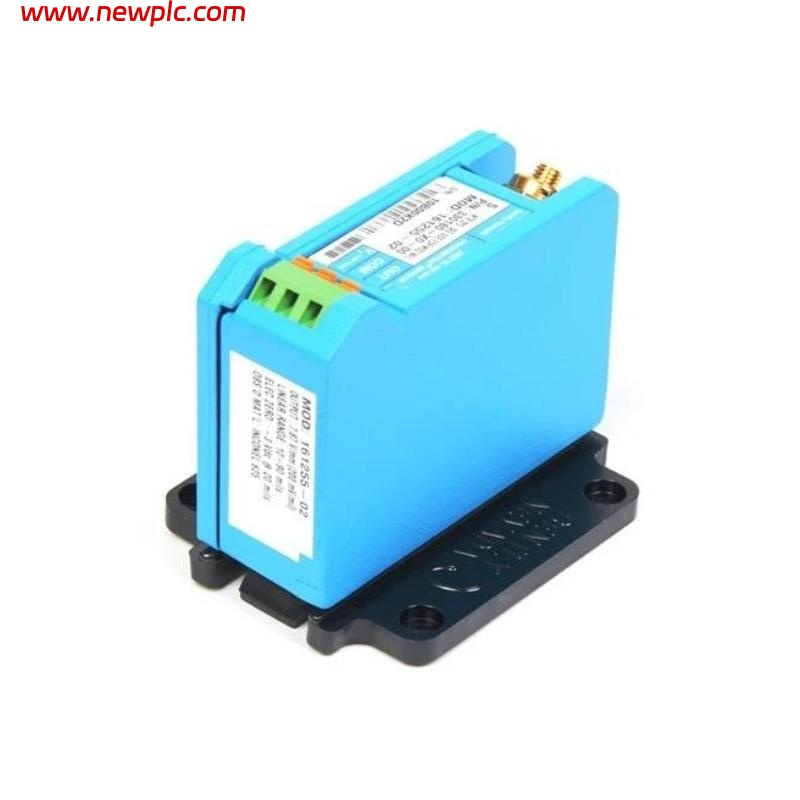

Bently Nevada 330180-X0-05 145655-09 3300 XL Series Proximitor Sensor

FAQ

Q1: What is the Bently Nevada 330180-X0-05 used for?
A1: It is a proximitor sensor used to condition and convert signals from eddy-current proximity probes for shaft vibration and displacement monitoring.

Q2: What does the internal code 145655-09 indicate?
A2: It is an internal manufacturer reference related to calibration, configuration, or probe pairing for this specific proximitor version.

Q3: Which proximity probes are compatible with this proximitor sensor?
A3: It is compatible with 3300 and 3300 XL Series proximity probes in both 5 mm and 8 mm diameters.

Q4: What type of output signal does this sensor provide?
A4: The sensor provides an analog voltage output proportional to the measured gap or displacement.

Q5: What power supply is required for this proximitor sensor?
A5: It operates on a negative DC supply between −17.5 VDC and −26 VDC, with 24 VDC being typical in industrial systems.

Q6: What operating temperature range does this sensor support?
A6: It is designed to operate reliably in environments from −40 °C to +100 °C.

Q7: Is additional equipment required to use this proximitor sensor?
A7: Yes, a compatible proximity probe, optional extension cable, and monitoring or data acquisition electronics are required to complete the measurement system.

Q8: Where is this proximitor sensor typically installed?
A8: It is typically mounted on a panel or DIN rail inside a control cabinet as part of a machinery protection or condition monitoring system.

145655-09 330180-X0-05 Bently Nevada
