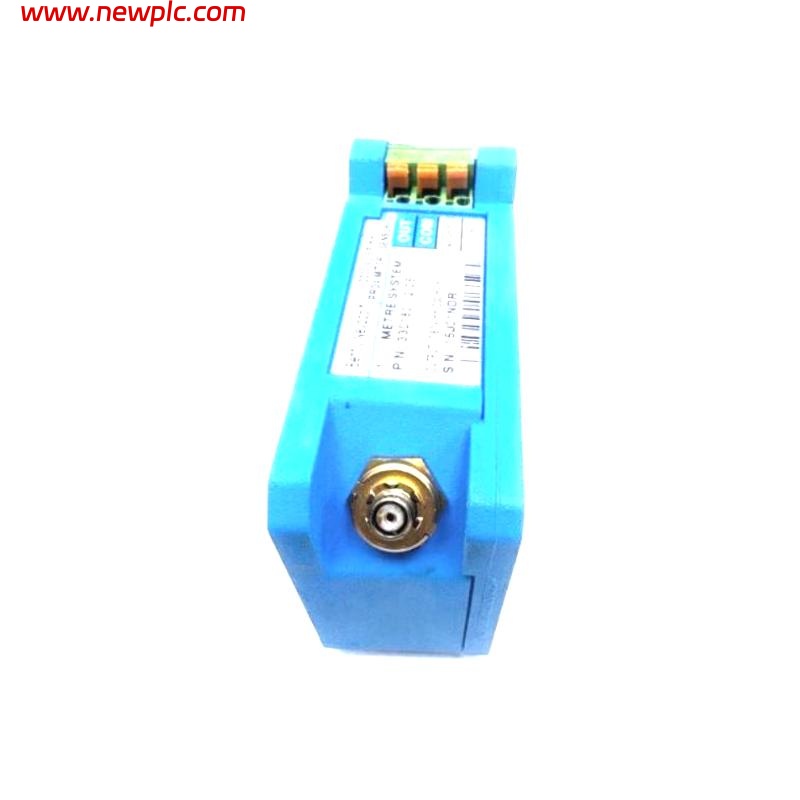

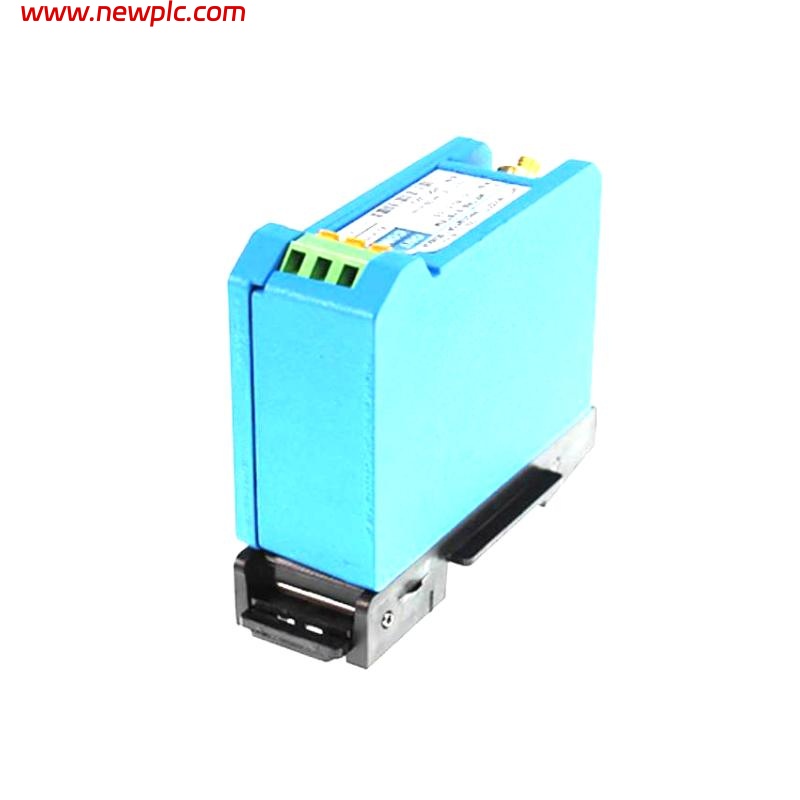

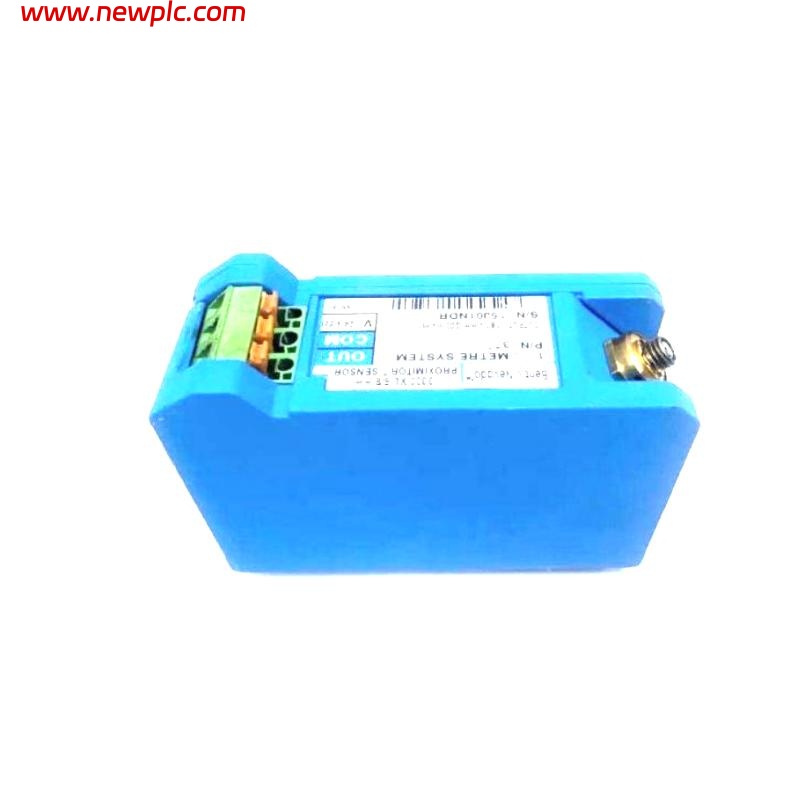

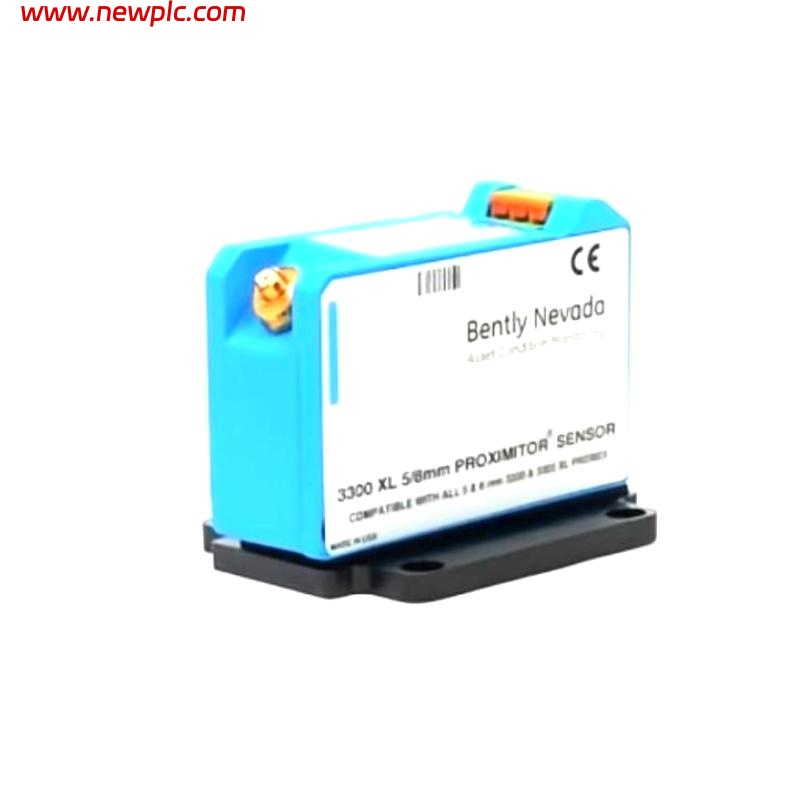

Bently Nevada 330180-X1-05 167066-01 3300 XL Proximitor Sensor

FAQ

Q1: What type of sensor is the 330180-X1-05?
A1: It is a Bently Nevada 3300 XL Proximitor Sensor for non-contact vibration and displacement measurement.

Q2: What are the primary applications for this sensor?
A2: It is used for vibration and position monitoring in fluid-film bearing machinery and for Keyphasor reference and speed measurement.

Q3: Is it compliant with API 670 standards?
A3: Yes, it meets API 670 mechanical configuration, linear range, accuracy, and temperature stability requirements.

Q4: Is it compatible with older 3300 series components?
A4: Yes, it is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.

Q5: What is the maximum supported field wiring length?
A5: Up to 305 meters (1000 feet) from the Proximitor Sensor to the monitoring system.

Q6: Does it have EMI/RFI protection?
A6: Yes, it has enhanced EMI/RFI immunity that meets CE mark requirements.

Q7: Are high-temperature versions available?
A7: Yes, Extended Temperature Range (ETR) versions are available, supporting up to +260°C.

Q8: Do probe, cable, and sensor components need to be matched?
A8: No, 3300 XL components are fully interchangeable without matching or bench calibration.

167066-01 3300 XL Proximitor Sensor 330180 330180-X1-05 Bently Nevada
