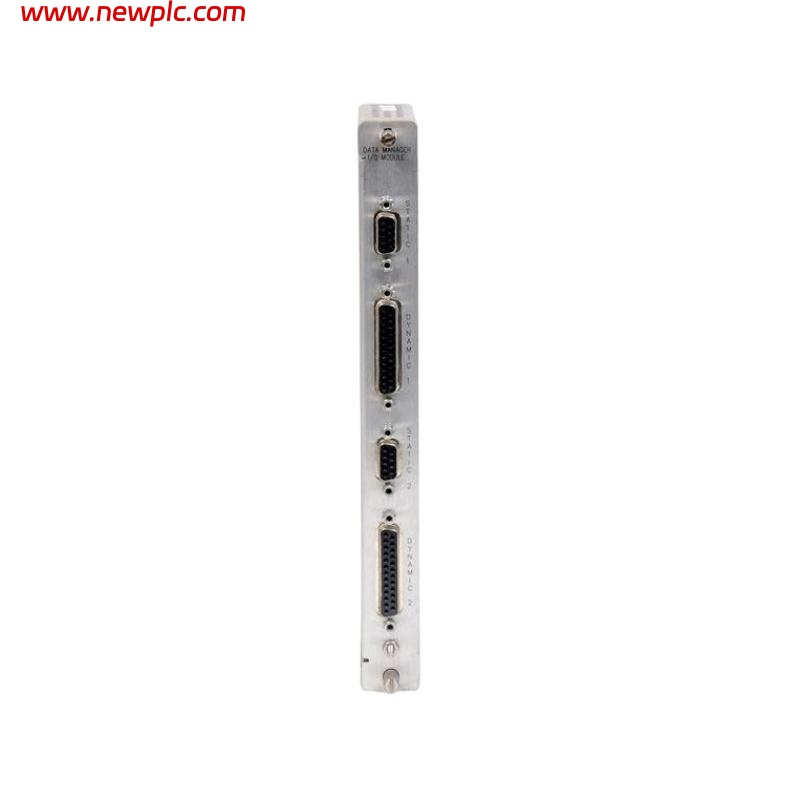

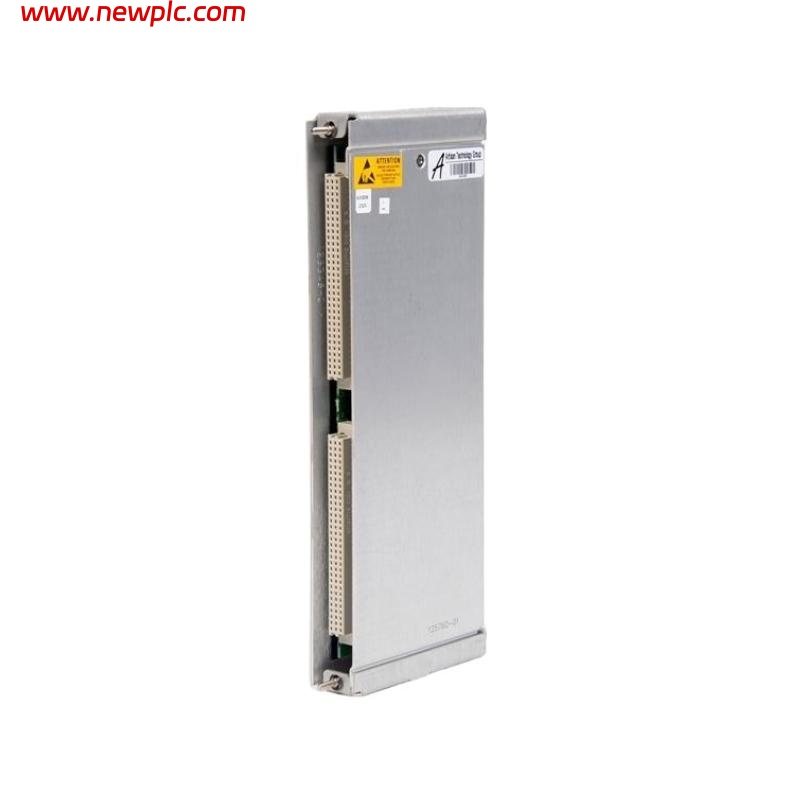

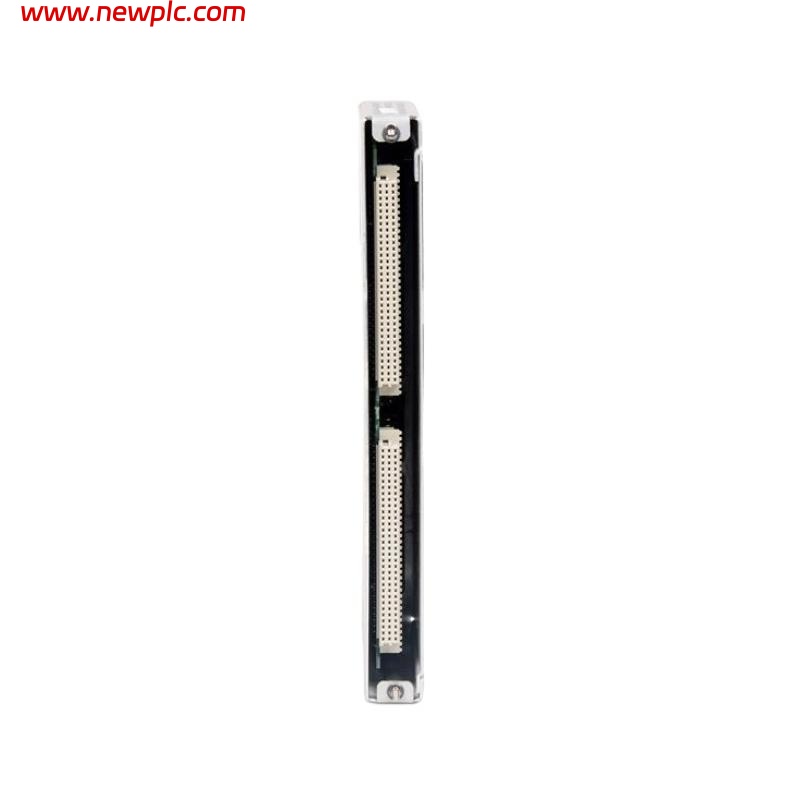

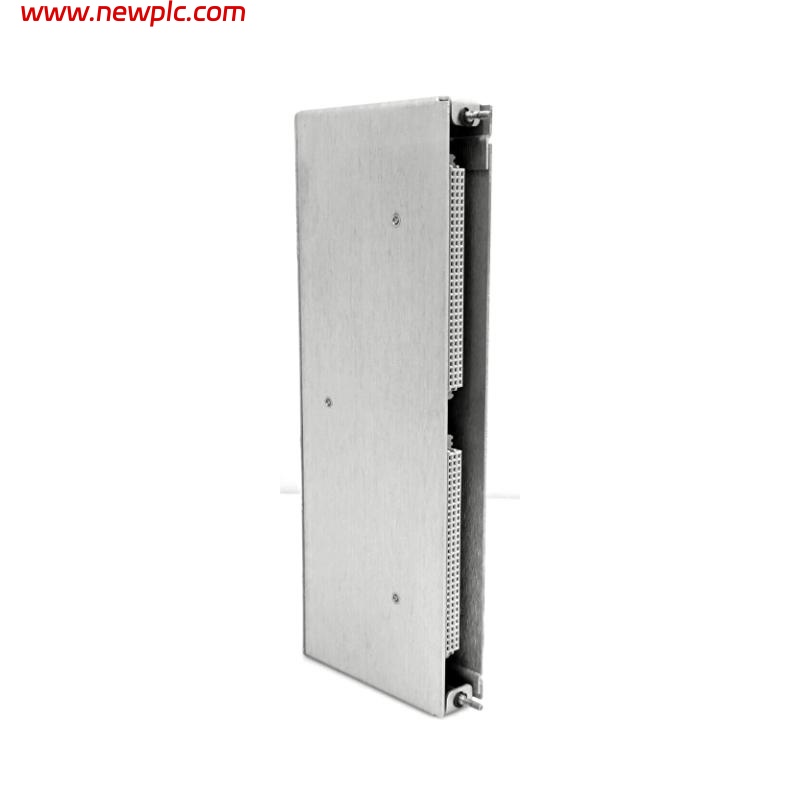

Bently Nevada 3500/20 125760-01 Data Manager I/O Module

FAQ

• Q1: What is the primary function of the 125760-01 Data Manager I/O Module?
  A1: It serves as the primary interface between the 3500 rack system and external communication processors, enabling configuration and data retrieval for machinery monitoring.

• Q2: Which slot must this module be installed in?
  A2: Slot 1 of the 3500/20 rack, adjacent to the power supply modules.

• Q3: Can the 125760-01 module be used in TMR configurations?
  A3: Yes, it supports Triple Modular Redundant (TMR) configurations, performing monitor channel comparison and voting to ensure system reliability.

• Q4: What types of communication does the module support?
  A4: RS232/RS422 serial communication up to 38.4 kbaud and internal modem communication up to 14.4 kbaud.

• Q5: How does the module indicate its operational status?
  A5: Through front panel LEDs: OK (normal operation), TX/RX (communication activity), TM (Trip Multiply), CONFIG OK (valid configuration), and I/O Module OK relay.

• Q6: What is the operating temperature range for this module?
  A6: -30°C to 65°C (-22°F to 150°F).

• Q7: How are rack addresses configured on the module?
  A7: Using the address switch, allowing up to 63 possible addresses.

• Q8: How does the configuration keylock function?
  A8: It switches between “RUN” mode for normal operation and “PROGRAM” mode to allow configuration changes.
