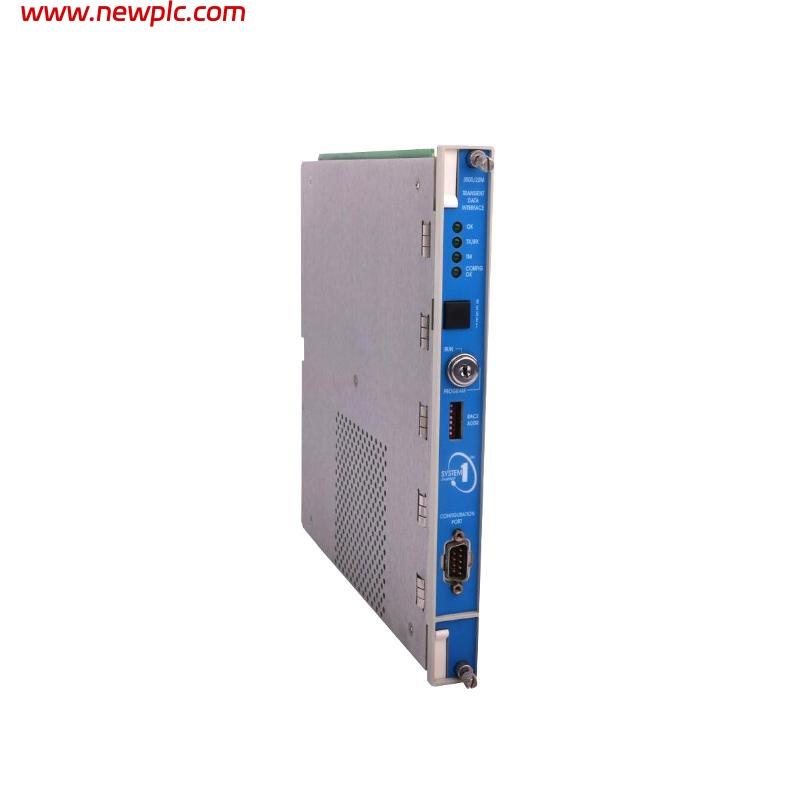

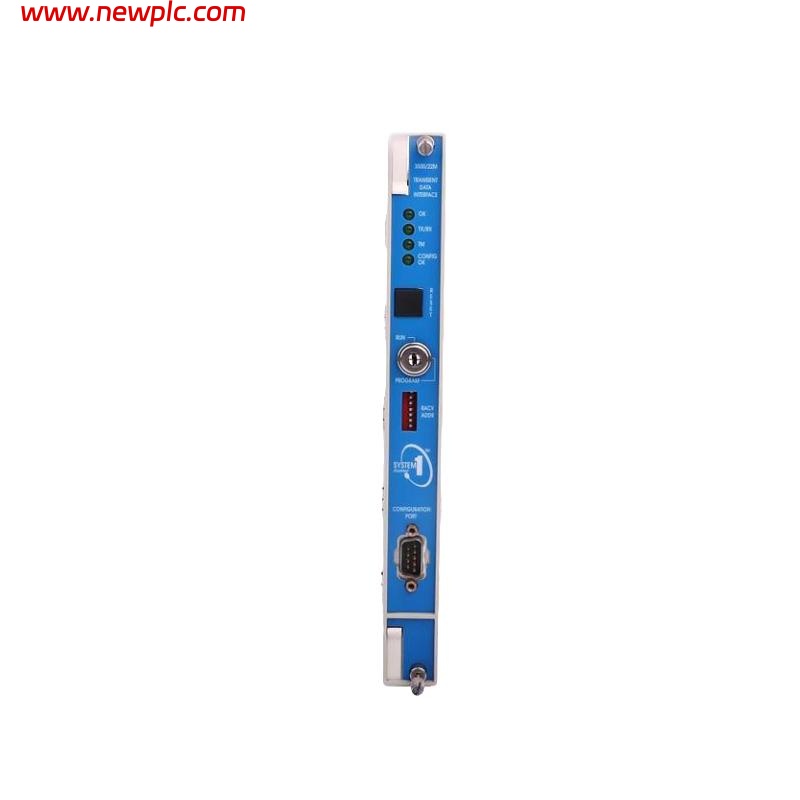

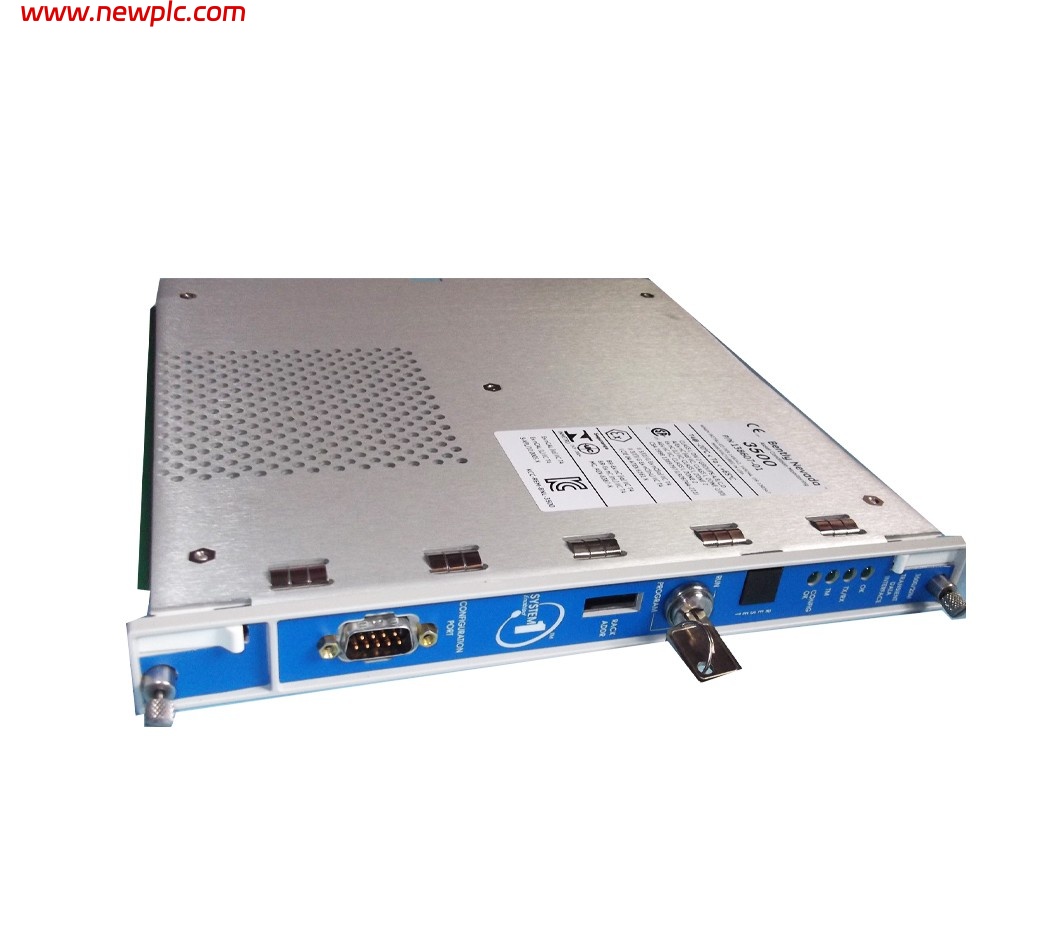

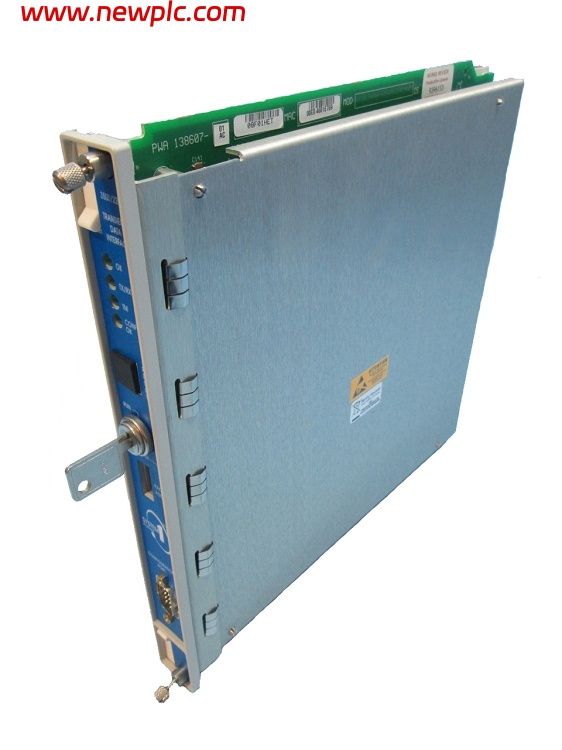

Bently Nevada 3500/22-01-01-01 3500/22 Transient Data Interface (TDI) Module

FAQ

Q1: What is the function of the 3500/22-01-01-01 module?
It serves as the main communications interface between the 3500 monitoring system and external devices, enabling data transfer and system configuration.

Q2: What does “01-01-01” in the model number signify?
The sequence identifies configuration details such as Ethernet communication type, data protocol, and firmware compatibility.

Q3: How does this module connect to external systems?
It connects via Ethernet (10/100 Mbps) and supports Modbus TCP/IP and Bently Nevada proprietary communication protocols.

Q4: Can this module be used with any 3500 rack?
Yes, it is compatible with standard Bently Nevada 3500 racks and installs in the TDI slot position.

Q5: Is the TDI module required for System 1® software integration?
Yes, it acts as the data gateway, allowing System 1® to access real-time and historical data from the 3500 system.

Q6: How is the module powered?
The module receives power directly from the 3500 rack backplane and does not require an external supply.

Q7: What environmental conditions can it operate under?
It operates reliably from 0 °C to +65 °C and can be stored from -40 °C to +85 °C with up to 95% non-condensing humidity.

Q8: What are the dimensions and weight of this module?
241 mm × 25 mm × 241 mm (9.5 in × 1.0 in × 9.5 in) ; Weight: ≈ 0.30 kg.
