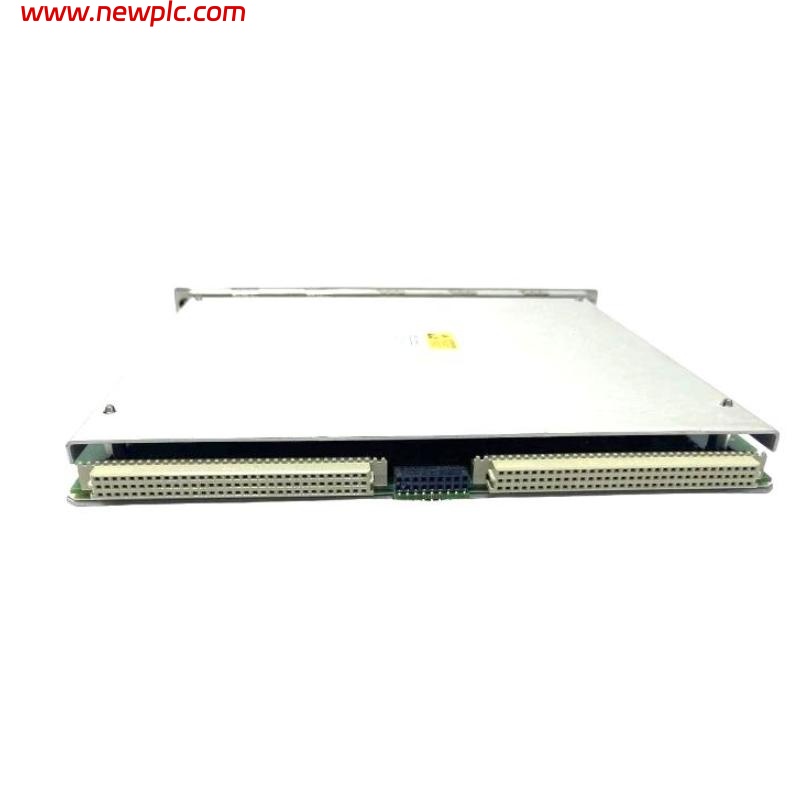

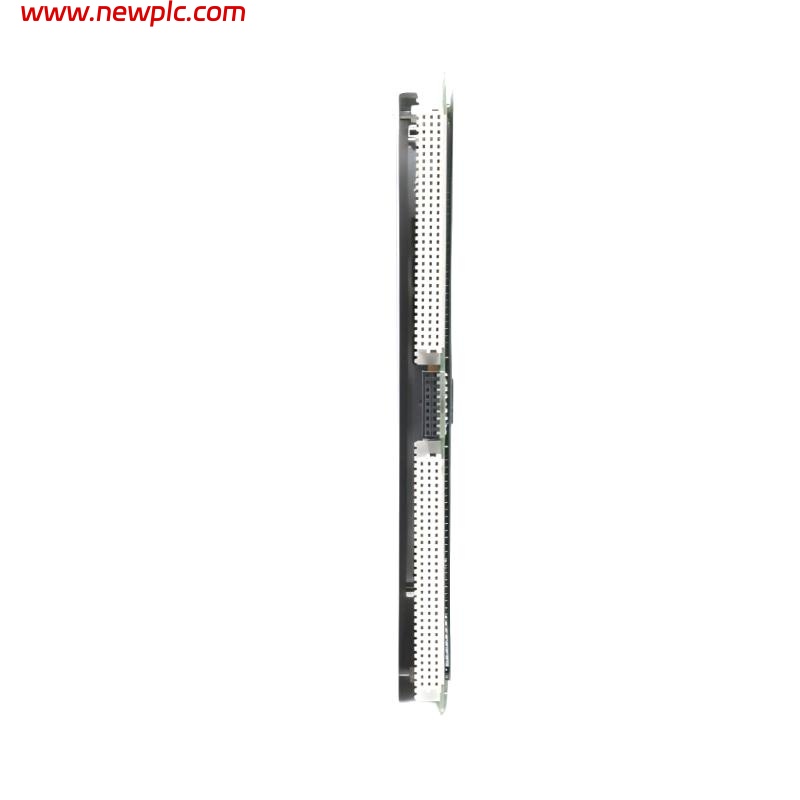

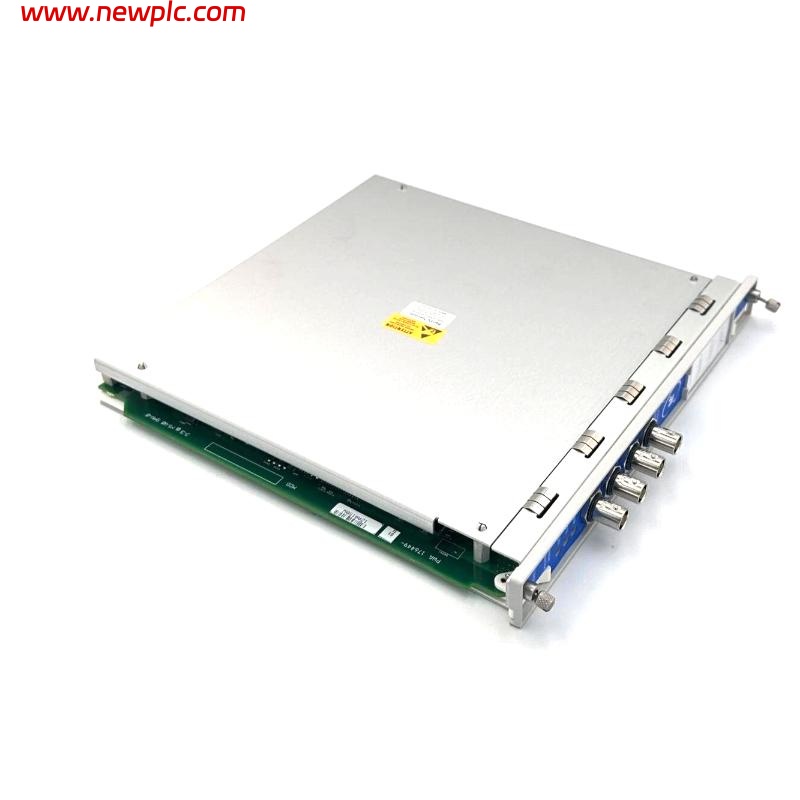

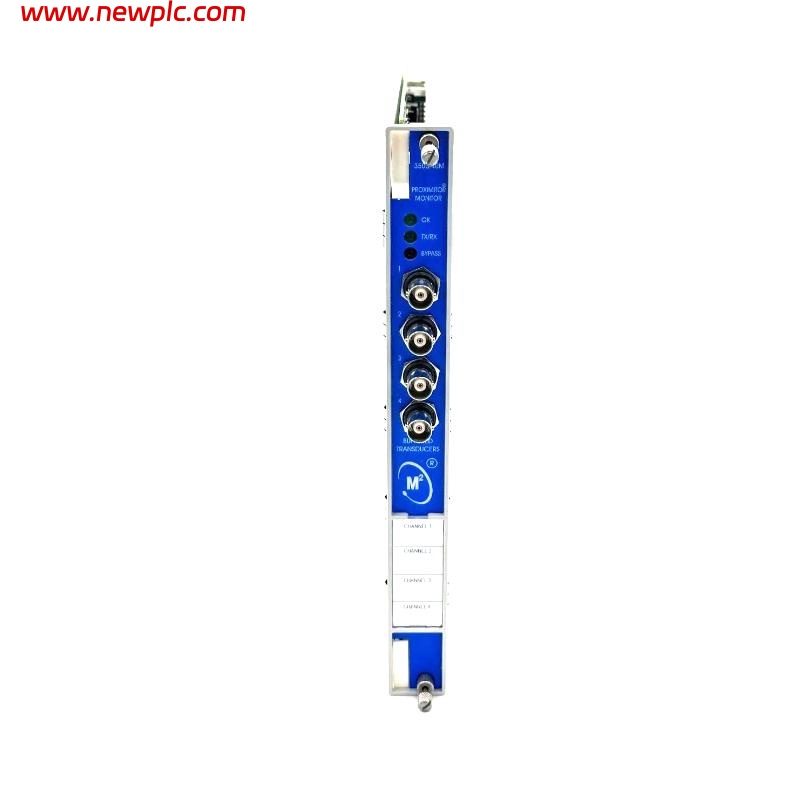

Bently Nevada 3500/40 176449-01 Four-Channel Proximitor Monitor

FAQ

Q1: What is the main function of the Bently Nevada 3500/40 176449-01?
A1: It monitors vibration and position parameters from proximity transducers and triggers alarms when readings exceed configured setpoints.

Q2: How many channels does this monitor support?
A2: It supports four independent channels, which can be configured in pairs to perform up to two different monitoring functions.

Q3: What measurement modes are supported?
A3: Radial vibration, thrust position, differential expansion, eccentricity, and REBAM.

Q4: What is the required power consumption?
A4: Typical power consumption is 7.7 W.

Q5: What is the accuracy level of the measurements?
A5: Most measurements are accurate within ±0.33% of full-scale (typical) or ±1% (maximum).

Q6: What are the operating temperature limits?
A6: -30°C to +65°C for Internal/External Termination I/O modules, and 0°C to +65°C for Internal Barrier I/O modules.

Q7: What is the output impedance for buffered transducer outputs?
A7: 550 Ω.

Q8: What are the physical dimensions and weight?
A8: Dimensions are 241.3 × 24.4 × 241.8 mm, and the weight is 0.91 kg.

176449-01 3500/40 Bently Nevada Four-Channel Proximitor Monitor
