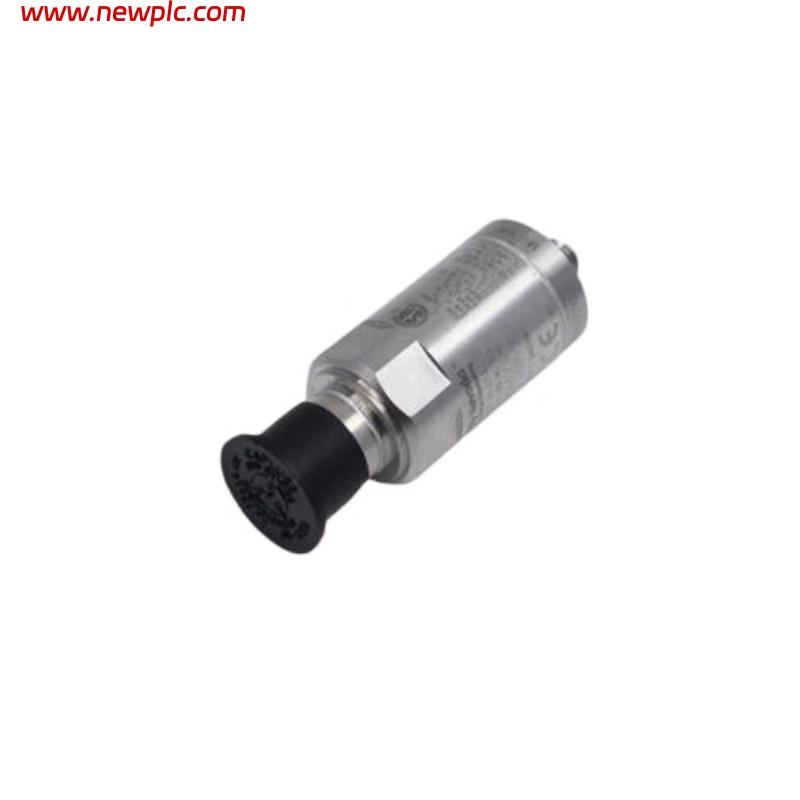

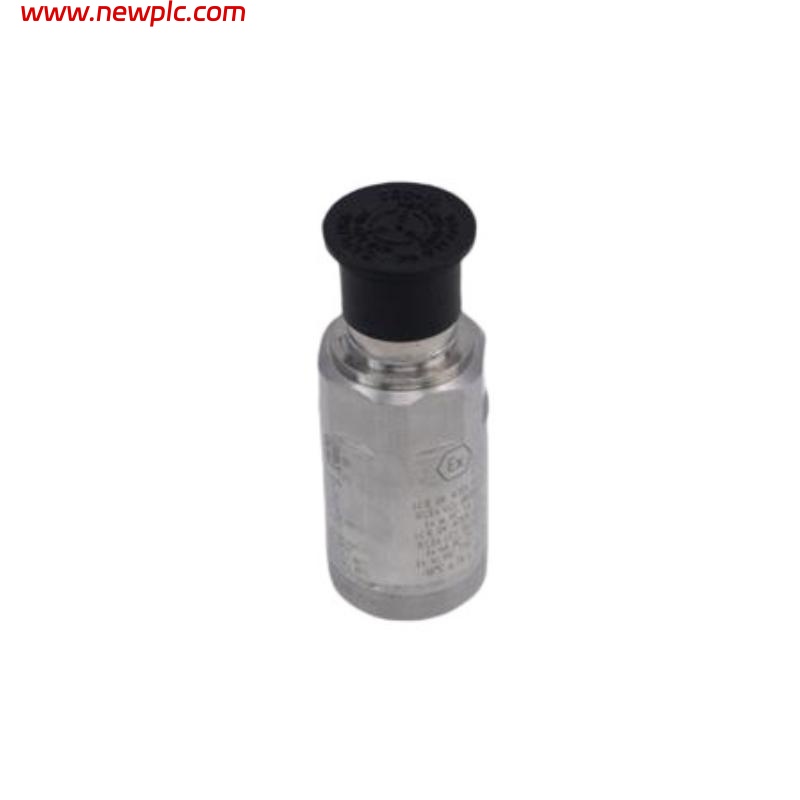

Bently Nevadac 330500-01-05 Velomitor Piezoelectric Velocity Sensor

FAQ

Q1: What is the main purpose of the 330500-01-05 Velomitor?
A1: It is used to measure machine vibration and monitor the operating condition of rotating machinery.

Q2: What is the sensor’s sensitivity?
A2: The sensitivity is 100 mV/in/sec (nominal).

Q3: What is the frequency response range?
A3: The frequency range is 10 Hz – 1 kHz, suitable for most vibration monitoring applications.

Q4: What are the power requirements?
A4: It requires a constant current supply of 2 – 10 mA at 18 – 30 VDC.

Q5: How is the sensor mounted?
A5: It is mounted using a threaded connection for secure installation.

Q6: What is the housing material?
A6: The housing is made of stainless steel, ensuring durability and corrosion resistance.

Q7: What is the operating temperature range?
A7: The sensor operates between -30 °C and +120 °C.

Q8: What are the dimensions and weight?
A8: The diameter 25.3 mm, and the weight is approximately 0.142 kg.

330500-01-05 Bently Nevadac Velomitor Piezoelectric Velocity Sensor
