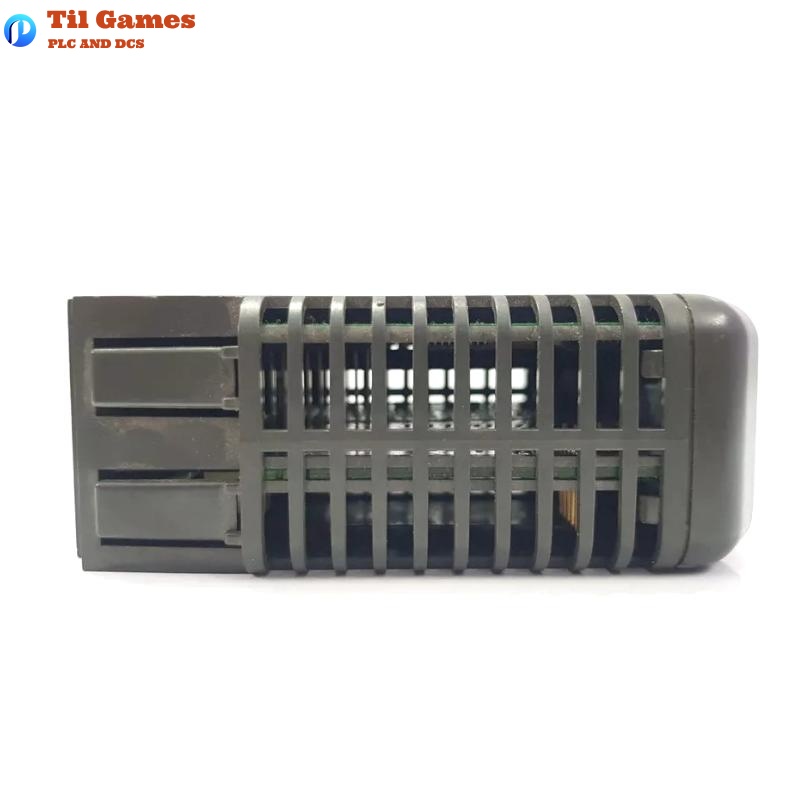

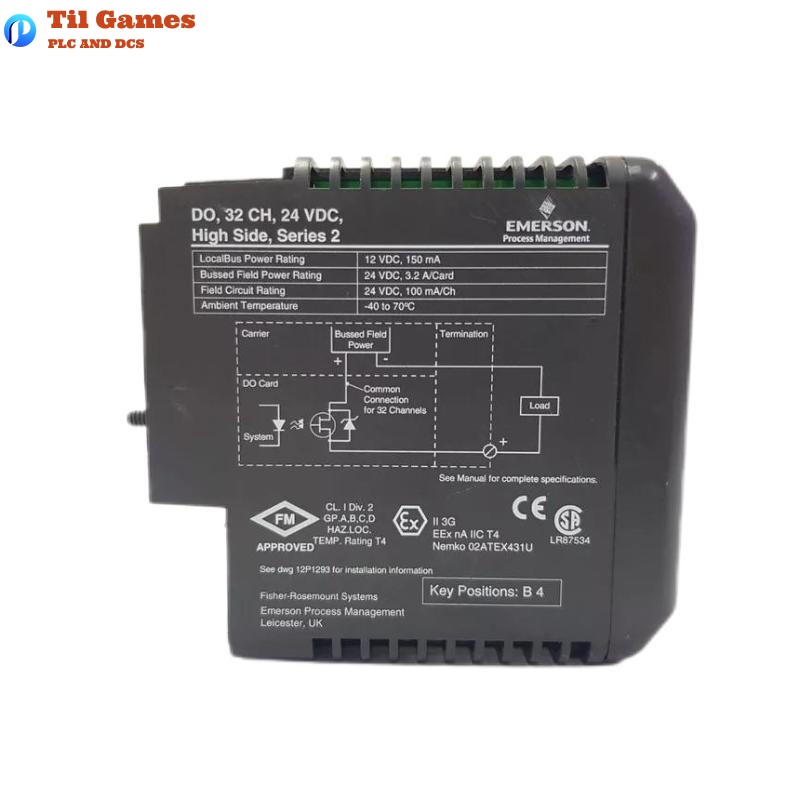

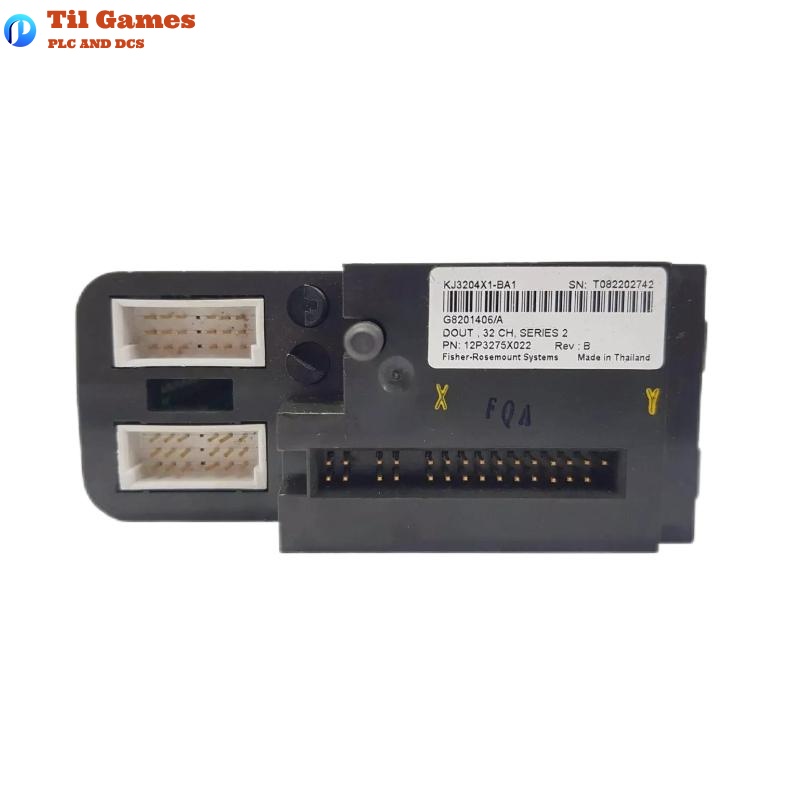

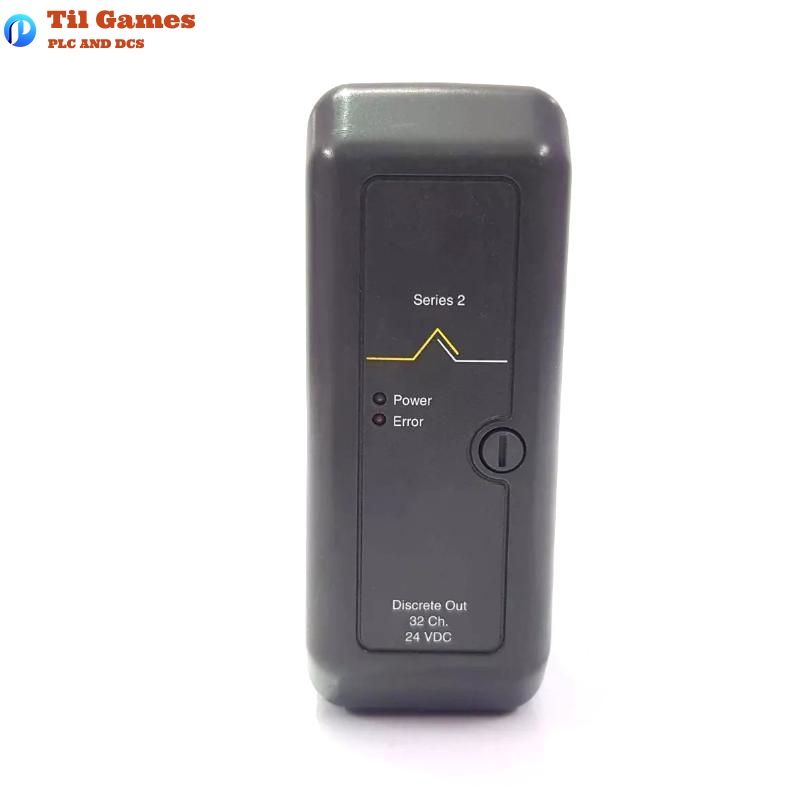

Emerson KJ3204X1-BA1 32-Channel 24 VDC High-Side Digital Output Module

Frequently Asked Questions (FAQ)

Q1: How many output channels does the KJ3204X1-BA1 module support?
A1: It supports 32 individual high-side 24VDC digital output channels.

Q2: What type of industrial environment is this module suitable for?
A2: It is designed for Zone 2 hazardous environments with vibration, shock, and contaminant resistance.

Q3: Is hot-swapping allowed for this module?
A3: No, hot-swapping is not permitted unless the area is non-hazardous and only one module is removed/inserted at a time.

Q4: Does this module require calibration?
A4: No, the module does not require calibration during its lifecycle.

Q5: Can the module drive inductive loads directly?
A5: As a high-side driver, it suits most digital applications. For inductive loads, external protection may be needed.

Q6: What is the total current capacity of the module?
A6: The card supports a total current of up to 3.2 A (24VDC) with a maximum of 100 mA per channel.

Q7: Are there any wiring constraints for this module?
A7: Yes, the terminal block must be keyed to B4 to match the module.

Q8: Can the module be disassembled for repair?
A8: No, it contains no user-serviceable parts. Faulty units should be replaced entirely.

32-Channel 24 VDC High-Side Digital Output Module Emerson KJ3204X1-BA1
