Technical Specifications
| Parameter | Specification |
|---|---|

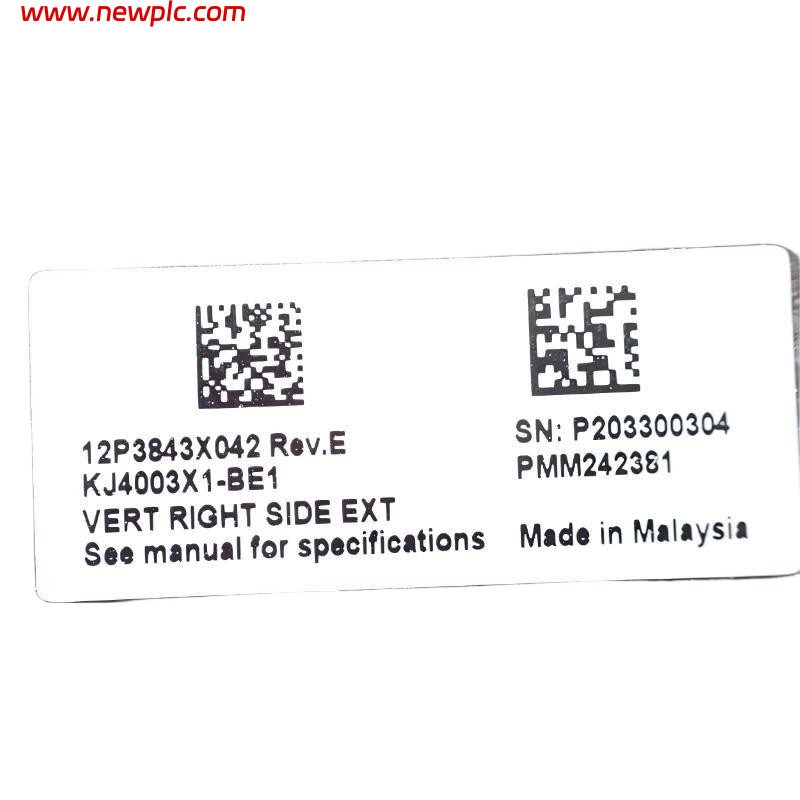

| Model Number | KJ4003X1-BE1 |
| Manufacturer | Emerson |
| Product Series | DeltaV™ VerticalPlus |

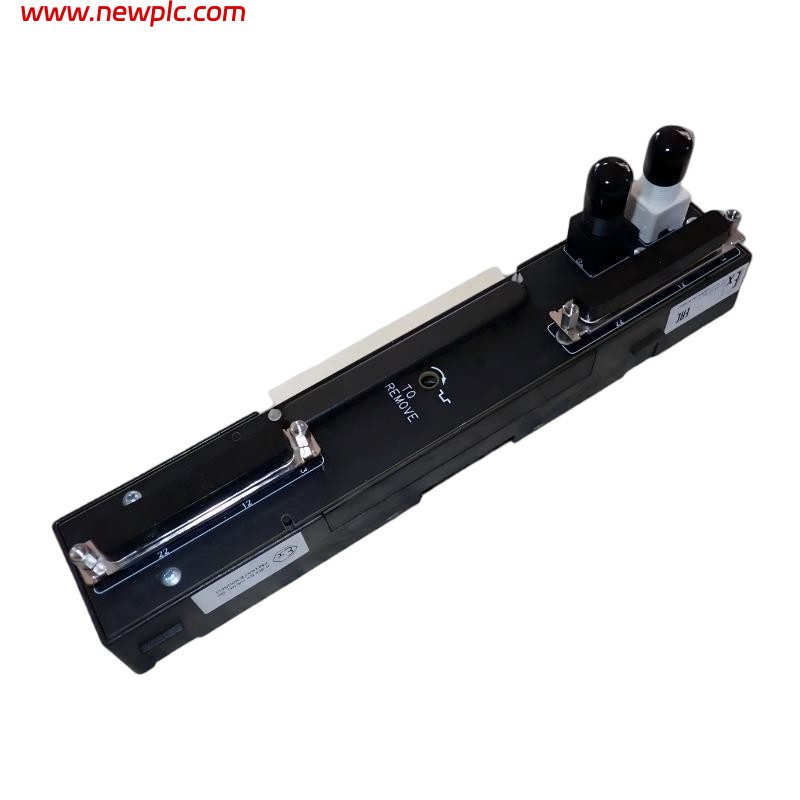

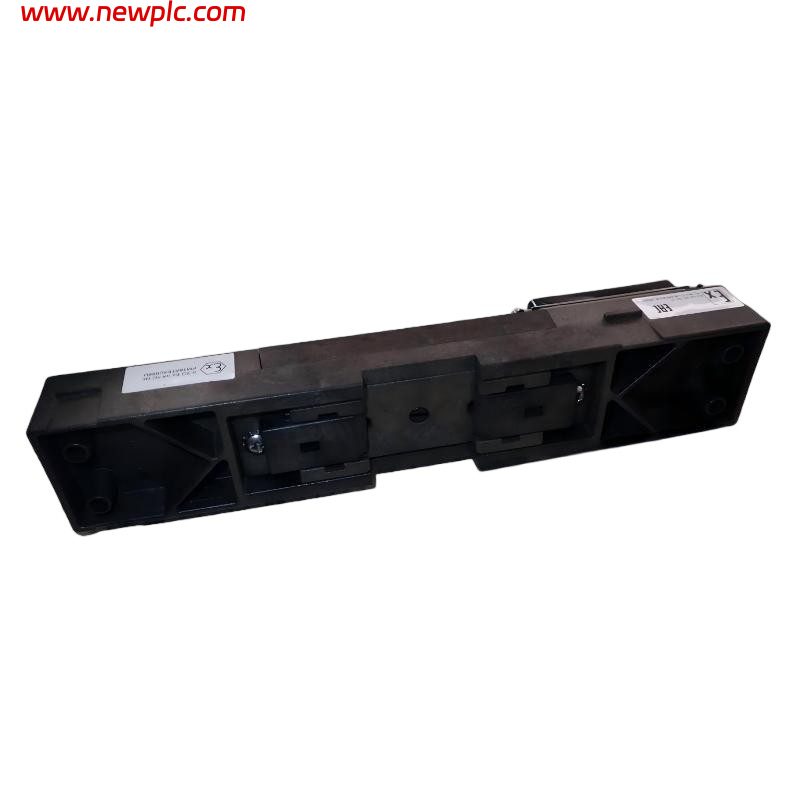

| Product Type | 8-Wide VerticalPlus Top Extender Carrier |
| Application | DeltaV Distributed Control System (DCS) |
| Carrier Function | Provides top-level LocalBus extension for I/O modules |
| LocalBus Power | 12.6 VDC at 15 A |
| Maximum Network Length | Up to 6.5 m with LocalBus extender modules |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 10 g, ½ sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz |
| Airborne Contaminant Rating | ISA-S71.04-1985 Class G3 |
| Protection Rating | IP20 |
| Hazardous Area Approval | Class I, Division 2 / Zone 2 |
| Mounting Type | Cabinet / Rack Mount |
| Maintenance | No user-serviceable parts |
| Calibration | Not required |
| Dimensions (L × W × H) | Approximately 300 mm × 220 mm × 30 mm |
| Weight | Approximately 0.4 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Emerson KJ4003X1-BE1 used for?
It is a Top Extender Carrier designed to extend LocalBus communication and power to the top of a VerticalPlus I/O module stack in DeltaV systems.
Q2: How many I/O modules can the carrier support?
It is 8-wide, allowing connections for multiple VerticalPlus I/O modules depending on system architecture.
Q3: What are the dimensions of the KJ4003X1-BE1?
The carrier measures approximately 300 mm × 220 mm × 30 mm.
Q4: How much does the KJ4003X1-BE1 weigh?
It weighs around 0.4 kg, making it easy to handle and install.
Q5: What power specifications are supported?
The carrier supports LocalBus power at 12.6 VDC with a maximum current of 15 A.
Q6: Can the KJ4003X1-BE1 operate in harsh environments?
Yes. It operates from -40°C to +70°C and supports 5%–95% relative humidity, non-condensing.
Q7: Is the carrier suitable for hazardous areas?
Yes, it is certified for Class I Division 2 and Zone 2 hazardous locations per Emerson installation guidelines.
Q8: Does the KJ4003X1-BE1 require maintenance or calibration?
No routine maintenance or calibration is required; it contains no user-serviceable components.
