Technical Specifications
| Parameter | Specification |
|---|---|

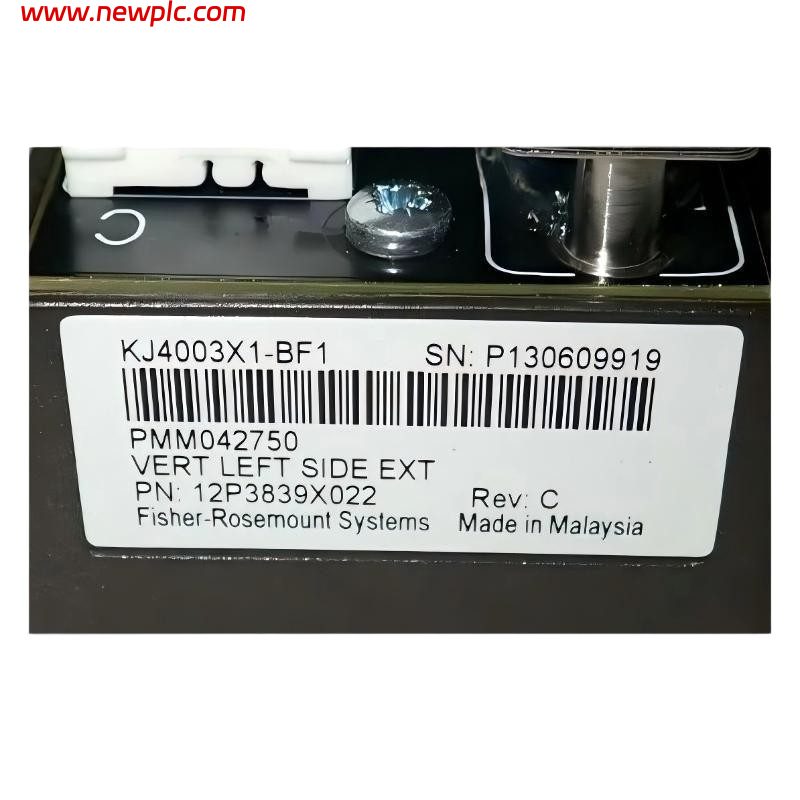

| Model Number | KJ4003X1-BF1 |
| Manufacturer | Emerson |
| Product Series | DeltaV™ VerticalPlus |

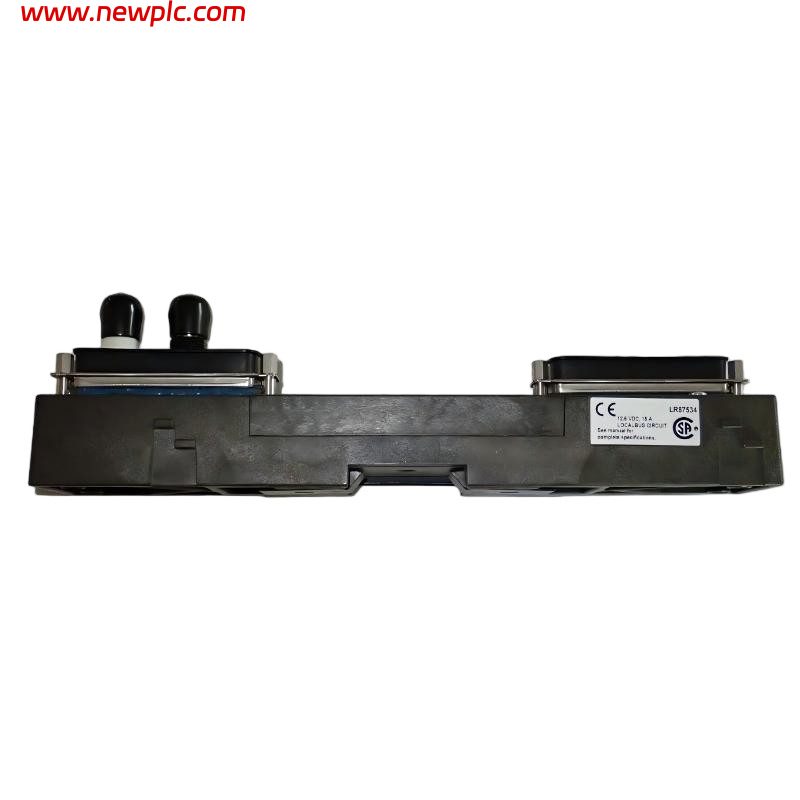

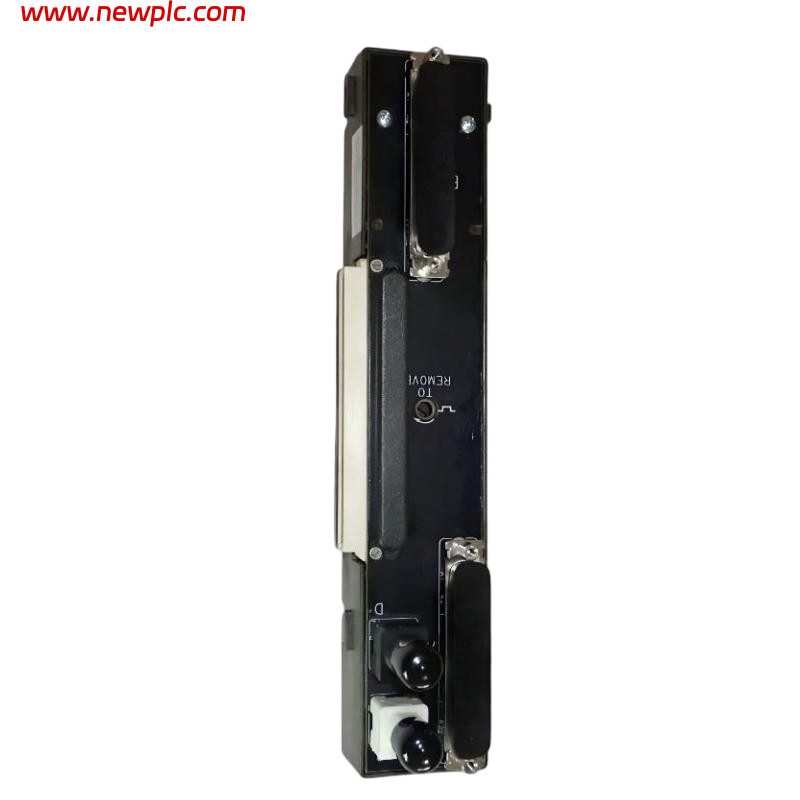

| Product Type | 4-Wide VerticalPlus End Extender Carrier (Left Side) |
| Application | DeltaV Distributed Control System (DCS) |
| Function | Provides left-side LocalBus termination / carrier extension |
| LocalBus Power | 12.6 VDC at 15 A |
| Maximum System Extension Length | Up to 6.5 m (with full LocalBus extender chain) |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 10 g, ½ sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
| Airborne Contaminant Rating | ISA-S71.04-1985 Class G3 |
| Protection Rating | IP20 |
| Hazardous Area Approval | Class I, Division 2 / Zone 2 (Ex ec IIC Gc) |
| Mounting Type | Cabinet / Rack Mount |
| Maintenance | No user-serviceable parts |
| Calibration | Not required |
| Dimensions (L × W × H) | Approximately 150 mm × 220 mm × 30 mm |
| Weight | Approximately 0.25 kg |
FAQ
FAQ
Q1: What is the Emerson KJ4003X1-BF1 used for?
It is used as a left-side end extender in DeltaV VerticalPlus systems, providing termination and structural support for the LocalBus connection.
Q2: What is the main function of this carrier?
It closes and stabilizes the LocalBus chain, ensuring proper communication between DeltaV I/O carriers.
Q3: What are the dimensions of the KJ4003X1-BF1?
The approximate dimensions are 150 mm × 220 mm × 30 mm.
Q4: How much does the KJ4003X1-BF1 weigh?
It weighs approximately 0.25 kg.
Q5: What is the operating voltage?
It operates on a LocalBus power level of 12.6 VDC at up to 15 A.
Q6: What environmental conditions can it handle?
It supports operation from -40°C to +70°C with 5%–95% non-condensing humidity.
Q7: Is the KJ4003X1-BF1 suitable for hazardous areas?
Yes, it is certified for Class I Division 2 and Zone 2 hazardous environments when installed according to Emerson guidelines.
Q8: Does it require maintenance or calibration?
No. It has no user-serviceable parts and does not require calibration during its lifecycle.
