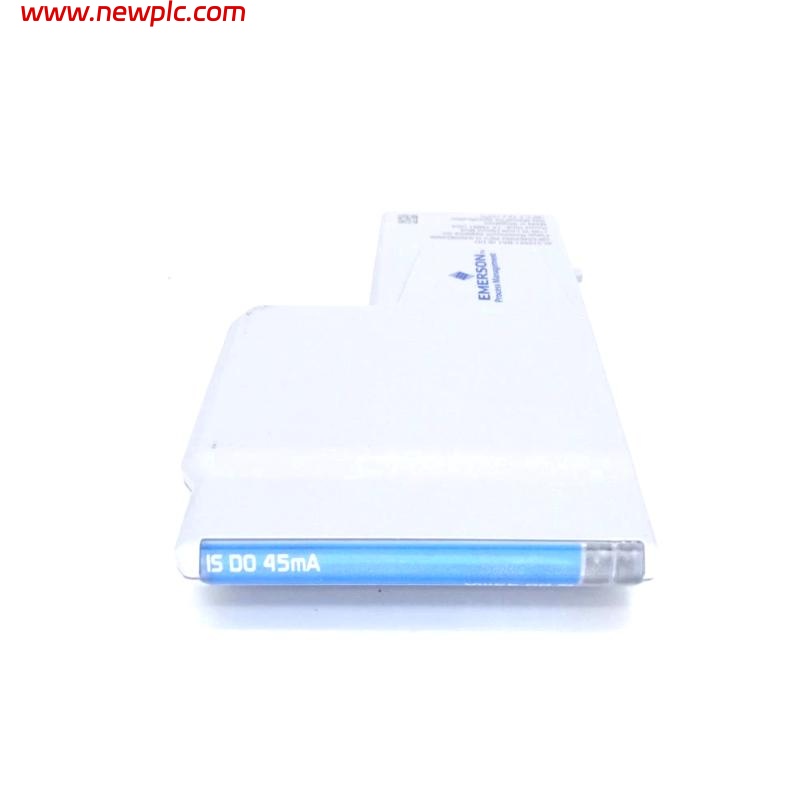

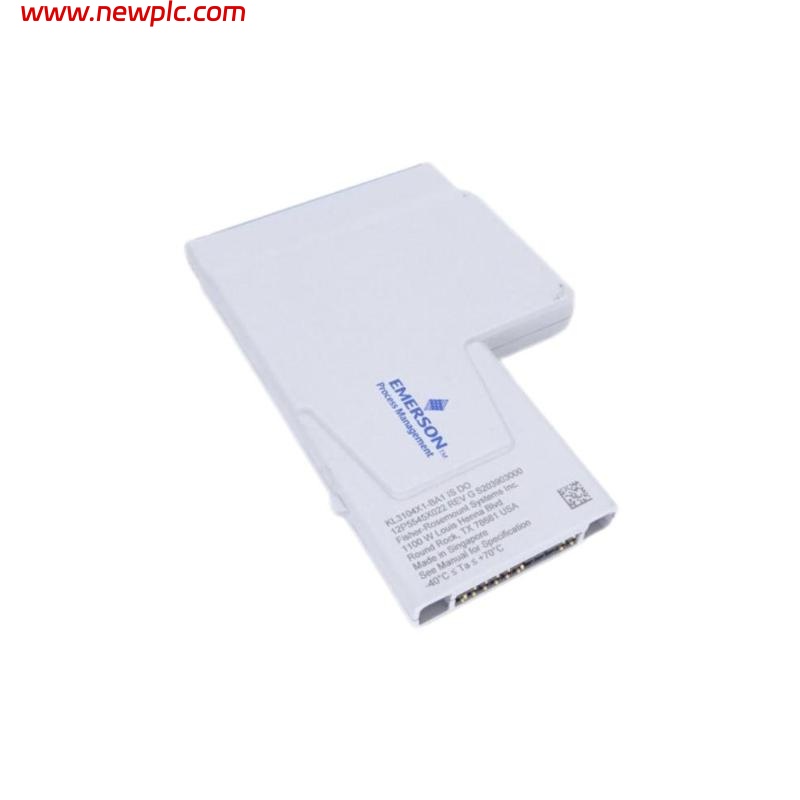

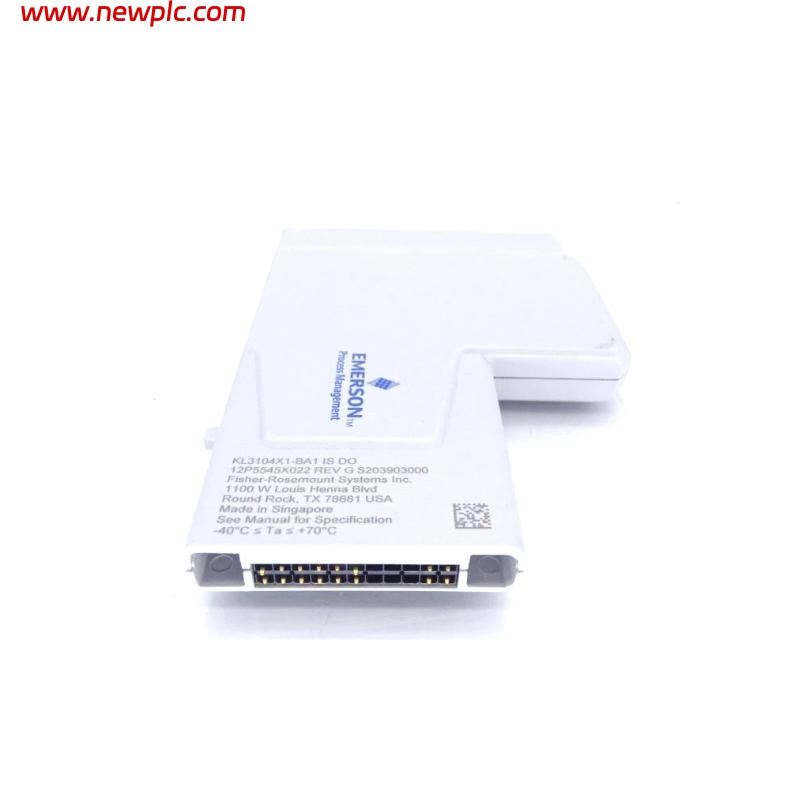

Emerson KL3104X1-BA1 Intrinsically Safe Discrete Output 45 mA CHARM

FAQ

Q1: What is the power supply requirement for the KL3104X1-BA1?
A1: The CHARM bus requires +6.3 VDC at 0 mA, and the field circuit requires +24 VDC at 78 mA.

Q2: What is the operating temperature range of this module?
A2: The KL3104X1-BA1 operates in a temperature range of -40°C to +70°C.

Q3: Can the module be removed or inserted while the system is powered?
A3: No, this unit cannot be removed or inserted with the system power energized.

Q4: Does the KL3104X1-BA1 require calibration or adjustment?
A4: No calibration is required, and the unit contains no user-serviceable parts.

Q5: What hazardous area certifications does the module have?
A5: It is certified for ATEX, IECEx, FM, and UKEX hazardous areas, as specified on the label.

Q6: What are the vibration and shock specifications of the KL3104X1-BA1?
A6: It withstands 10g shock (½ sinewave, 11 ms) and vibration up to 0.7g (13.2–150 Hz).

Q7: What is the relative humidity tolerance of the device?
A7: It can operate at 5% to 95% relative humidity, non-condensing.

Q8: Are there any user-serviceable parts inside the module?
A8: No, the module should not be disassembled, and it contains no user-serviceable parts.

Discrete Output CHARM Emerson Intrinsically Safe KL3104X1 KL3104X1-BA1
