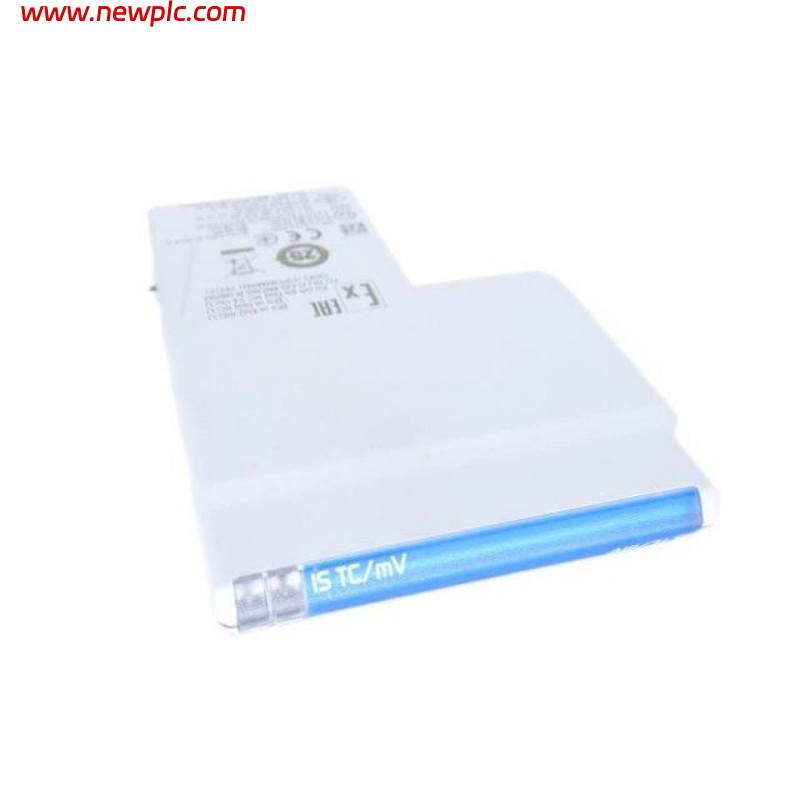

Emerson KL3105X1-BA1 Intrinsically Safe Thermocouple / mV CHARM

FAQ

Q1: What is the function of the KL3105X1-BA1 module?
A1: It is an intrinsically safe thermocouple/mV input CHARM for hazardous area temperature or millivolt signal measurement.

Q2: Is calibration required for the KL3105X1-BA1?
A2: No, this unit does not require calibration.

Q3: Can the KL3105X1-BA1 be inserted or removed while the system is powered?
A3: No, the module cannot be removed or inserted with system power energized.

Q4: What environmental conditions can the KL3105X1-BA1 withstand?
A4: It can operate from -40°C to +70°C, with up to 95% relative humidity (non-condensing), and meets shock and vibration standards.

Q5: Are there any user-serviceable parts in the KL3105X1-BA1?
A5: No, it contains no user-serviceable parts and should not be disassembled.

Q6: Which hazardous area certifications does it have?
A6: The module is certified for ATEX, IECEx, FM, and UKEX hazardous locations.

Q7: What is the terminal block key position of the KL3105X1-BA1?
A7: The terminal block key position is C5.

Q8: What is the vibration resistance specification of the KL3105X1-BA1?
A8: It is designed to withstand 1mm peak-to-peak vibration from 2–13.2Hz and 0.7g from 13.2–150Hz.

Emerson Intrinsically Safe KL3105X1 KL3105X1-BA1 Thermocouple / mV CHARM
