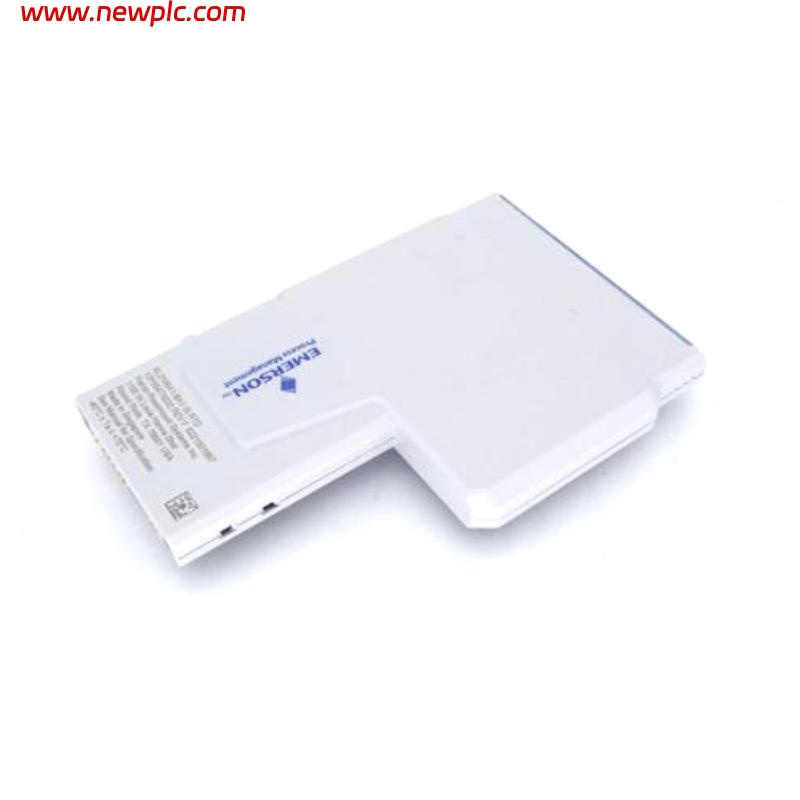

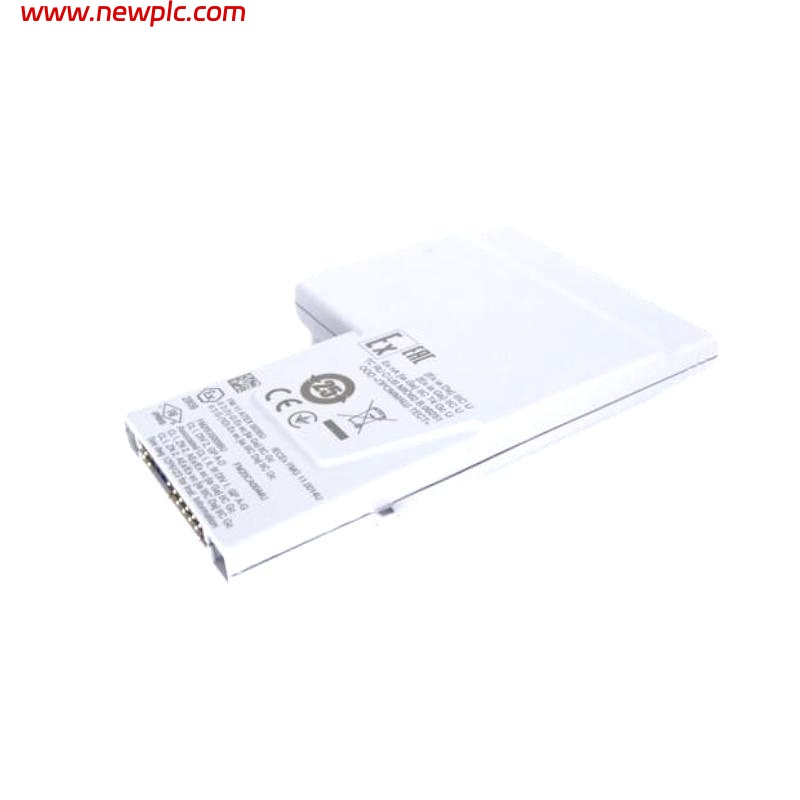

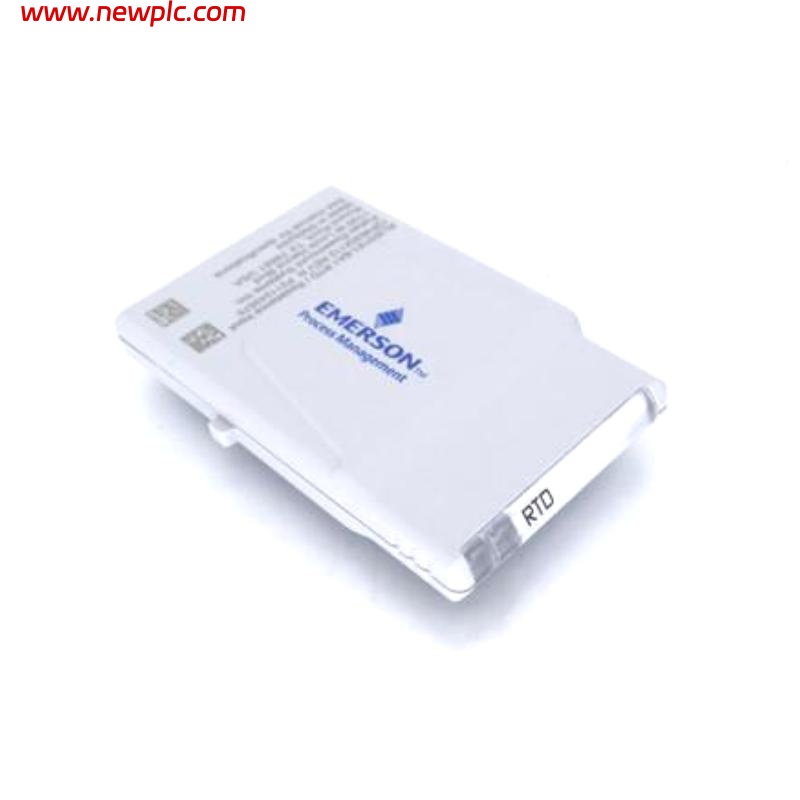

Emerson KL3106X1-BA1 I.S. RTD / Resistance input CHARM

FAQ

Q1: What is the power supply requirement for the KL3106X1-BA1?
A1: The CHARM bus requires +6.3 VDC at 0 mA, and the field circuit requires +24 VDC at 23 mA.

Q2: What is the operating temperature range of the KL3106X1-BA1?
A2: The unit operates in a temperature range of -40°C to +70°C.

Q3: Can the KL3106X1-BA1 be inserted or removed while the system is powered?
A3: No, the unit cannot be removed or inserted when the system power is energized.

Q4: Does the KL3106X1-BA1 require periodic calibration?
A4: No, calibration is not required for this unit.

Q5: Is the KL3106X1-BA1 resistant to vibration and shock?
A5: Yes, it withstands shock up to 10g and vibration up to 0.7g in the specified frequency ranges.

Q6: What humidity conditions can the KL3106X1-BA1 operate in?
A6: It can operate in relative humidity from 5% to 95% non-condensing.

Q7: Are there any user-serviceable parts in the KL3106X1-BA1?
A7: No, the unit contains no user-serviceable parts and should not be disassembled.

Q8: What is the contamination tolerance of the KL3106X1-BA1?
A8: It is designed to operate in environments up to ISA-S71.04-1985 Class G3 airborne contaminants.

Emerson I.S. RTD / Resistance input CHARM KL3106X1 KL3106X1-BA1
