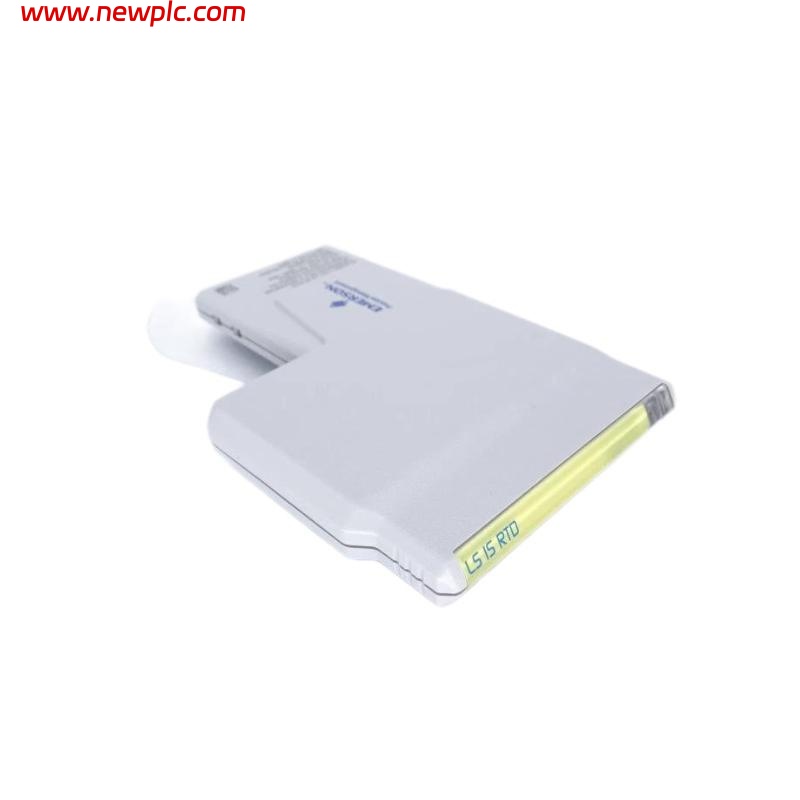

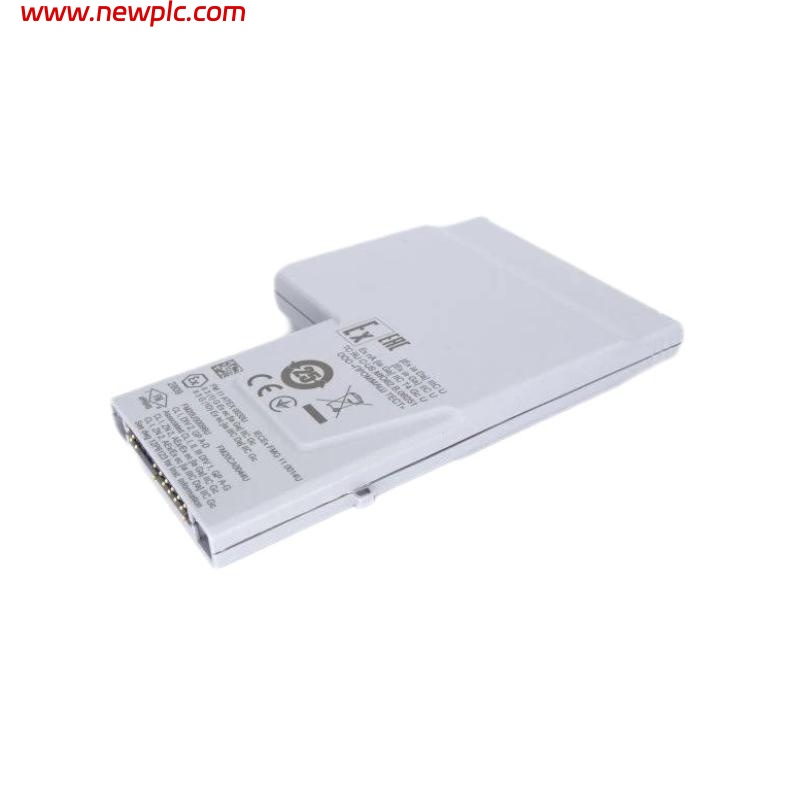

Emerson KL3106X1-LS1 LS I.S. RTD / Resistance input CHARM

FAQ

Q1: What power supply does this module require?
A1: It requires +6.3 VDC (0 mA) on the CHARM bus and +24 VDC (23 mA) for the field circuit.

Q2: What is the ambient temperature range supported by the module?
A2: The supported ambient temperature range is -40°C to +70°C.

Q3: What is the acceptable relative humidity?
A3: The relative humidity should be between 5% and 95%, non-condensing.

Q4: Can the module be hot-plugged?
A4: No, the module must not be inserted or removed while the system is energized.

Q5: Does the module require calibration or maintenance?
A5: No calibration or maintenance is required, and it contains no user-serviceable parts.

Q6: What hazardous area certifications does it have?
A6: The module complies with ATEX, IECEx, and FM certifications for hazardous areas.

Q7: How does the module perform under vibration?
A7: It withstands 1mm peak-to-peak (2–13.2 Hz) and 0.7g (13.2–150 Hz) vibration.

Q8: What are the module’s dimensions and weight?
A8: The module measures 120 x 150 x 45 mm and weighs 0.5 kg.

Emerson KL3106X1 KL3106X1-LS1 LS I.S. RTD / Resistance input CHARM
