Technical Specifications

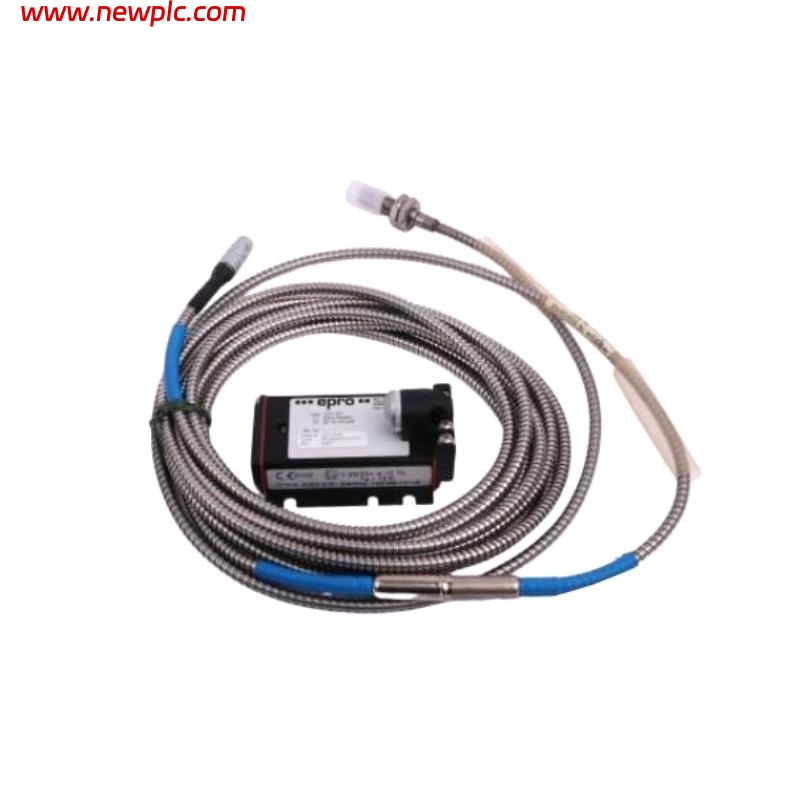

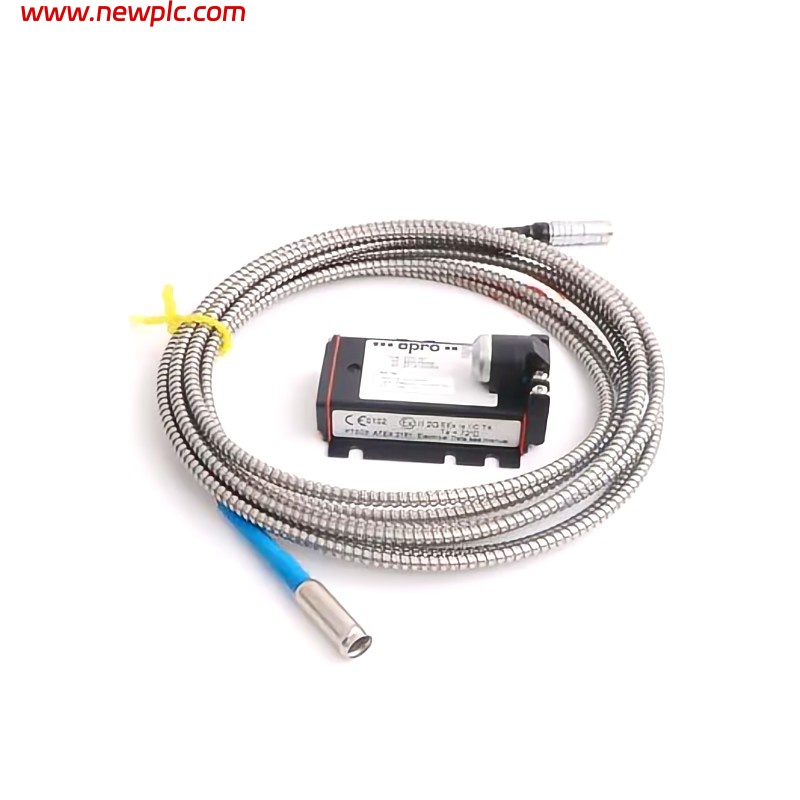

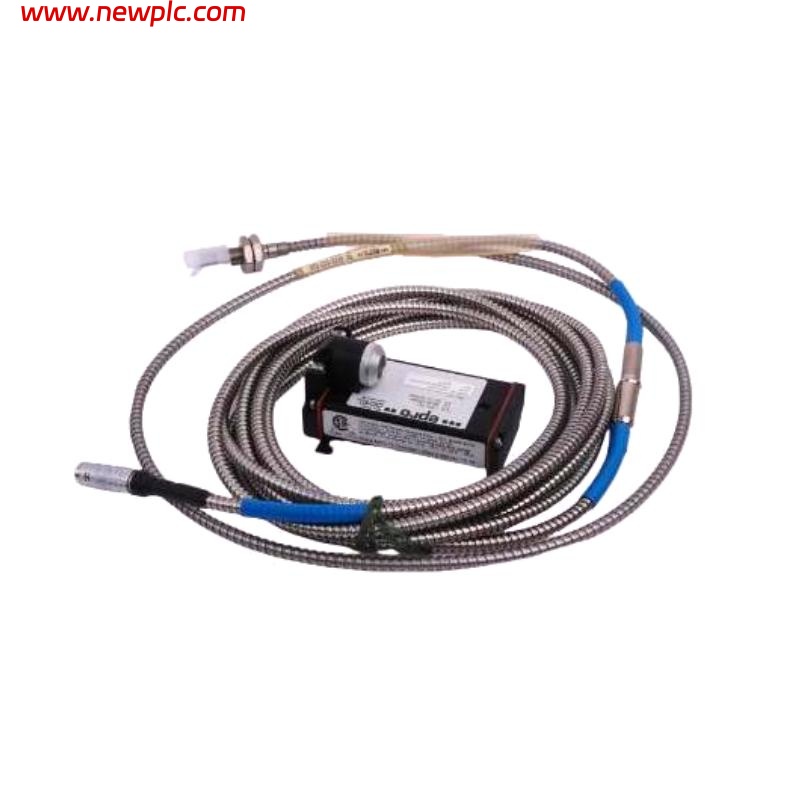

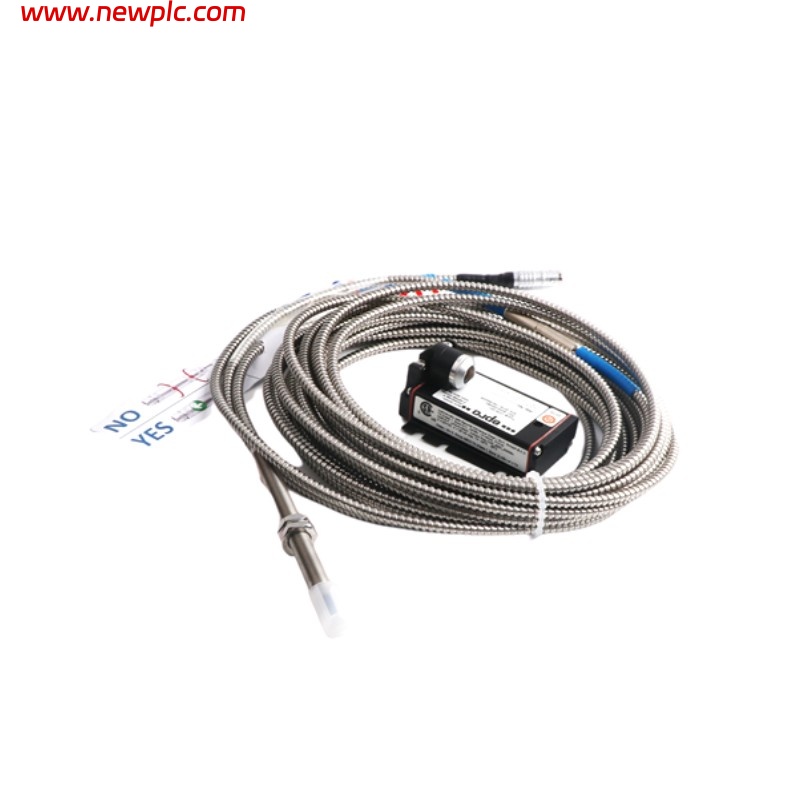

| Parameter | Epro PR6423/002-001-CN Eddy Current Sensor |
|---|---|
| Measurement Range | 2 mm linear |
| Initial Air Gap | 0.5 mm |
| Incremental Scale Factor | 8 V/mm (203.2 mV/mil) ±5% |
| Deviation from Straight Line | ±0.025 mm |
| Minimum Shaft Diameter | 25 mm |
| Protection Class | IP66 |
| Operating Temperature (Sensor) | -35°C to +180°C |
| Operating Temperature (Cable) | -35°C to +150°C |
| Material | Tip: PEEK; Case: Stainless Steel |
| Weight | Approx. 0.22 kg |
| Diameter of Sensor Head | 8 mm |
| Certifications | CE, ATEX, IEC-Ex, CSA |
| Hazardous Area Classification | Intrinsic Safety (ia), Non-sparking (nA) |
| Parameter | Epro CON021 Eddy Current Signal Converter |
|---|---|
| Frequency Range (-3 dB) | 0 – 20000 Hz |
| Rise Time | <15 µs |
| Supply Voltage | -23V to -32V / -21V to -32V |
| Operating Temperature | -30°C to +100°C |
| Protection Class | IP20 |
| Housing Material | LMgSi 0.5 F22 |
| Weight | Approx. 0.12 kg |
| Mounting | Panel mount (4 x M5 screws) |
| Certifications | CE, ATEX, IEC-Ex, CSA |
| Hazardous Area Classification | Intrinsic Safety (ia), Non-sparking (nA) |
FAQ
FAQ
Q1: What is the measurement range of this sensor?
A1: The PR6423 has a linear measurement range of 2mm.
Q2: What is the maximum operating temperature of PR6423?
A2: The sensor can operate up to +180°C, and the cable can operate up to +150°C.
Q3: What is the protection class of PR6423?
A3: The protection class is IP66, which is dust-tight and water-resistant.
Q4: Can PR6423 be used in hazardous areas?
A4: Yes, it is certified for Intrinsic Safety (ia) and Non-sparking (nA) in hazardous areas.
Q5: What is the frequency range of the CON021 converter?
A5: The operating frequency range is 0 to 20000Hz.
Q6: What is the supply voltage range for CON021?
A6: The supply voltage range is -23V to -32V, with output ranges of -4V to -20V or -2V to -18V.
Q7: What is the minimum shaft diameter for PR6423?
A7: The minimum shaft diameter required is 25mm.
Q8: What are the diameter and weight of the sensor head?
A8: The sensor head has a diameter of 8mm and a weight of approximately 0.22kg.
