Technical Specifications
| Parameter | Specification |
|---|---|

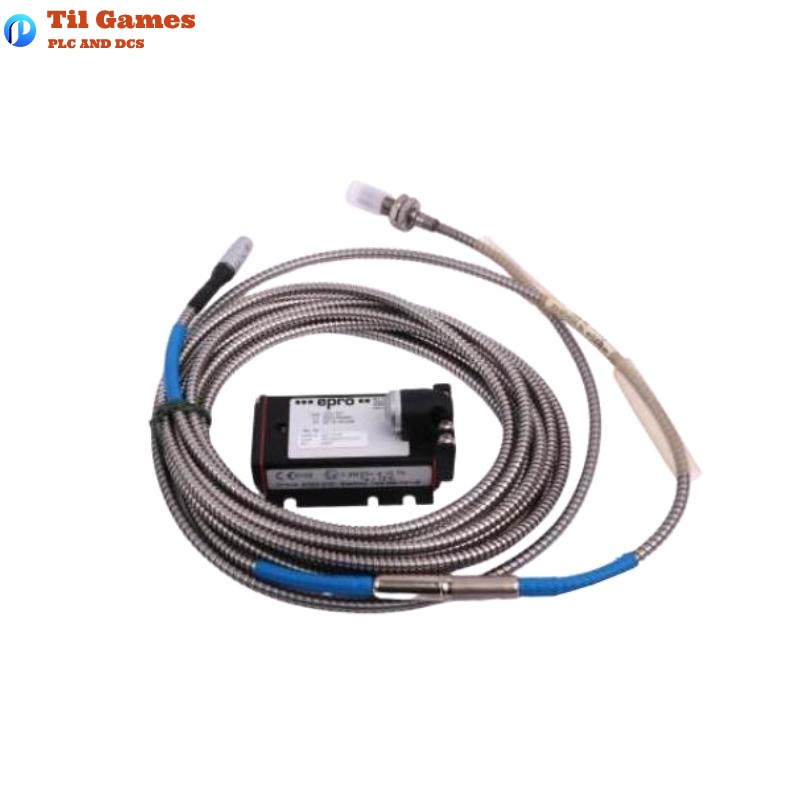

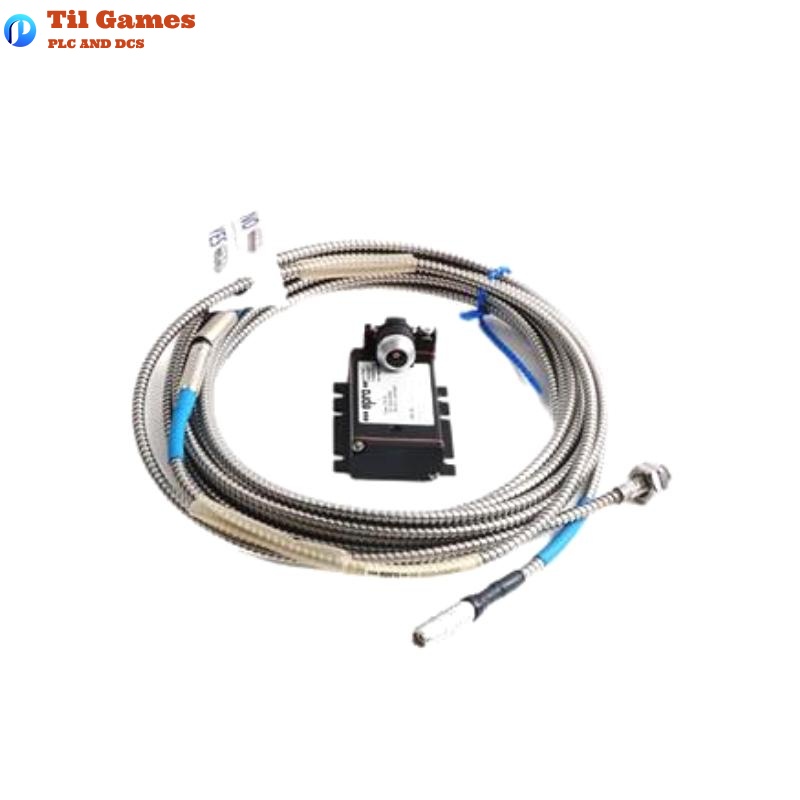

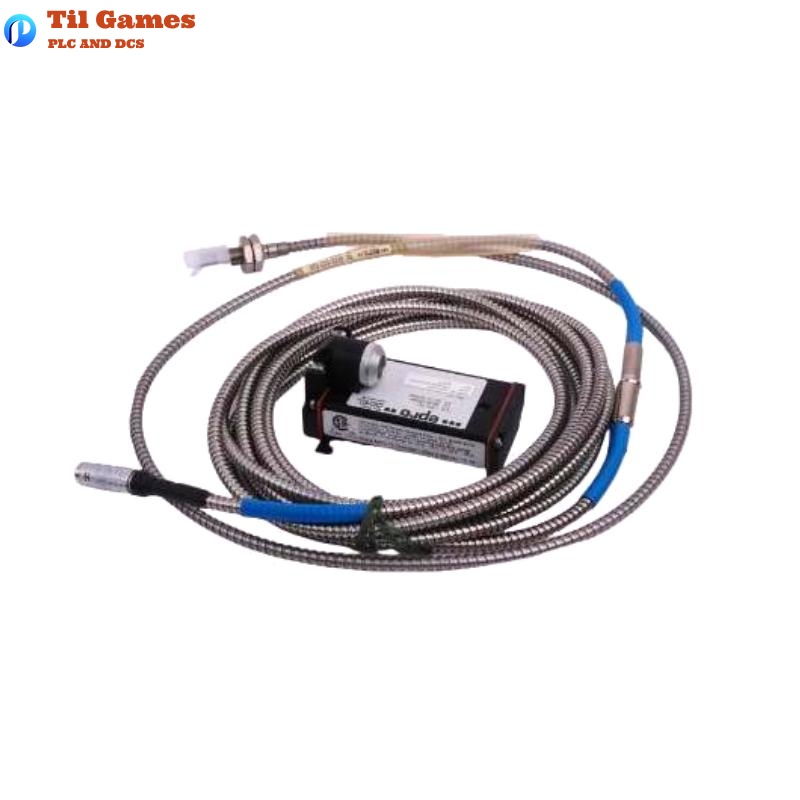

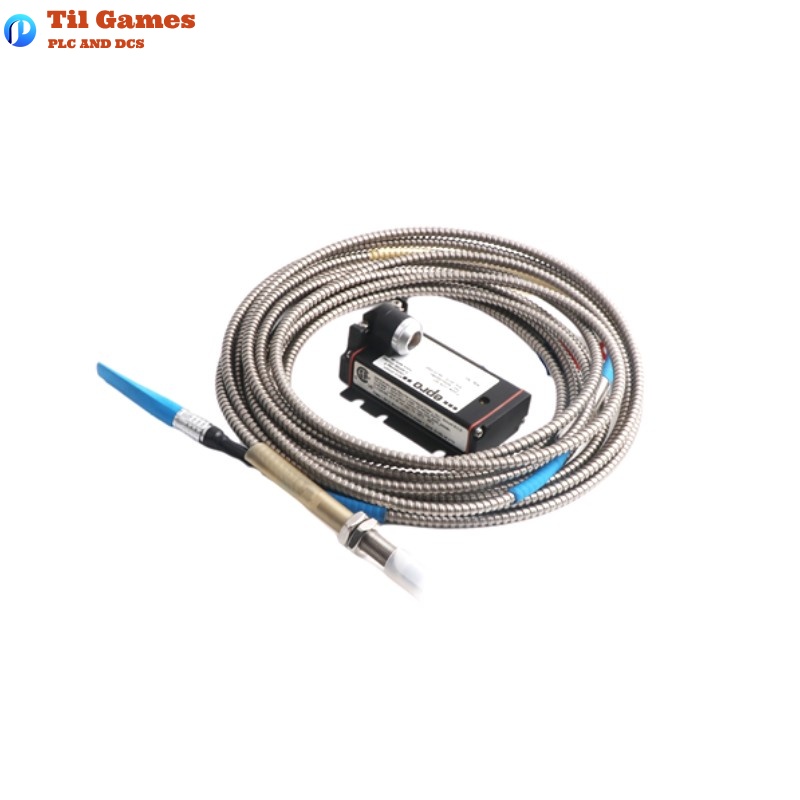

| Model | Epro ZW0502/1217/0211 + PR6423/005-0F2 |
| Sensor Type | Eddy Current Sensor |
| Measurement Principle | Non-contact, eddy current displacement |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | 8 V/mm (203.2 mV/mil) ±5% @ 0 to 45°C |
| Deviation from Best Fit Line (DSL) | ±0.025 mm (±1 mil) |
| Minimum Shaft Diameter | 25 mm (0.79 in) |
| Target Material | Ferromagnetic Steel (42CrMo4 / AISI 4140) |
| Protection Class | IP66 (IEC 60529) |
| Operating Temperature (Sensor) | -35°C to +180°C (-31°F to +356°F) |
| Operating Temperature (Cable) | -35°C to +150°C (-31°F to +302°F) |
| Material – Sensor Tip | PEEK (Polyether Ether Ketone) |
| Material – Case | Stainless Steel |
| Material – Cable | PTFE (Polytetrafluoroethylene) |
| Material – Connector | Brass, Nickel-plated |
| Cable Diameter | 2.8 mm standard, 6 mm armored (optional) |
| Minimum Cable Bend Radius | 25 mm (standard), 35 mm (armored) |
| Dimensions | Tip Diameter: 8 mm |
| Weight (with 1 m cable) | Approx. 0.1 kg |
| Compliance | CE, ATEX, IECEx, CSA, UL Certified |
| Hazardous Area Classification | Intrinsic Safety (ia), Non-sparking (nA) |
| Temperature Classification (Zone) | T6: Ta ≤ 64°C, T4: Ta ≤ 114°C, T3: Ta ≤ 160°C |
FAQ
FAQ
Q1: What type of displacement does this sensor measure?
A1: It measures radial and axial dynamic shaft displacement, position, eccentricity, and speed.
Q2: Which equipment is the PR6423 sensor suitable for?
A2: It is suitable for steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.
Q3: What is the measurement accuracy of the PR6423 sensor?
A3: The deviation from best fit straight line is ±0.025 mm (±1 mil) at 0 to 45°C.
Q4: What is the minimum shaft diameter the sensor can measure?
A4: The sensor can measure shafts with a minimum diameter of 25 mm.
Q5: What is the protection class rating of the PR6423?
A5: It is rated IP66, offering excellent protection against dust and water ingress.
Q6: Does this sensor have hazardous area certifications?
A6: Yes, it is certified for ATEX, IECEx, CSA, and UL for intrinsic safety and non-sparking zones.
Q7: What is the operating temperature range of the sensor?
A7: The sensor operates from -35°C to +180°C, while the cable operates up to +150°C.
Q8: What are the size and weight of the sensor head?
A8: The sensor head has a diameter of 8 mm and weighs approximately 0.1 kg with a 1 m cable.
