Technical Specifications
| Parameter | Value |
|---|---|

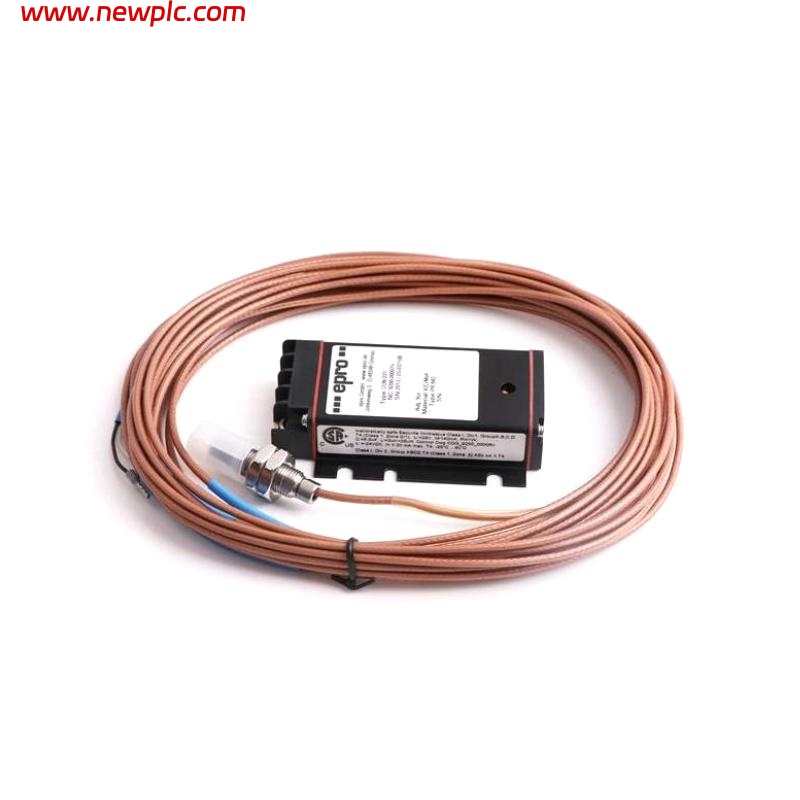

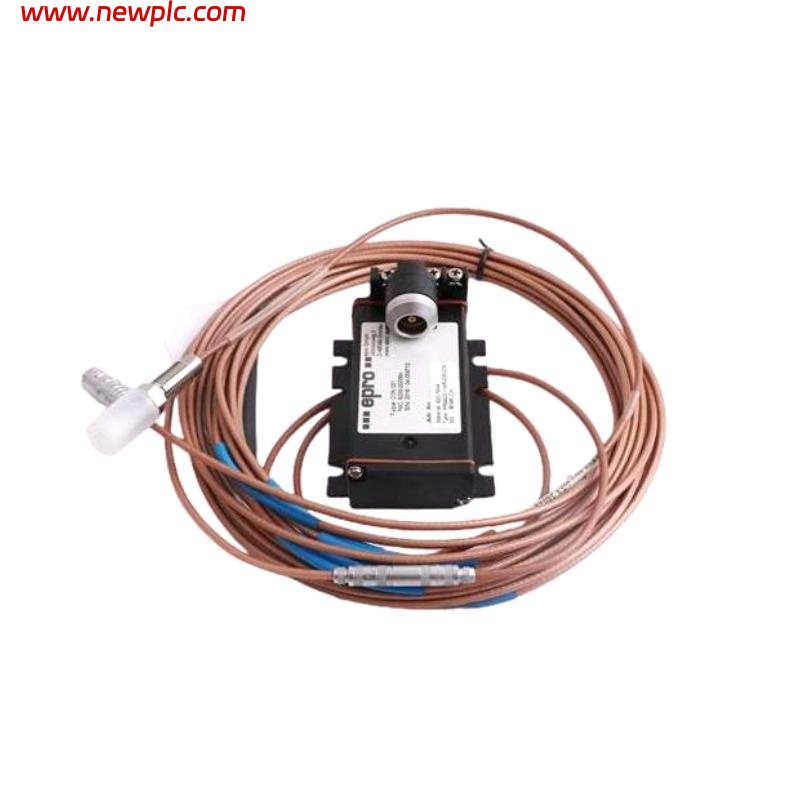

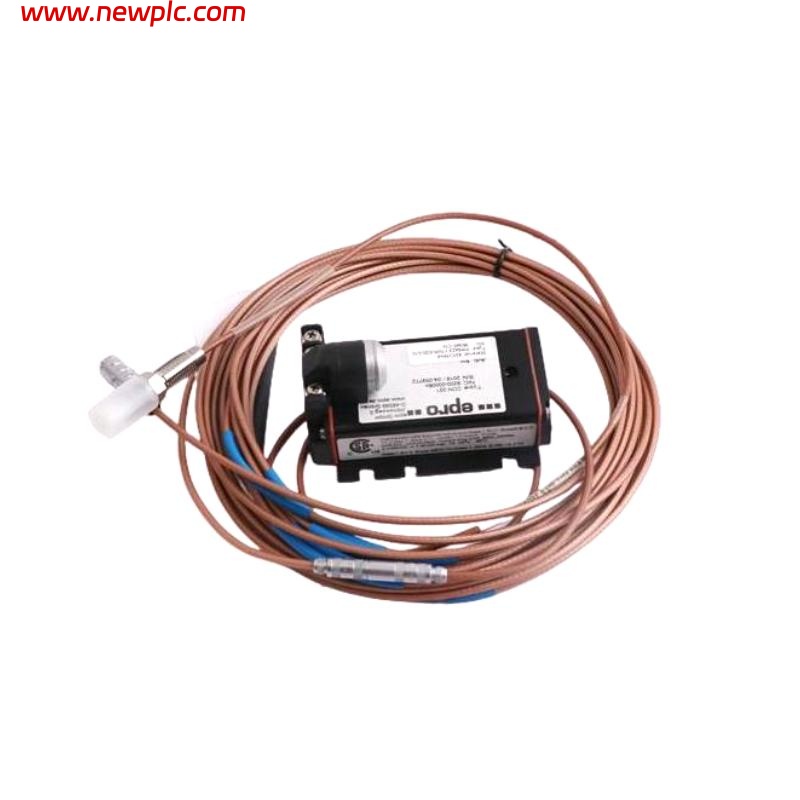

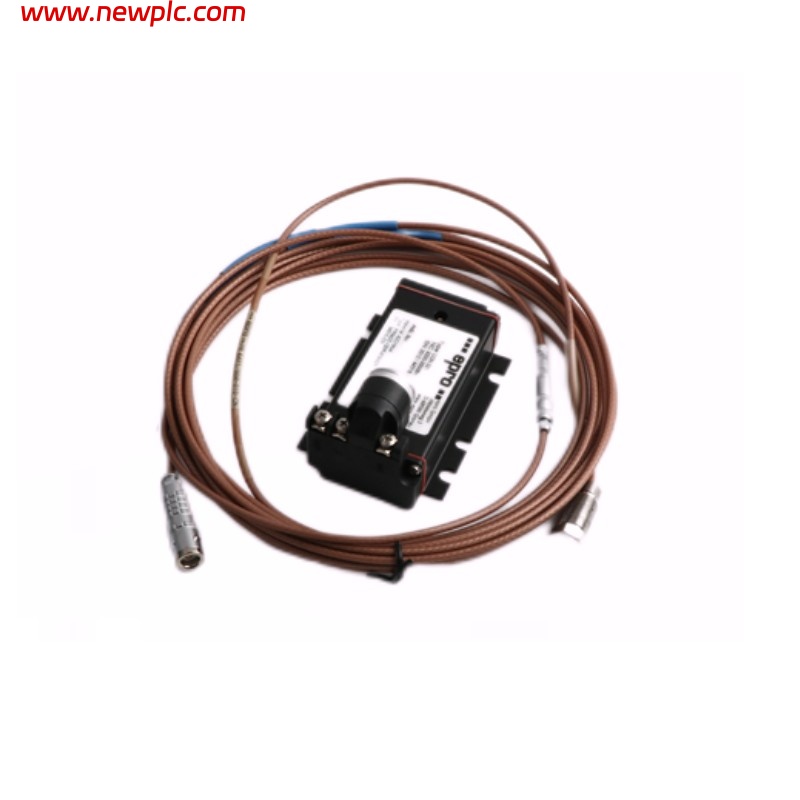

| Sensor Model | Epro PR6423/010-010-CN |
| Signal Converter Model | Epro CON021/914-100 |
| Sensor Type | 8mm Eddy Current Sensor |
| Measurement Range (Sensor) | 2.0 mm |
| Initial Air Gap | 0.5 mm |
| Incremental Scale Factor (ISF) | 8 V/mm ±5% |
| Linearity Error (Converter) | ≤2.0% |
| Frequency Range (Converter) | 0 – 20,000 Hz |
| Rise Time (Converter) | <15 µs |
| Minimum Shaft Diameter | 25 mm |
| Operating Temperature Range (Sensor) | -35°C to +180°C |
| Operating Temperature Range (Converter) | -30°C to +100°C |
| Protection Class (Sensor) | IP66 |
| Protection Class (Converter) | IP20 |
| Sensor Material | Tip: PEEK; Case: Stainless Steel |
| Converter Housing Material | LMgSi 0.5 F22 |
| Weight (Sensor) | 0.22 kg |
| Weight (Converter) | ~0.12 kg |
| Sensor Tip Diameter | 8 mm |
| Certifications | CE, ATEX, IECEx, CSA |
| Hazardous Area Approvals | Intrinsic Safety (ia), Non-sparking (nA) |
| Supply Voltage (Converter) | -23V to -32V |
| Output Voltage Range (Converter) | -4V to -20V |
FAQ
FAQ
Q1: What is the minimum shaft diameter supported by the sensor?
A1: The sensor supports shafts with a minimum diameter of 25mm.
Q2: What are the operating temperature ranges for the sensor and converter?
A2: The sensor operates from -35°C to +180°C, and the converter operates from -30°C to +100°C.
Q3: What is the linear measurement range of the sensor?
A3: The linear measurement range is 2.0mm.
Q4: What is the linearity error of the system?
A4: When paired with CON021/914-100, the linearity error is ≤2.0%.
Q5: What is the frequency response range of the converter?
A5: The converter supports a frequency range of 0 to 20,000Hz, suitable for high-speed machinery.
Q6: Is the sensor suitable for harsh environments?
A6: Yes, the sensor has an IP66 rating, ideal for harsh industrial conditions.
Q7: What is the diameter of the sensor tip?
A7: The sensor tip diameter is 8mm.
Q8: Does this product have explosion-proof certification?
A8: Yes, it has ATEX, IECEx, and other intrinsic safety (ia) and non-sparking (nA) certifications, suitable for hazardous areas.
