Technical Specifications
| Parameter | Value |
|---|---|

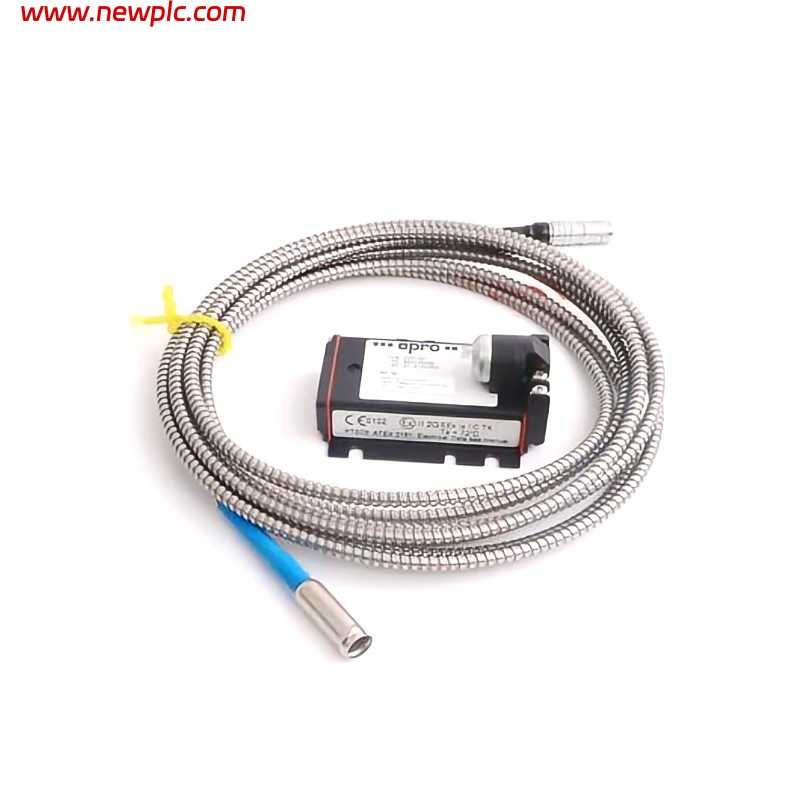

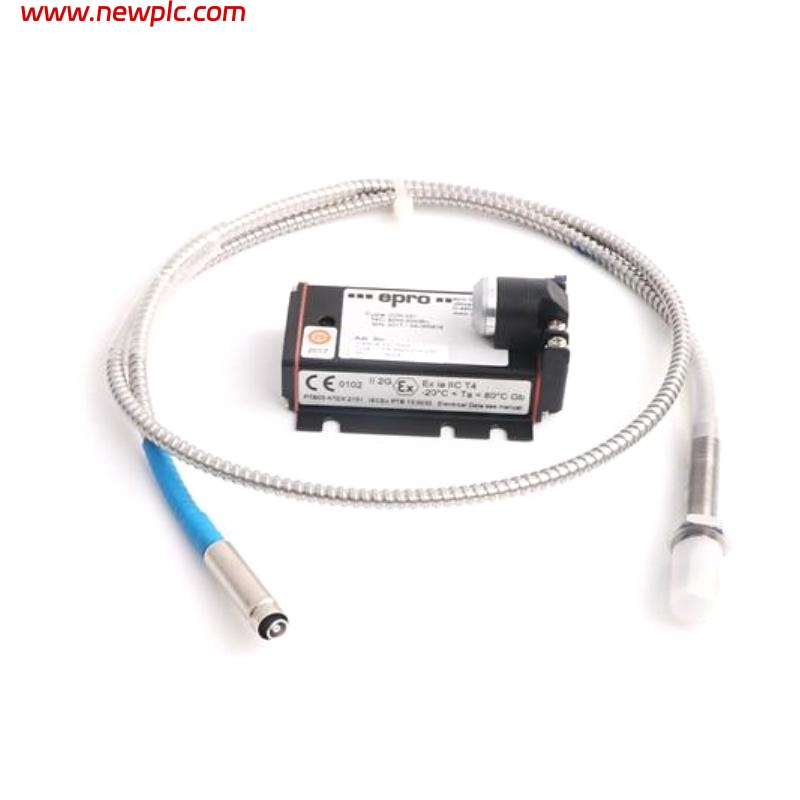

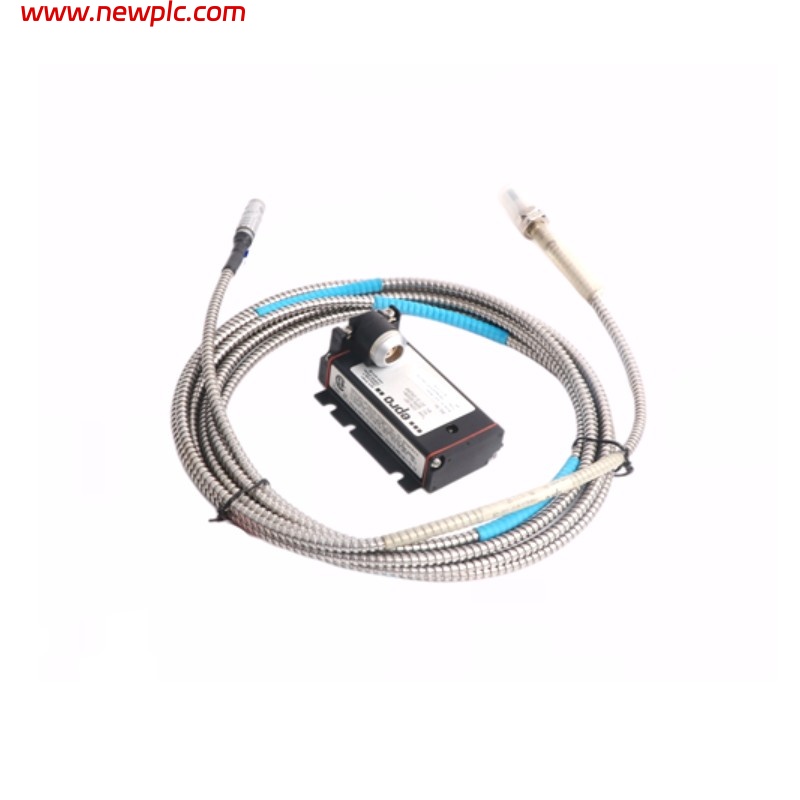

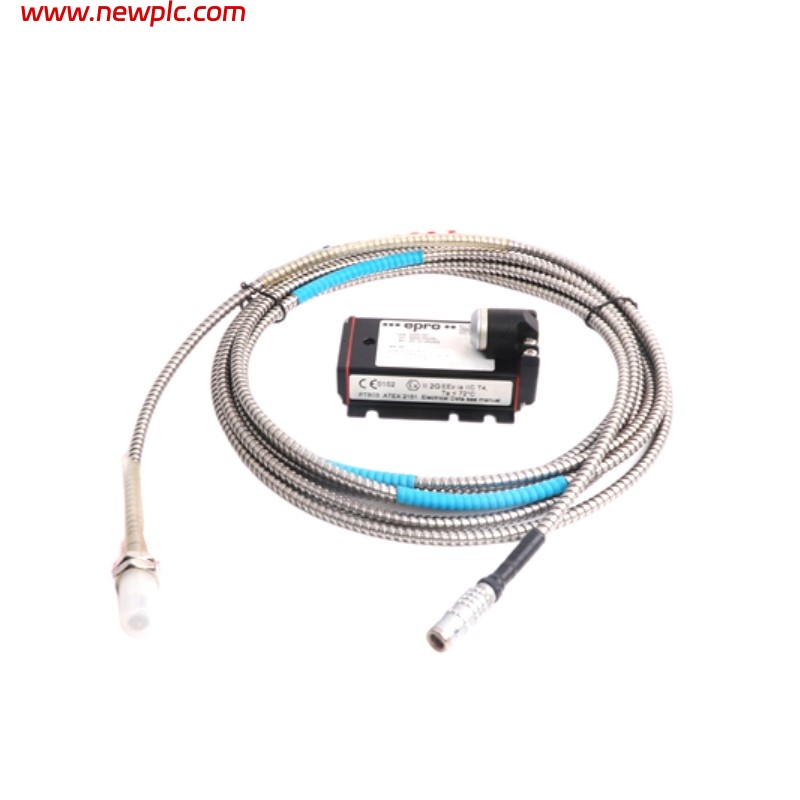

| Sensor Type | Epro PR6423/010-000-CN 8mm Eddy Current Sensor |
| Signal Converter | Epro CON021 |
| Measurement Range (Sensor) | 2 mm |
| Initial Air Gap | 0.5 mm |
| Incremental Scale Factor (ISF) | 8 V/mm ±5% |
| Deviation from Best Fit Line (DSL) | ±0.025 mm |
| Minimum Shaft Diameter | 25 mm |
| Target Material | 42CrMo4 (AISI/SAE 4140) |
| Operating Temperature (Sensor) | -35 to +180°C |
| Operating Temperature (Converter) | -30 to +100°C |
| Protection Class (Sensor) | IP66 |
| Protection Class (Converter) | IP20 |
| Frequency Range (Converter) | 0 to 20,000 Hz |
| Rise Time (Converter) | <15 µs |
| Supply Voltage (Converter) | -23V to -32V |
| Output Voltage Range | -4V to -20V or -2V to -18V |
| Sensor Head Diameter | 8 mm |
| Sensor Weight (with 1m cable) | Approx. 0.22 kg |
| Converter Weight | Approx. 0.12 kg |
| Housing Materials (Sensor) | PEEK tip, stainless steel case |
| Housing Materials (Converter) | LMgSi 0.5 F22 |
| Cable Material | PTFE |
| Certifications | CE, ATEX, IEC-Ex, CSA |
FAQ
FAQ
Q1: What applications is this sensor and converter set suitable for?
A1: It is designed for use in steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans to measure shaft displacement, eccentricity, and speed.
Q2: What is the measurement range of the PR6423 sensor?
A2: The linear measurement range of the PR6423 8mm sensor is 2 mm.
Q3: What material should the target shaft be made of?
A3: The recommended shaft material is 42CrMo4 (AISI/SAE 4140) or equivalent ferromagnetic steel.
Q4: Can this product be used in hazardous areas?
A4: Yes, it supports intrinsic safety (ia) and non-sparking (nA) certifications. Specific area classifications depend on the converter.
Q5: Which sensor models does the CON021 converter support?
A5: The CON021 supports PR6422, PR6423, PR6424, PR6425, and PR6426 series sensors.
Q6: What is the protection class of the sensor?
A6: The PR6423 sensor is rated IP66, suitable for harsh industrial environments.
Q7: What is the frequency response of the converter?
A7: The CON021 converter has a frequency range of 0 to 20,000 Hz.
Q8: What is the weight of the PR6423 sensor?
A8: The sensor (with 1m cable) weighs approximately 0.22 kg.
