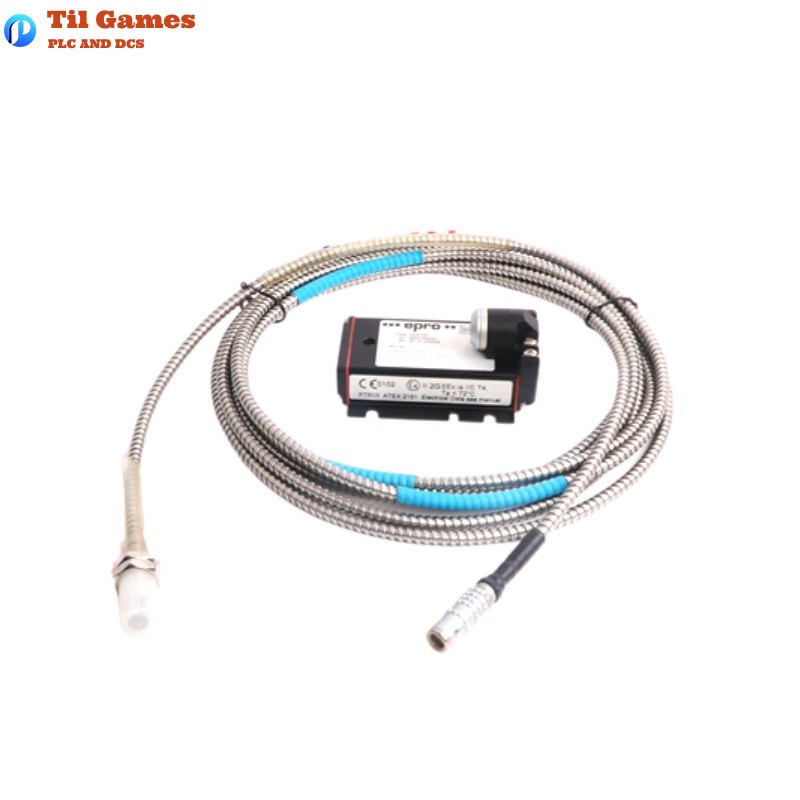

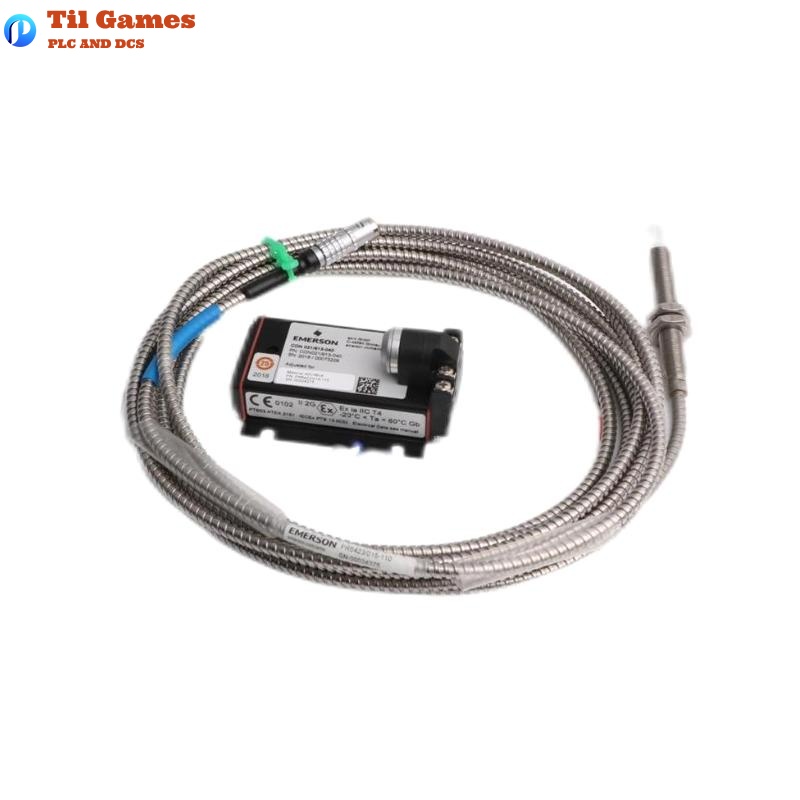

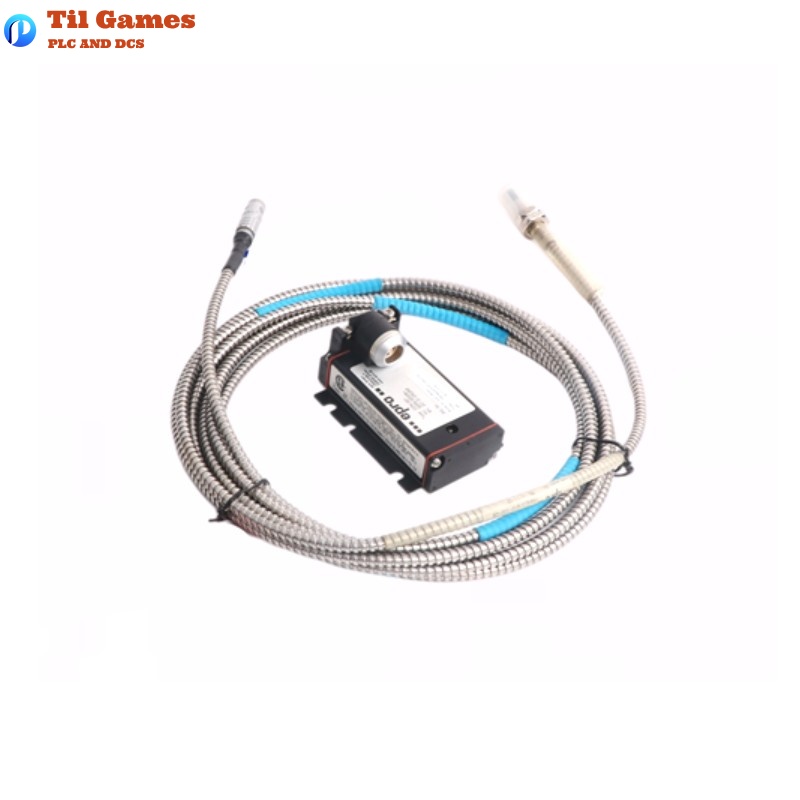

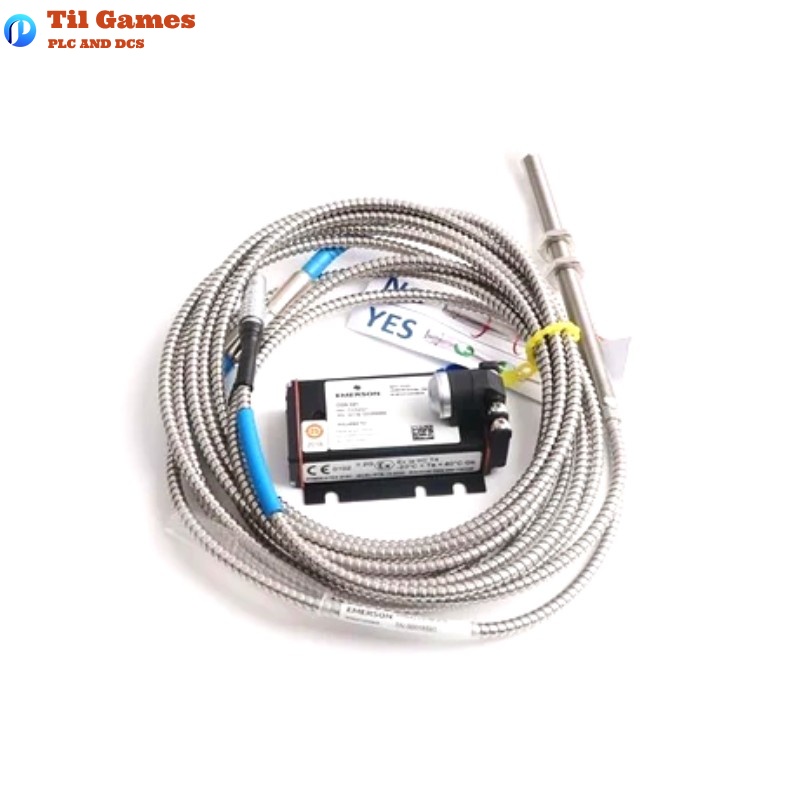

Technical Specifications
| Parameter | PR6423/010-030 Eddy Current Sensor | CON021 Signal Converter |
|---|---|---|
| Tip Diameter | 8 mm | — |
| Linear Measurement Range | 2 mm (80 mils) | Matches sensor range (Standard: 2 mm for PR6423) |
| Incremental Scale Factor | 8 V/mm ±5% (203.2 mV/mil) | — |
| Deviation from Straight Line | ±0.025 mm (±1 mil) | Linearity Error: ≤1.0% (standard PR6423), ≤1.5% (3.0 mm range) |
| Minimum Shaft Diameter | 25 mm (0.98 in) | — |
| Target Material | 42CrMo4 (AISI/SAE 4140) or other (on request) | — |
| Initial Air Gap | 0.5 mm (20 mils) | — |
| Frequency Range | — | 0–20,000 Hz |
| Rise Time | — | <15 µs |
| Protection Class | IP66 | IP20 |
| Operating Temperature | -35 to +180°C (sensor), -35 to +150°C (cable) | -30 to +100°C |
| Housing Material | Stainless steel (sensor), PEEK tip, PTFE cable, brass connector | LMgSi 0.5 F22 |
| Mounting | Threaded: M10x1 or 3/8-24 UNF | Panel mount (4 × M5 screws) |
| Connector Type | Lemo connector or open cable end | Self-locking Lemo for transducer; terminal for power/output |
| Weight | 0.22 kg (sensor with 1m cable) | ~0.12 kg |
| Dimensions (Sensor Head) | Diameter: 8 mm | Width: 50.8 mm, Height: 72 mm (approx.) |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL | CE, ATEX, IEC-Ex, CSA, UL |
| Hazardous Area Approval | Intrinsic Safety (ia), Non-sparking (nA) | Intrinsic Safety (ia), Non-sparking (nA) |
FAQ
FAQ
Q1: What is the main application of the PR6423/010-030 sensor?
A1: It is used in turbines, compressors, pumps, and fans for non-contact measurement of shaft displacement, eccentricity, and speed.
Q2: What is the minimum shaft diameter the sensor can measure?
A2: The sensor supports shaft diameters as small as 25 mm.
Q3: What is the recommended initial air gap during installation?
A3: The recommended initial air gap is 0.5 mm (20 mils).
Q4: Does the sensor have intrinsic safety certification?
A4: Yes, it is certified for intrinsic safety (ia) and non-sparking (nA) under ATEX, IEC-Ex, and CSA standards.
Q5: Which sensors are compatible with the CON021 converter?
A5: It supports PR6422, PR6423, PR6424, PR6425, and PR6426 sensors.
Q6: What is the frequency response range of the CON021 converter?
A6: It offers a frequency range of 0 to 20,000 Hz, ideal for dynamic measurements.
Q7: What is the system linearity error when paired with PR6423?
A7: For the standard 2 mm range, the overall system linearity error is ≤1%.
Q8: What is the weight of the PR6423 sensor?
A8: The sensor with a 1-meter cable weighs approximately 0.22 kg.
