Technical Specifications
| Item | Specification |
|---|---|

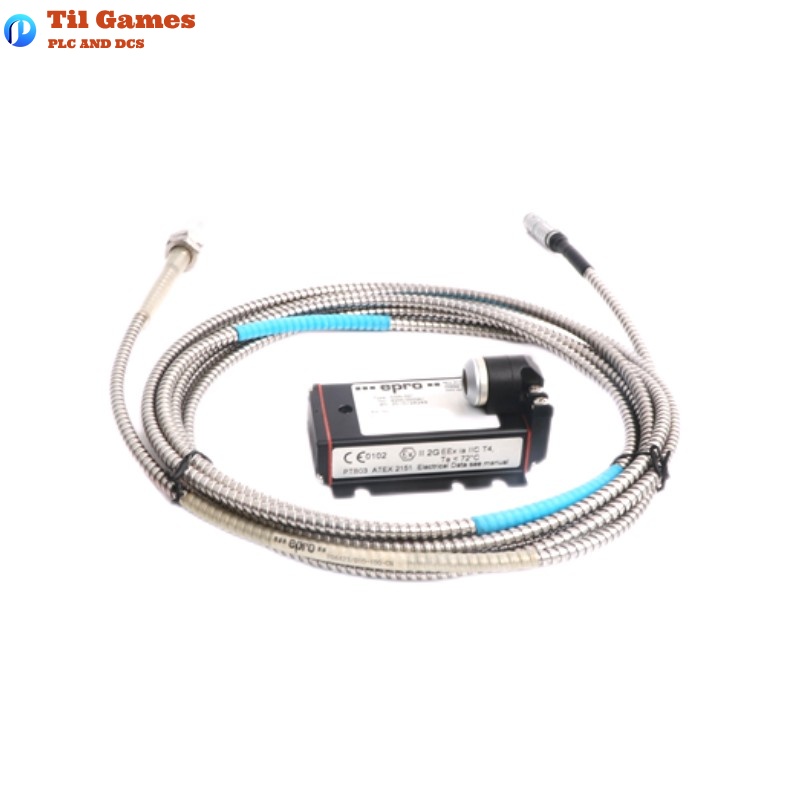

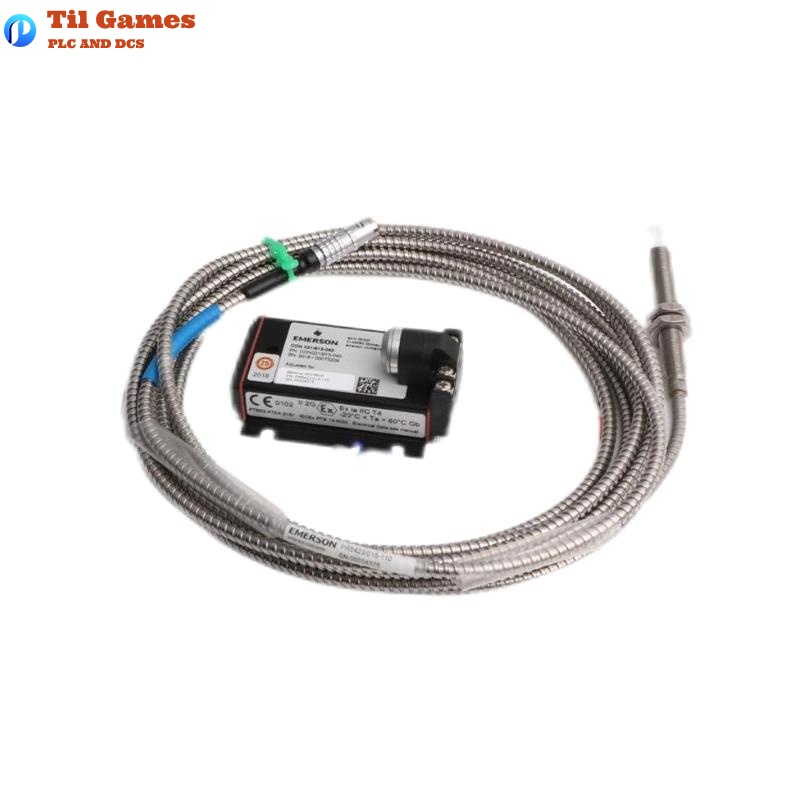

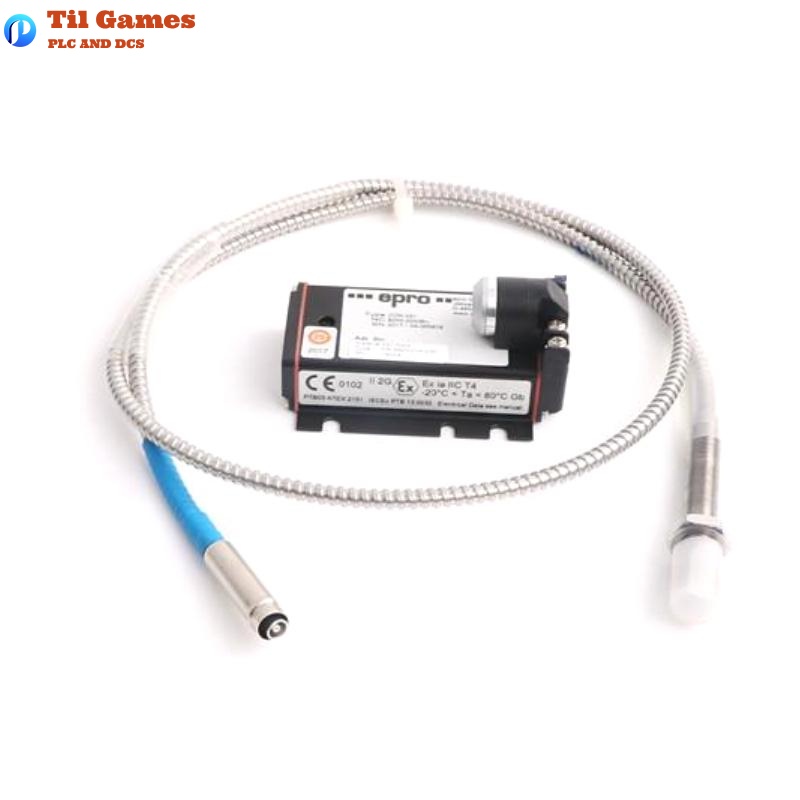

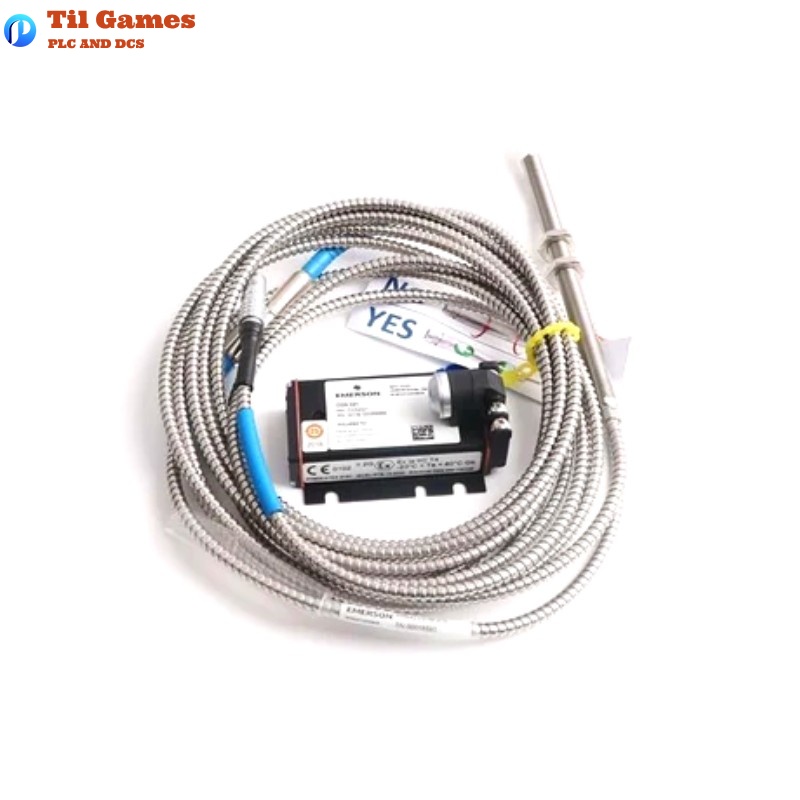

| Product Name | Epro PR6423/011-110 + CON021 Eddy Current Sensor + Signal Converter |
| Measuring Principle | Non-contact eddy current sensor for shaft displacement and vibration |
| Linear Measuring Range | 2 mm (80 mils) |
| Initial Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor | 8 V/mm (203.2 mV/mil) ±5%, valid from 0 to 45°C |
| Linearity Deviation | ±0.025 mm (±1 mil), valid from 0 to 45°C |
| Minimum Shaft Diameter | 25 mm |
| Target Material | 42CrMo4 (AISI 4140) standard; others on request |
| Operating Temp. (Sensor) | -35 to +180°C |
| Operating Temp. (Cable) | -35 to +150°C |
| Protection Class (Sensor) | IP66 (IEC 60529) |
| Material Composition | Tip: PEEK, Case: Stainless Steel, Cable: PTFE, Connector: Nickel-plated Brass |
| Output Range (Converter) | -4 to -20V or -2 to -18V (depending on supply voltage) |
| Frequency Response | 0 to 20 kHz (-3 dB) |
| Rise Time (Converter) | <15 µs |
| Operating Temp. (CON021) | -30 to +100°C |
| Protection (Converter) | IP20 |
| Weight (Sensor) | 0.22 kg |
| Weight (Converter) | ~0.12 kg |
| Sensor Tip Diameter | 8 mm |
| Mounting (Converter) | Panel mounting with M5×20 screws |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL (specific models vary by approval class) |
FAQ
FAQ
Q1: What applications is the PR6423/011-110 sensor designed for?
A1: It is designed for critical rotating machinery such as turbines, compressors, pumps, gearboxes, and fans to measure shaft displacement and eccentricity.
Q2: What installation precautions are required for the PR6423 sensor?
A2: Ensure a clean mounting surface, proper alignment, and set the initial gap to approximately 0.5 mm for optimal performance.
Q3: Is the CON021 converter hot-swappable?
A3: No, hot-swapping is not supported. Always connect or disconnect under power-off conditions to avoid equipment damage.
Q4: Can the sensor operate in high-temperature environments?
A4: Yes, the PR6423 can function reliably in temperatures up to 180°C, making it suitable for most industrial applications.
Q5: Which converters are compatible with PR6423?
A5: It is compatible with CON021 series converters, especially those configured for 2 mm standard range.
Q6: How do I choose the correct PR6423 model?
A6: Selection depends on installation conditions including thread type (M10 or 3/8-24UNF), armored cable needs, mounting orientation, and cable length.
Q7: Is the output voltage range adjustable?
A7: No, the output range is fixed based on the supply voltage and cannot be externally adjusted.
Q8: What shaft materials are recommended?
A8: Use ferromagnetic materials such as 42CrMo4 (AISI 4140). Non-standard materials may impact accuracy.
