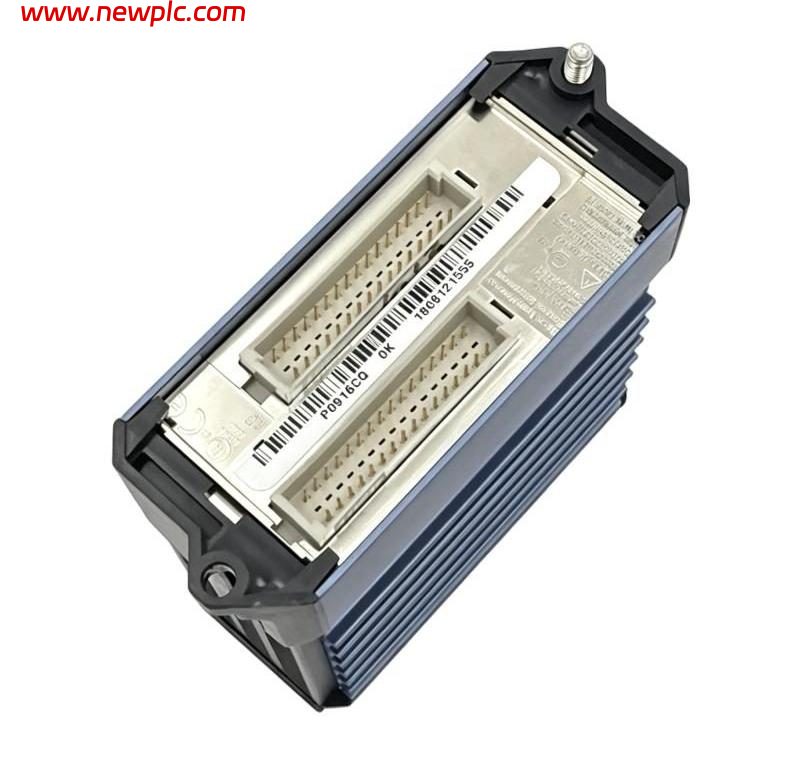

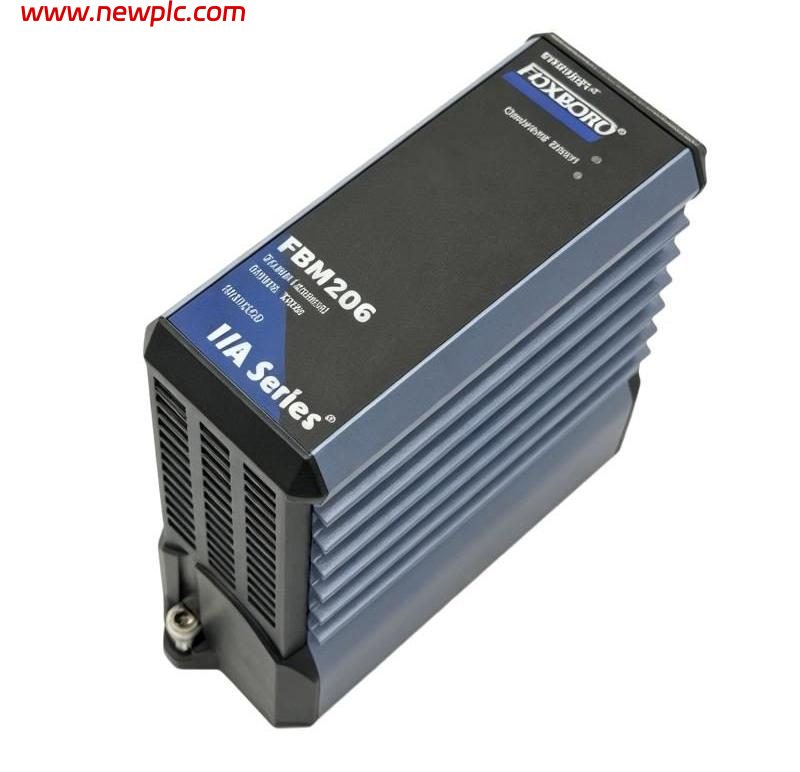

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro (Schneider Electric / Invensys) |
| Model | FBM206 |
| Product Number | P0916CQ |
| Current / Superseding Part Number | RH916CQ |
| Product Type | Pulse Input Interface Module |
| System | Foxboro I/A Series / Standard 200 Series |
| Input Channels | 8 isolated pulse input channels |
| Input Type | Pulse / Frequency Input |
| Input Voltage | 7–27 VDC |
| Maximum Pulse Rate | 25 kHz per channel |
| Channel Isolation | Galvanically isolated between channels and ground |
| Input Impedance | Approx. 10 kΩ |
| Pulse Counting | No missing pulses up to 25 kHz |
| Pulse Rate Accuracy | ±0.01% of reading |
| Fieldbus Communication | Redundant 2 Mbps HDLC Module Fieldbus |
| Main Function | Receives high-speed pulse signals from field devices and transfers pulse data to the Foxboro control system |
| Typical Applications | Turbine meters, vortex meters, speed sensors, solid-state contacts and electromechanical contacts |
| Power Supply | 24 VDC |
| Maximum Power Consumption | Approx. 7 W |
| Mounting | Standard 200 Series modular baseplate |
| Operating Temperature | -20 to +70°C (-4 to +158°F) |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (L × W × H) | 104 × 45 × 102 mm |
| Dimensions with Mounting Lugs | 104 × 45 × 114 mm |
| Approx. Weight | 0.284 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is Foxboro FBM206 P0916CQ?
A: It is a Pulse Input Interface Module designed for Foxboro I/A Series and Standard 200 Series control systems.
Q2: How many pulse input channels does P0916CQ provide?
A: The FBM206 provides 8 independent, galvanically isolated pulse input channels.
Q3: What type of pulse signals can FBM206 accept?
A: The module accepts 7–27 VDC pulse signals and supports pulse rates of up to 25 kHz per channel.
Q4: Are the pulse input channels isolated?
A: Yes. Each channel is galvanically isolated from the other channels and from ground, helping prevent signal interference and ground-loop problems.
Q5: What devices can be connected to FBM206?
A: Typical applications include turbine flowmeters, vortex flowmeters, speed sensors, solid-state contacts and electromechanical contacts that provide compatible pulse outputs.
Q6: What is the maximum pulse frequency?
A: The maximum supported pulse rate is 25 kHz per channel. Pulse counting is designed to operate without missing pulses within the specified range.
Q7: What are the dimensions and weight of P0916CQ?
A: The module measures approximately 104 × 45 × 102 mm (L × W × H), or 104 × 45 × 114 mm including mounting lugs, and weighs approximately 0.284 kg.
Q8: Is P0916CQ still the current part number?
A: P0916CQ is the earlier part number. RH916CQ is the newer/superseding part number for the Foxboro FBM206 Pulse Input Interface Module.
