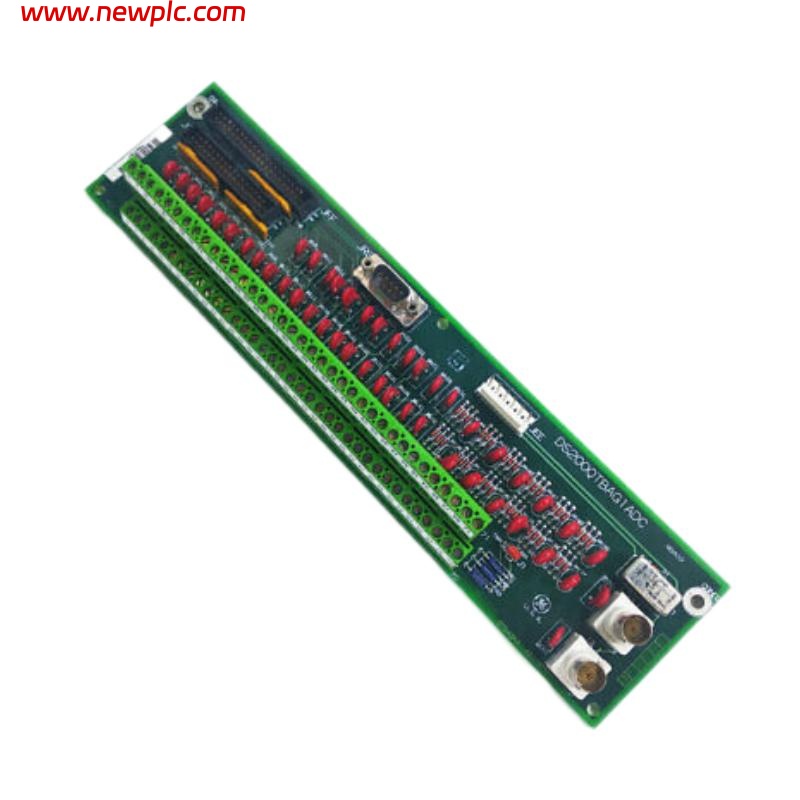

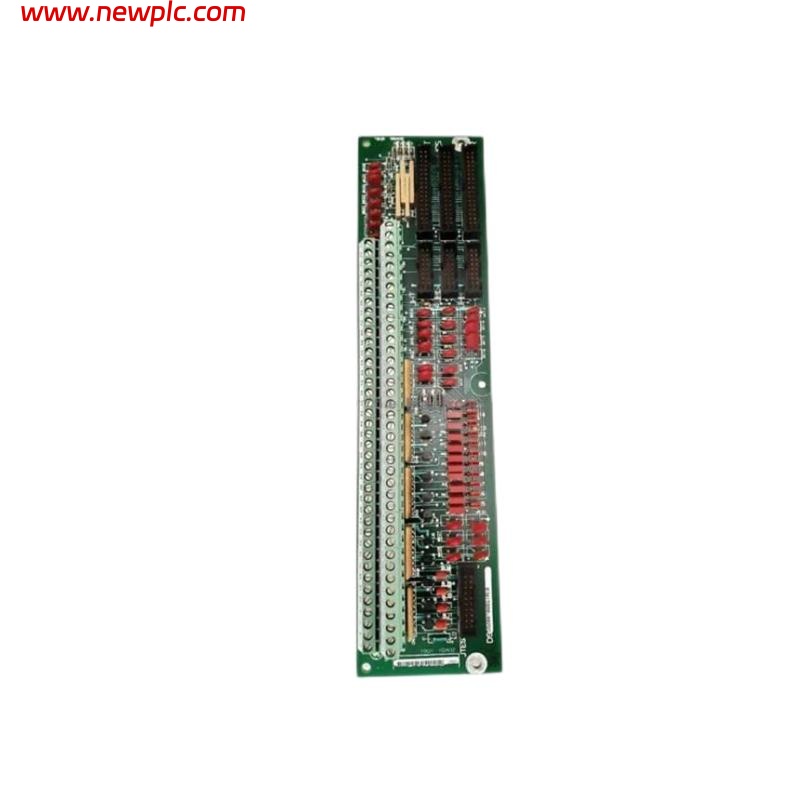

GE DS200QTBAG1ACB Relay & Terminal Board

FAQ

Q1. What is the DS200QTBAG1ACB board used for?
It’s a relay terminal board that provides discrete contact switching and signal termination for turbine control I/O in Mark V systems.

Q2. Which GE control platform does this module belong to?
It’s part of the GE Speedtronic Mark V DS200 series used in industrial and power‑generation turbine controls.

Q3. What are the physical size dimensions of this board?
The approximate footprint is 178 mm wide, 330 mm deep, and 55 mm high.

Q4. How much does the DS200QTBAG1ACB weigh?
It weighs about 0.45 kg (approximately 1.0 lb).

Q5. What kind of relays does this board use?
It uses SPDT relays with contacts rated for 250 VAC or 25 VDC at around 5 A each.

Q6. What environmental conditions can it operate in?
It is suitable for industrial control environments, typically from −20 °C to +70 °C.

Q7. How is this board mounted?
It mounts in a rack inside a Mark V control cabinet and connects to the system backplane and field wiring.

Q8. Is DS200QTBAG1ACB still manufactured by GE?
No, this part is a legacy product that has been discontinued and is mainly available through surplus or refurbished inventory.
