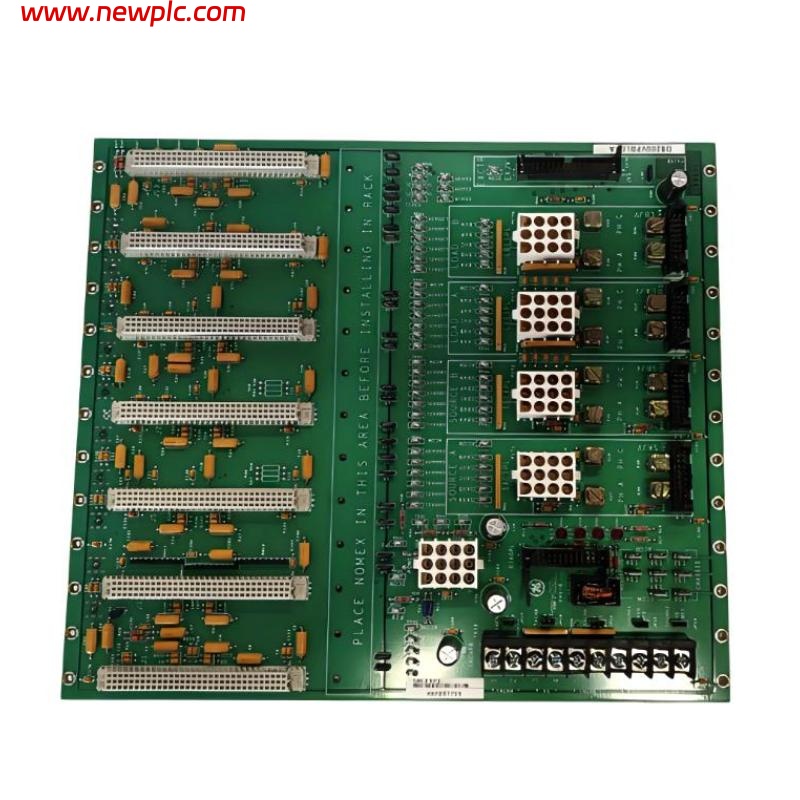

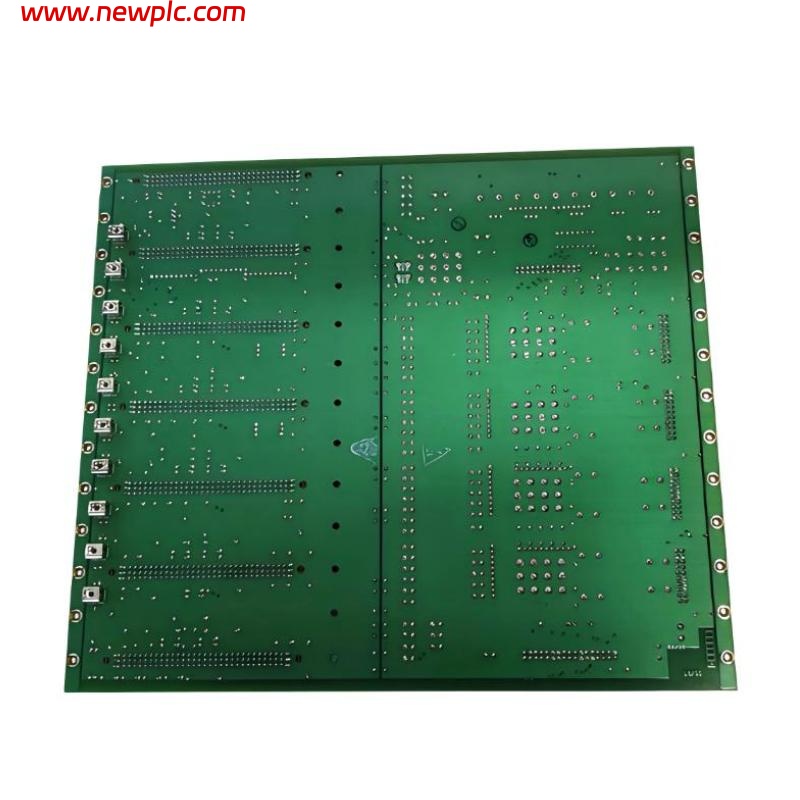

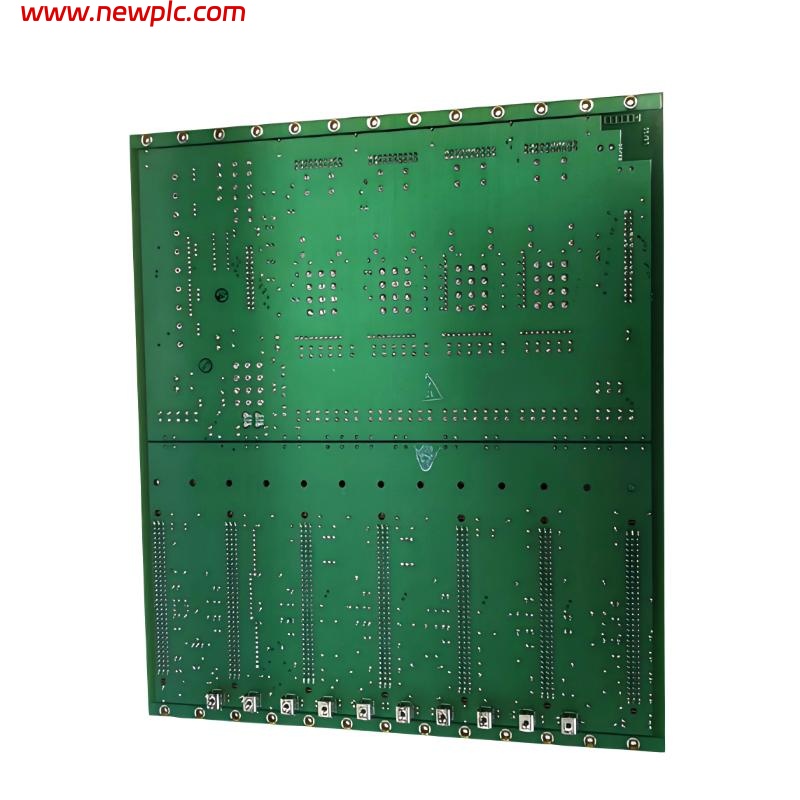

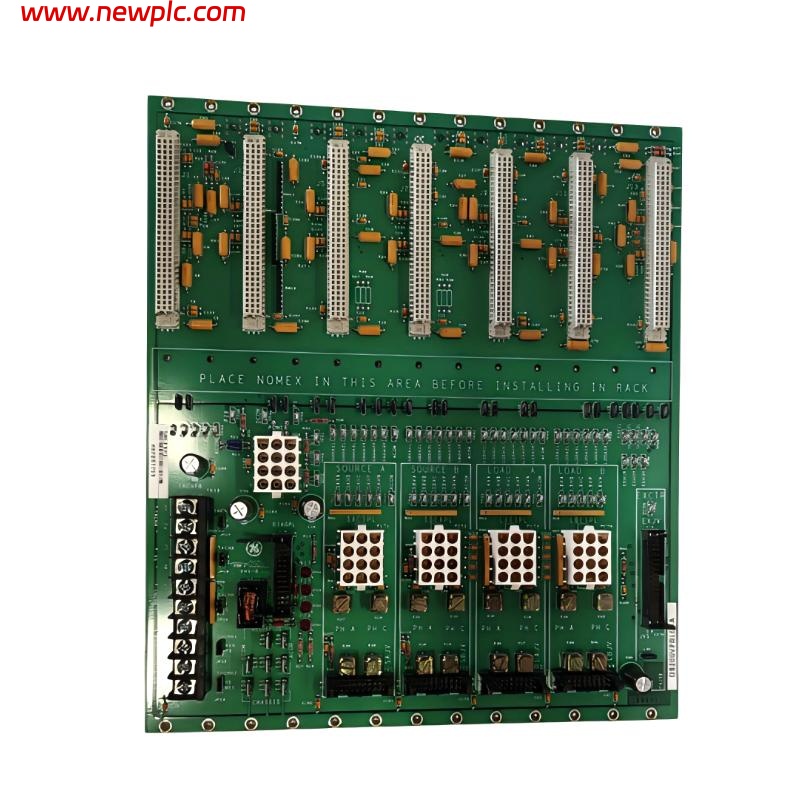

GE DS200VPBLG1AFF Mark V VME Backplane Board

FAQ

Q1: What primary role does the DS200VPBLG1AFF play in a Mark V system?
A1: It acts as the central VME backplane, providing module interconnection, bus routing, and power distribution for the control chassis.

Q2: Does this backplane support mixed-signal modules found in Mark V configurations?
A2: Yes, its multilayer routing structure accommodates both digital and analog signal paths used by Mark V control modules.

Q3: How does the board maintain signal integrity across multiple slots?
A3: It uses controlled-impedance layers, ground shielding, and carefully balanced trace geometry to reduce crosstalk and noise.

Q4: What type of connectors are used on this backplane?
A4: It uses standard VME high-reliability connectors along with auxiliary headers for dedicated system signals.

Q5: Is the board dependent on active components for operation?
A5: No, it is a passive backplane; it relies on system modules for logic and processing.

Q6: How is power distributed across modules through this board?
A6: Power rails are routed through isolated distribution channels with filtering points to stabilize voltages.

Q7: Can this backplane be used interchangeably with other Mark series platforms?
A7: It is specifically designed for the Mark V VME chassis and is not intended for cross-series interchange.

Q8: What installation considerations are important during replacement?
A8: Ensure proper grounding, clean connector interfaces, correct module slot alignment, and complete power isolation before installation.

DS200VPBLG1AFF GE Mark V VME Backplane Board

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
