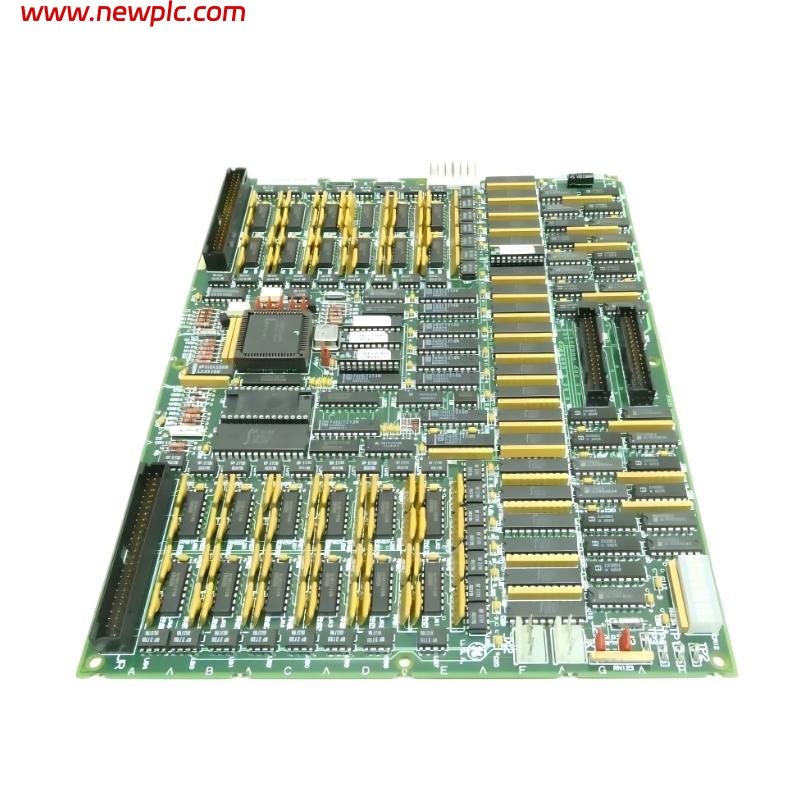

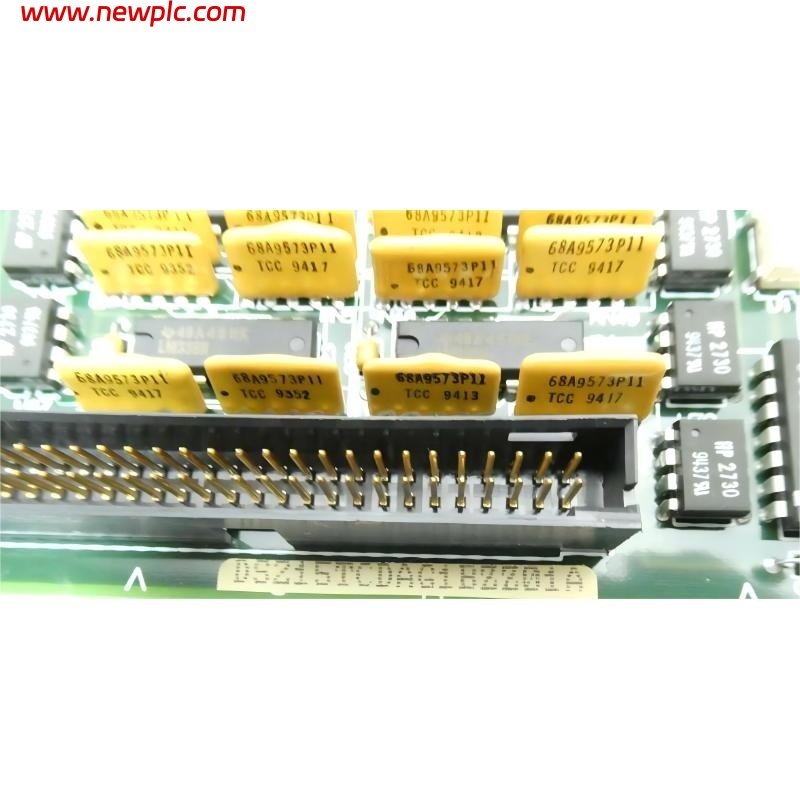

GE DS215TCDAG1BZZ01A DS200TCDAG1BDB Printed Circuit Board

FAQ

Q1: What types of signals does this PCB handle?
A1: It handles analog inputs/outputs, digital inputs/outputs, and discrete signals for turbine control and monitoring applications.

Q2: Is electrical isolation provided between sections?
A2: Yes, optical and reinforced isolation separates input, output, and logic sections to maintain signal integrity.

Q3: What is the response time for digital and analog channels?
A3: Digital channels respond in less than 5 ms, and analog channels respond in less than 20 ms under typical conditions.

Q4: Can the analog channels handle current signals?
A4: The board is designed for voltage signals (0–10 VDC); current signals require external voltage conversion.

Q5: How accurate are the analog outputs?
A5: Analog outputs provide ±0.2% full-scale accuracy using high-precision DACs and hardware filtering.

Q6: Are relay outputs protected against voltage spikes?
A6: Yes, integrated suppression circuitry protects relay contacts from inductive load transients.

Q7: Can multiple PCBs be installed in the same rack?
A7: Yes, multiple boards can operate in parallel if slot allocation and power budget are respected.

Q8: Does the PCB require firmware or configuration?
A8: No onboard firmware is required; all signal processing and configuration are managed by the main control system.

DS200TCDAG1BDB DS215TCDAG1BZZ01A DS215TCDAG1BZZ01A DS200TCDAG1BDB GE Printed Circuit Board

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
