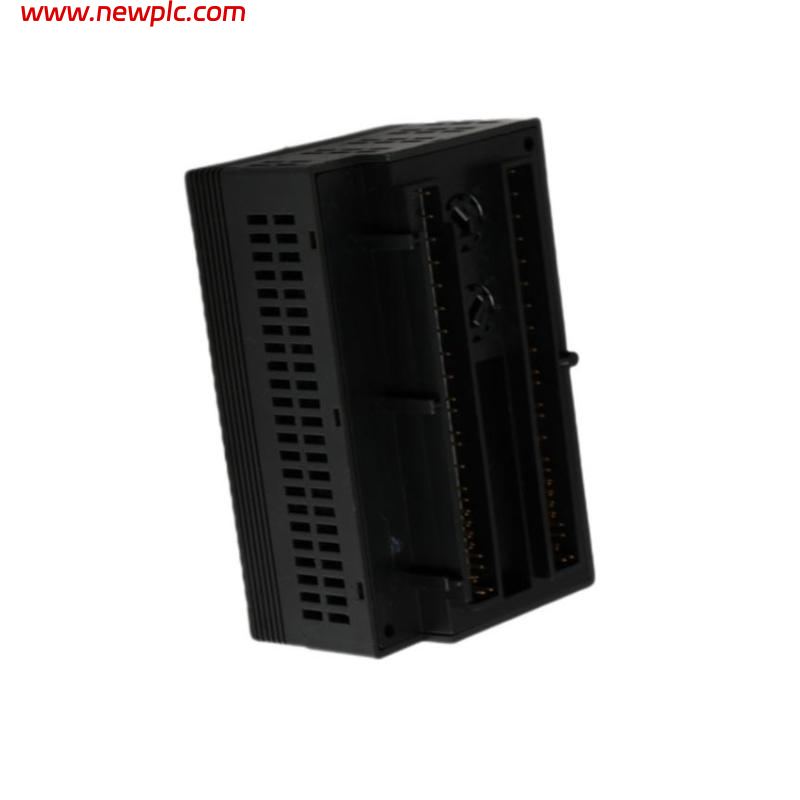

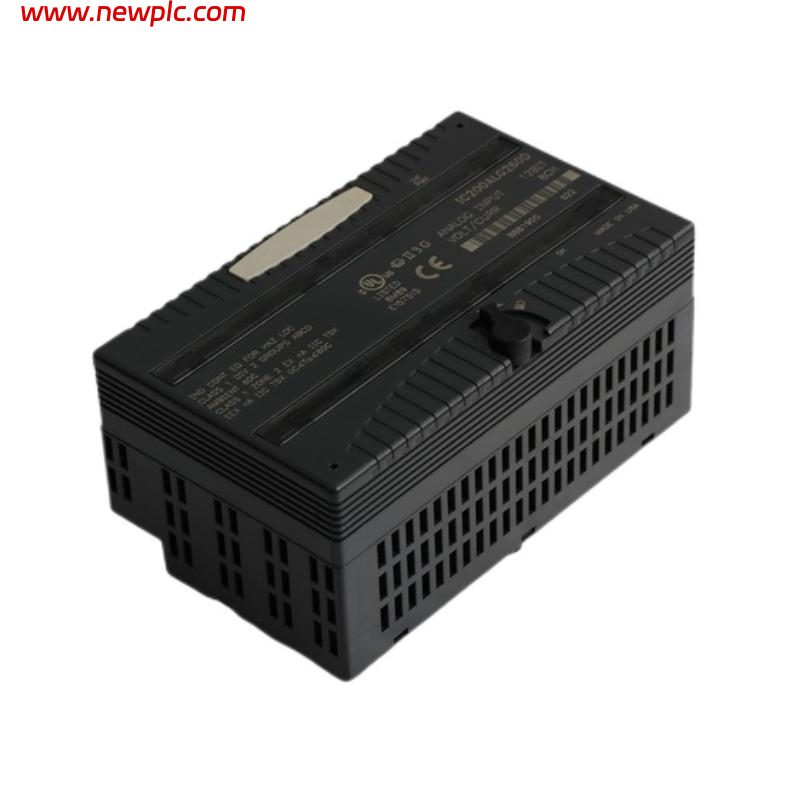

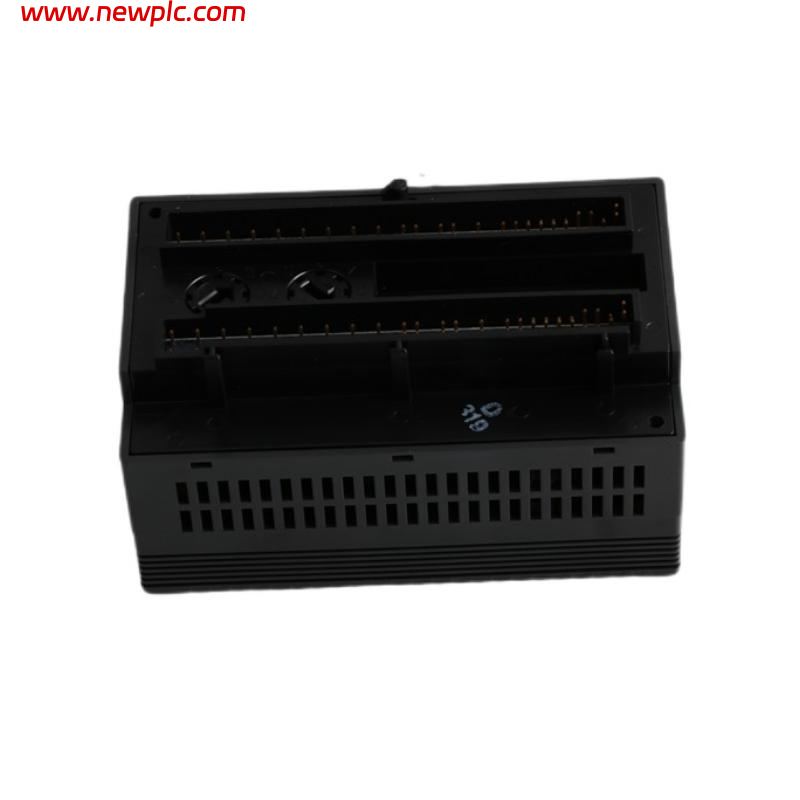

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC200ALG260J |
| Product Type | Analog Voltage/Current Input Module |
| Series | VersaMax I/O |
| Function | Acquires analog voltage or current signals from field devices and transfers the data to the PLC CPU |
| Number of Input Channels | 8 single-ended analog input channels |
| Input Types | Voltage or Current (software configurable) |
| Supported Voltage Ranges | ±10 VDC (default), 0–10 VDC |
| Supported Current Range | 4–20 mA |
| A/D Resolution | 12-bit |
| Channel Update Rate | 0.4 ms per channel |
| Input Filter Response Time | 5 ms |
| Input Impedance (Voltage Mode) | 1 MΩ minimum |
| Input Impedance (Current Mode) | 250 Ω nominal |
| Accuracy @ 25°C | ±0.1% of full scale (typical) |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute (field side to logic/frame ground) |
| Channel-to-Channel Isolation | None |
| Backplane Current Consumption | 130 mA @ 5 VDC |
| External Power Supply | Not required (module powered from VersaMax backplane) |
| LED Indicators | OK, INT PWR |
| Diagnostics | Open-wire detection (current mode), module diagnostics, range diagnostics |
| Module ID | FFFF9008 |
| Mounting | VersaMax Carrier Base |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC and Distributed I/O |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 110 × 66.8 × 50 mm (4.33 × 2.63 × 1.97 in.) |
| Weight | Approx. 0.25 kg (0.55 lb) |
| Hardware Revision | J |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200ALG260J used for?
The IC200ALG260J is an 8-channel analog input module used to collect voltage or current signals from field instruments such as pressure transmitters, temperature transmitters, flow meters, and level sensors. The converted digital data is transferred to the VersaMax PLC for monitoring and control.
Q2: How many analog input channels does the IC200ALG260J provide?
The module provides eight single-ended analog input channels. Each channel can be configured for voltage or current measurement, allowing multiple process signals to be monitored simultaneously.
Q3: What input signal ranges are supported?
The IC200ALG260J supports ±10 VDC, 0–10 VDC, and 4–20 mA analog input ranges. Channel configuration is performed through the PLC configuration software.
Q4: Does the IC200ALG260J require an external power supply?
No. The module receives its operating power directly from the VersaMax backplane and does not require a separate external power supply for the module itself. Field transmitters should be powered according to their individual requirements.
Q5: What diagnostic features are available?
The module includes OK and INT PWR LEDs for status indication and supports module diagnostics, input range diagnostics, and open-wire detection when operating in current input mode.
Q6: What is the resolution of the IC200ALG260J?
The module uses a 12-bit analog-to-digital converter (ADC), providing reliable measurement accuracy for common industrial analog control applications.
Q7: What does the “J” revision indicate?
The “J” suffix identifies the hardware revision of the IC200ALG260 module. Revision J maintains the same electrical specifications, mechanical dimensions, and VersaMax compatibility as previous revisions while incorporating manufacturing and reliability improvements.
Q8: What should be checked before replacing an IC200ALG260J module?
Before replacing the module, verify the VersaMax carrier compatibility, configured input ranges (voltage or current), field wiring, analog scaling parameters, PLC hardware configuration, and calibration settings. Performing these checks helps ensure accurate signal acquisition and stable system operation after installation.
