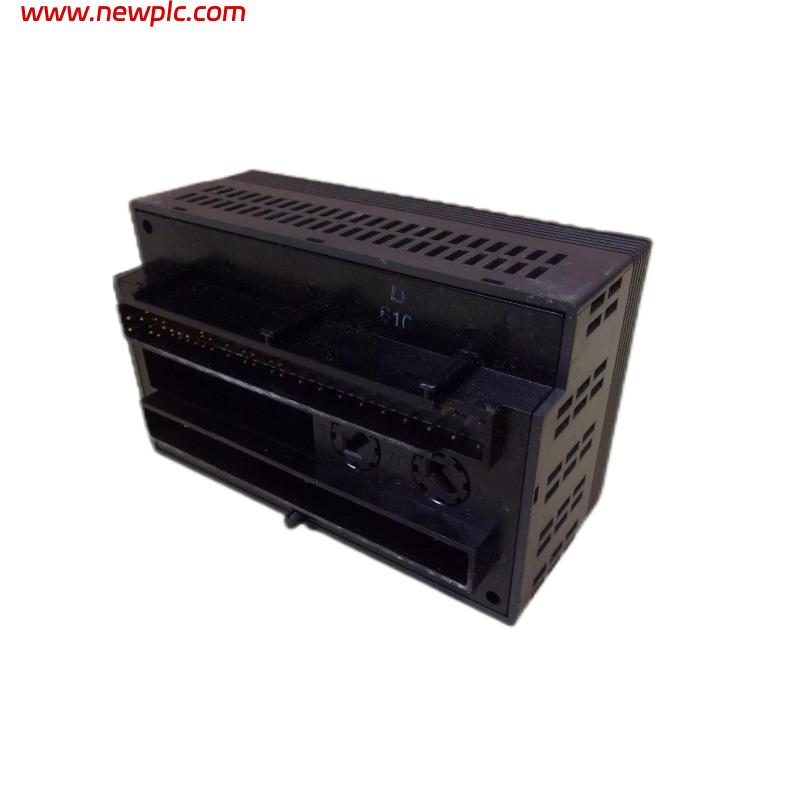

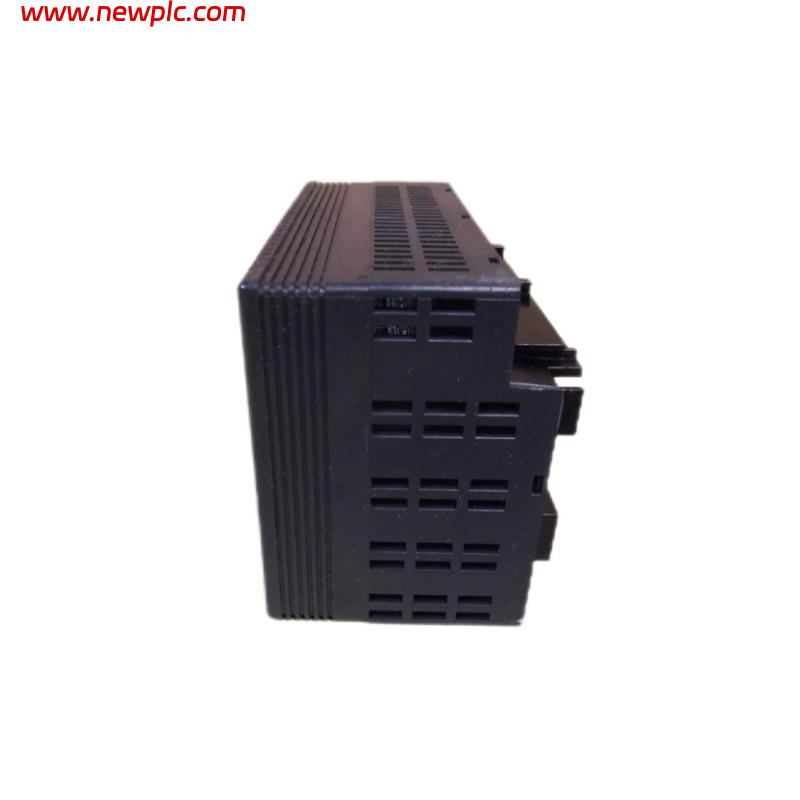

GE IC200MDD841-AD Mixed Discrete High-Speed Counter Module

FAQ

Q1: What is the GE Fanuc IC200MDD841-AD used for?
The IC200MDD841-AD is a mixed discrete I/O and high-speed counter module designed for VersaMax PLC systems. It combines digital inputs, digital outputs, high-speed counting, pulse train generation, and PWM functions in a single compact module, making it ideal for motion control, material handling, packaging, and positioning applications.

Q2: How many inputs and outputs does the IC200MDD841-AD provide?
The module provides 20 digital 24 VDC inputs and 12 digital 24 VDC outputs, for a total of 32 configurable I/O points. In its default configuration, it includes four high-speed counter channels along with standard digital I/O.

Q3: What is the maximum counting speed of the high-speed counters?
Each high-speed counter can process input signals at frequencies up to 80 kHz, allowing accurate counting of encoder pulses, proximity sensors, and other high-speed devices.

Q4: Does the IC200MDD841-AD support PWM and pulse train outputs?
Yes. Four outputs can be configured as PWM outputs, pulse train outputs, ramping pulse train outputs, or dedicated high-speed counter outputs. PWM frequencies are selectable from 22 Hz to 2 kHz, while pulse train outputs support frequencies up to 5 kHz.

Q5: Does the module require an external power supply?
Yes. The module electronics receive operating power from the VersaMax backplane, but the field I/O circuits require an external 18–30 VDC (24 VDC nominal) power supply.

Q6: What diagnostic features are available?
The IC200MDD841-AD provides 13 words of diagnostic status data, an OK LED, a FLD PWR LED, and individual I/O status LEDs to simplify troubleshooting and monitor module operation.

Q7: What does the “AD” revision indicate?
The “AD” suffix identifies the hardware revision of the IC200MDD841 module. Revision AD corresponds to Firmware Version 1.10, released as an early production update while maintaining compatibility with the VersaMax platform.

Q8: What should be checked before replacing an IC200MDD841-AD module?
Before replacement, verify the VersaMax carrier compatibility, external 24 VDC power supply, high-speed counter configuration, encoder or sensor wiring, PWM/pulse output settings, PLC hardware configuration, and application parameters to ensure proper operation after installation.
