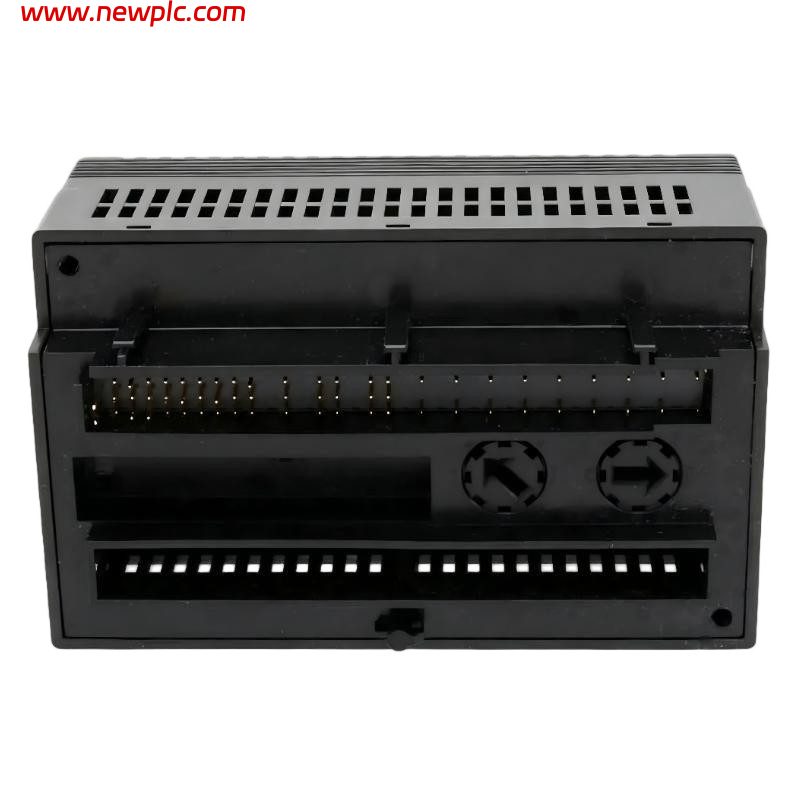

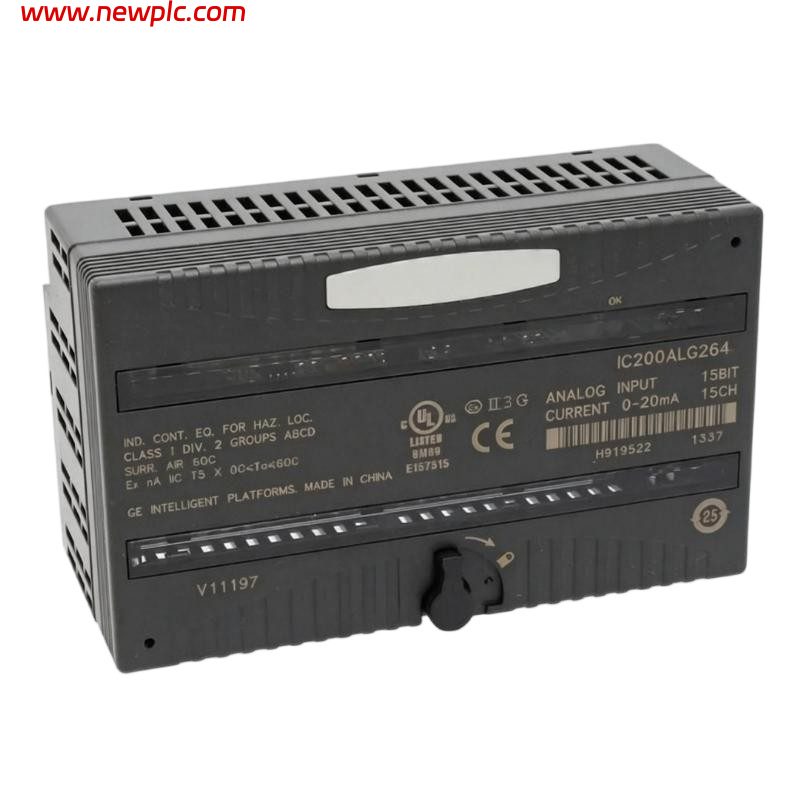

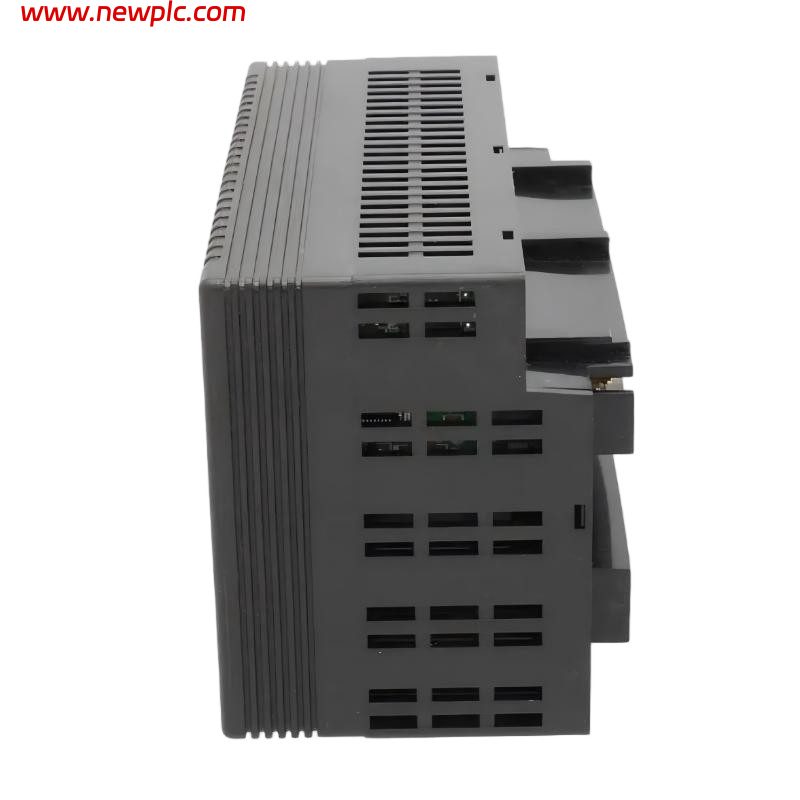

GE IC200ALG264H Analog Current Input Module

FAQ

Q1: What is the GE IC200ALG264H used for?
The IC200ALG264H is used to collect analog current signals from industrial transmitters and sensors, such as pressure transmitters, flow meters, level sensors, and other 4–20 mA process instruments, in VersaMax PLC systems.

Q2: How many analog input channels does the IC200ALG264H provide?
The module provides 15 single-ended analog current input channels arranged in one input group.

Q3: What input signals are supported by the IC200ALG264H?
The module supports standard industrial current signals of 0–20 mA and 4–20 mA. The input range can be selected according to the required application configuration.

Q4: What is the resolution of the IC200ALG264H?
The module provides 15-bit analog-to-digital conversion resolution, with approximately 0.5 μA per count for 4–20 mA signals and 0.625 μA per count for 0–20 mA signals.

Q5: Does the IC200ALG264H require an external power supply?
No. The module receives operating power directly from the VersaMax backplane and does not require a separate external supply.

Q6: What diagnostic features are available?
The IC200ALG264H provides LED status indication, including an OK LED for module operation and an INT PWR LED to indicate internally generated field power status.

Q7: What are the dimensions and weight of the IC200ALG264H?
The module measures approximately 50 × 110 × 66.8 mm and weighs approximately 0.23 kg.

Q8: What are the advantages of the GE IC200ALG264H?
The IC200ALG264H offers high-density 15-channel analog input capability, 15-bit resolution, support for standard 4–20 mA instrumentation signals, fast conversion speed, electrical isolation, compact VersaMax design, and reliable operation in industrial process control systems.

GE IC200ALG264H
