Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation Solutions) |

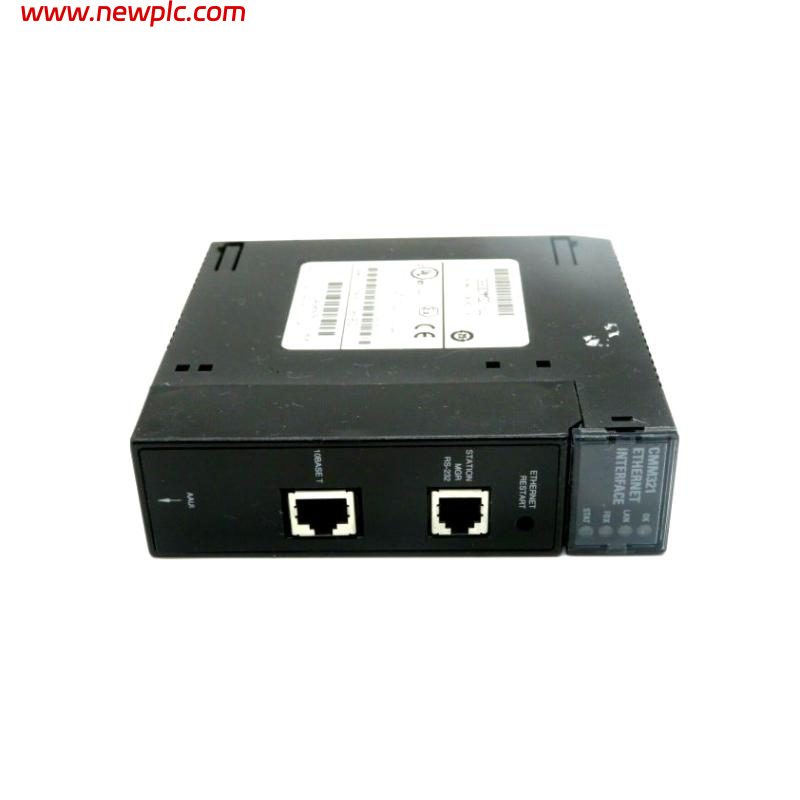

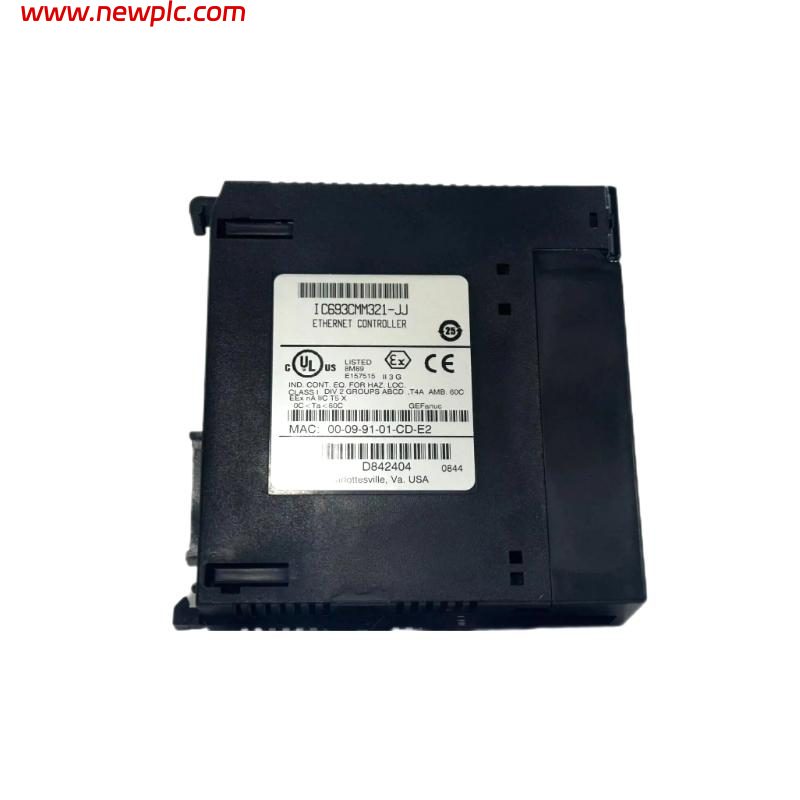

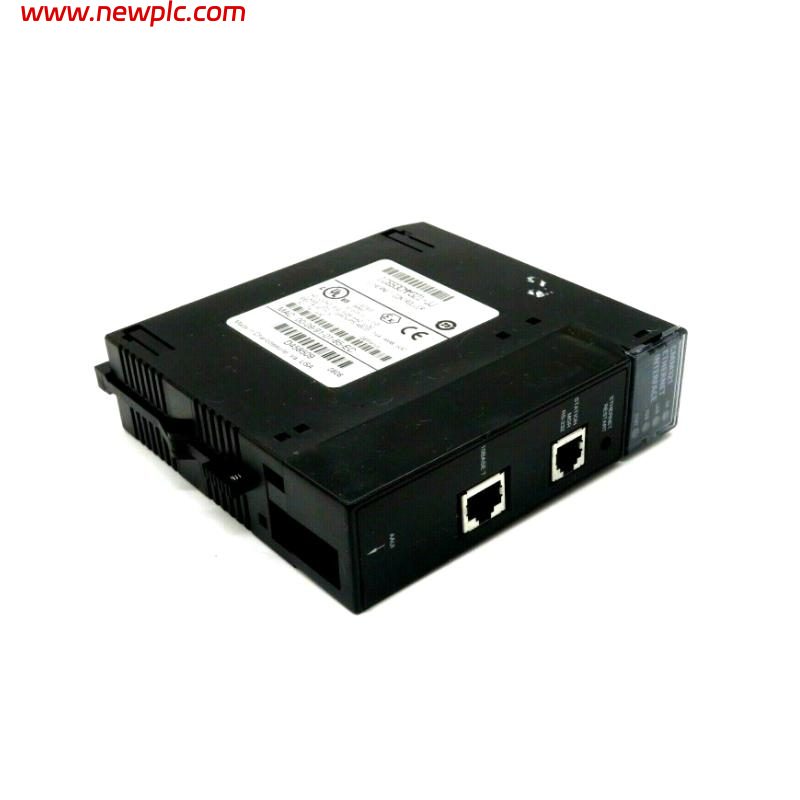

| Product Model | IC693CMM321-JJ |
| Product Type | Ethernet TCP/IP Interface Module |
| Series | Series 90-30 PLC |
| Communication Protocol | SRTP over TCP/IP |
| Network Interface | Ethernet LAN |
| Ethernet Port | 1 × AAUI (Attachment Unit Interface); external transceiver required |
| Maintenance Port | 1 × RJ-11 RS-232 Station Manager Port |
| Firmware Port | 1 × 15-pin RS-485 Software Loader Port |
| Maximum Server Connections | 16 simultaneous server connections |
| Module Function | Client/Server Ethernet communication |
| Supported Functions | PLC-to-PLC communication, PLC-to-HMI/SCADA communication, Host computer communication, Data transfer using COMMREQ function block |
| Compatible PLC Platform | GE Fanuc Series 90-30 PLC |
| Compatible Software | Proficy Machine Edition, Logicmaster 90, Station Manager Utility |
| Status Indicators | OK, LAN, SER, STAT LEDs |
| Reset Function | Restart button with LED test and maintenance modes |
| Backplane Interface | Series 90-30 PLC Baseplate |
| Mounting Type | Rack-mounted I/O module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W × H × D) | 37 × 128 × 140 mm |
| Weight | Approximately 0.38 kg |
| Country of Origin | USA |
| Revision | JJ |
| Application | Ethernet networking for PLCs, HMI, SCADA, industrial control, and data acquisition systems |
| Condition | New and Original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the GE IC693CMM321-JJ used for?
The IC693CMM321-JJ provides Ethernet connectivity for GE Series 90-30 PLCs, allowing communication with SCADA systems, HMIs, engineering workstations, and other PLCs over a TCP/IP network.
Q2: Which communication protocol does the module support?
The module supports SRTP (Service Request Transfer Protocol) over TCP/IP, enabling reliable industrial Ethernet communications between compatible GE PLC products and host systems.
Q3: How many Ethernet connections can the IC693CMM321-JJ support?
The module supports up to 16 simultaneous server connections, allowing multiple HMIs, SCADA systems, or engineering stations to communicate with the PLC concurrently.
Q4: What communication ports are available on the module?
The IC693CMM321-JJ includes one AAUI Ethernet network port, one RJ-11 RS-232 Station Manager port, and one 15-pin RS-485 Software Loader port for configuration and firmware updates.
Q5: What are the dimensions and weight of the IC693CMM321-JJ?
The module measures approximately 37 × 128 × 140 mm and weighs approximately 0.38 kg.
Q6: What diagnostic features are included?
The module features OK, LAN, SER, and STAT LED indicators, along with a front-panel Restart button that supports LED testing, restart modes, and maintenance functions.
Q7: Is the IC693CMM321-JJ compatible with all Series 90-30 CPUs?
It is compatible with Series 90-30 PLC systems, but some firmware features require specific CPU firmware revisions. The JJ revision can be upgraded to later firmware revisions following GE’s recommended upgrade procedures.
Q8: What are the advantages of the GE IC693CMM321-JJ?
The IC693CMM321-JJ provides reliable industrial Ethernet communication, supports client/server operation, enables high-speed data exchange with host systems, offers up to 16 concurrent server connections, includes built-in diagnostic LEDs, and integrates seamlessly with the GE Series 90-30 PLC platform.
