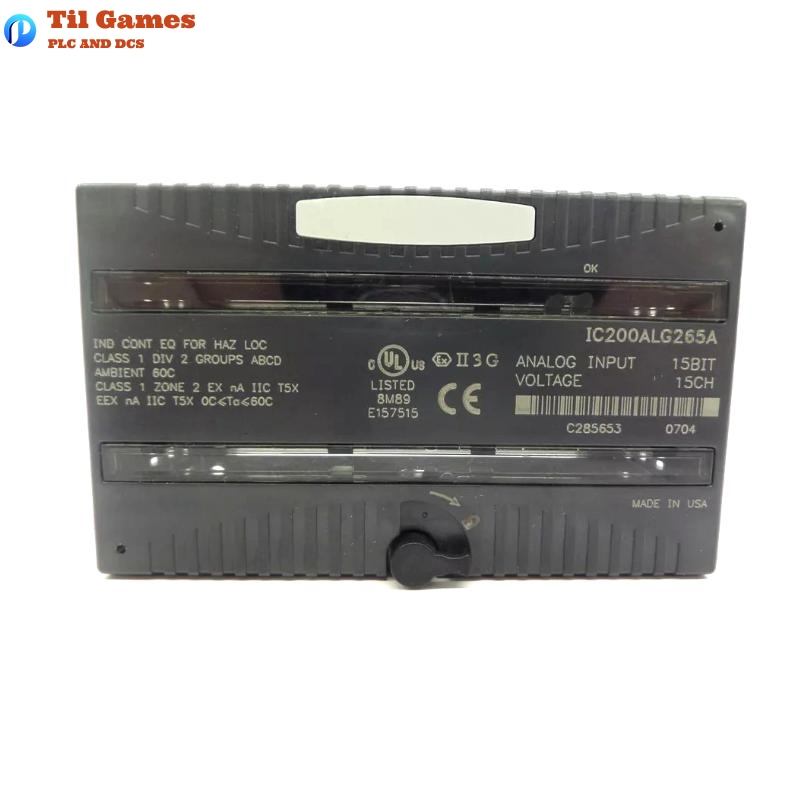

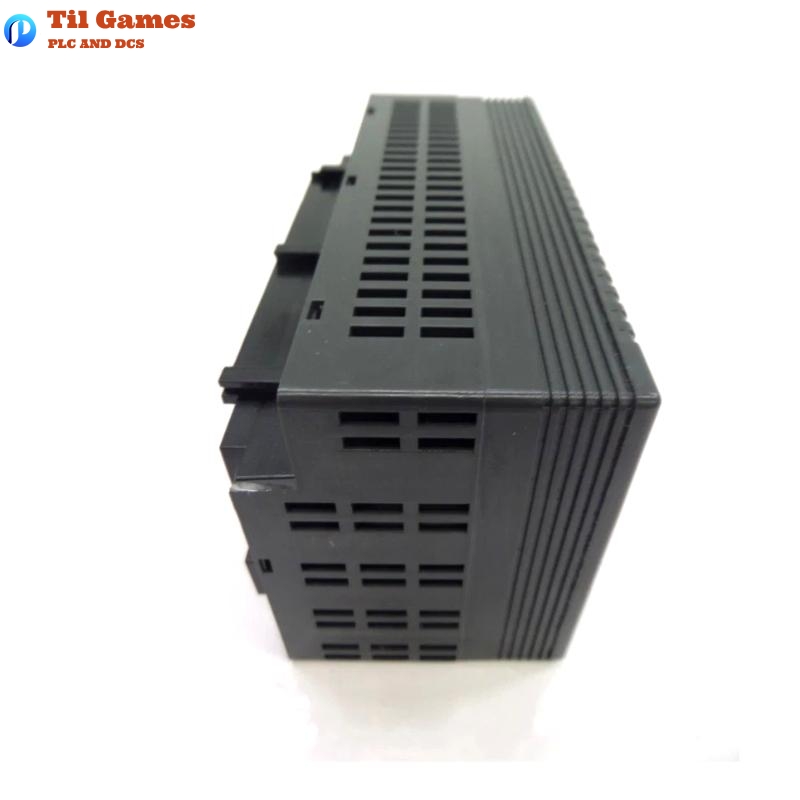

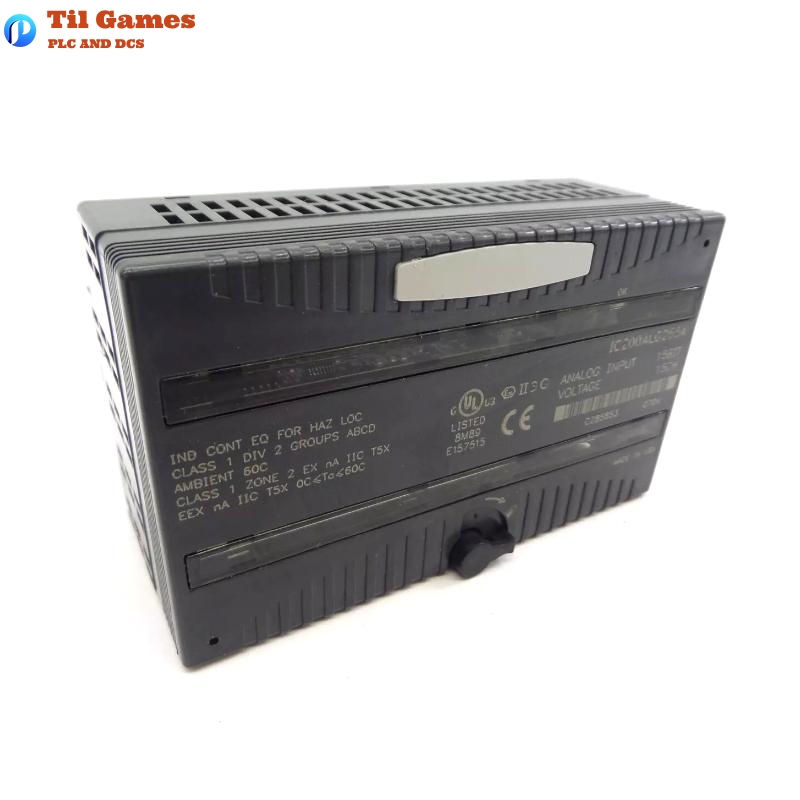

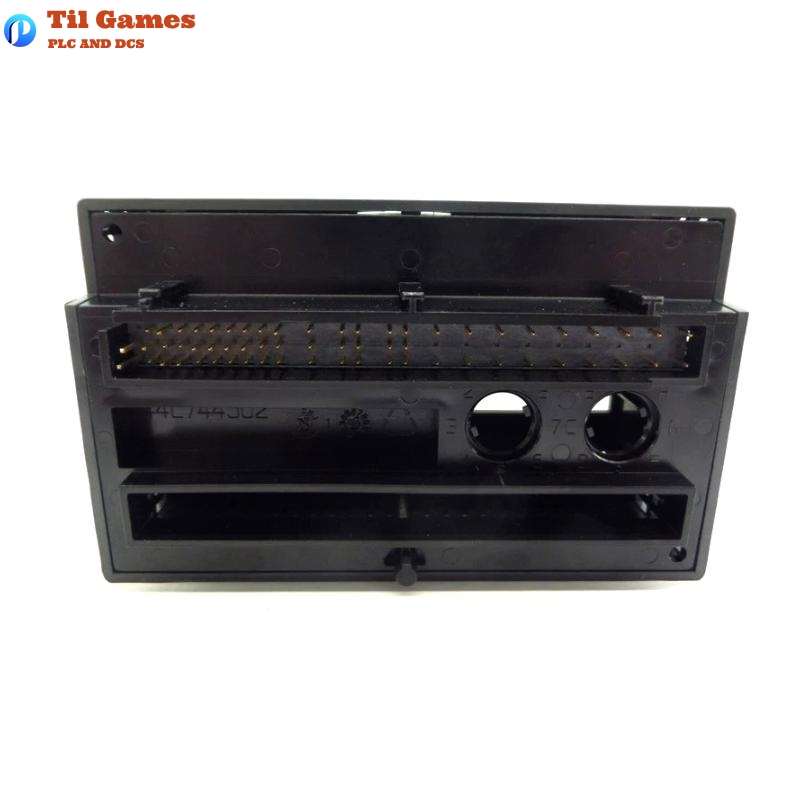

GE IC200ALG265 VersaMax Voltage Analog Input Module

Frequently Asked Questions (FAQ)

Q1: What is the input voltage range supported by the IC200ALG265 module?
A1: The IC200ALG265 supports a voltage input range from -10V to +10V.

Q2: How many channels does the IC200ALG265 module have?
A2: It has 15 single-ended voltage input channels grouped together.

Q3: Does the module provide isolation between channels?
A3: No, the module provides optical isolation between user input and logic/frame ground but not between channels.

Q4: What is the resolution of the IC200ALG265 module?
A4: It has a 15-bit resolution, equating to 0.3125 mV per count.

Q5: Is an external power supply required for the module operation?
A5: No, it operates using backplane power; external power is not required.

Q6: What is the level of input overvoltage protection provided?
A6: The module protects against input voltages up to ±30VDC.

Q7: Can the IC200ALG265 be used in safety applications?
A7: Yes, it is TÜV approved for use in safety-relevant portions of a GMR system.

Q8: What happens if the module detects an internal hardware fault?
A8: It turns off the OK LED and reports the fault to the CPU/NIU. The module must be power cycled or replaced.

GE IC200ALG265 VersaMax Voltage Analog Input Module
