Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

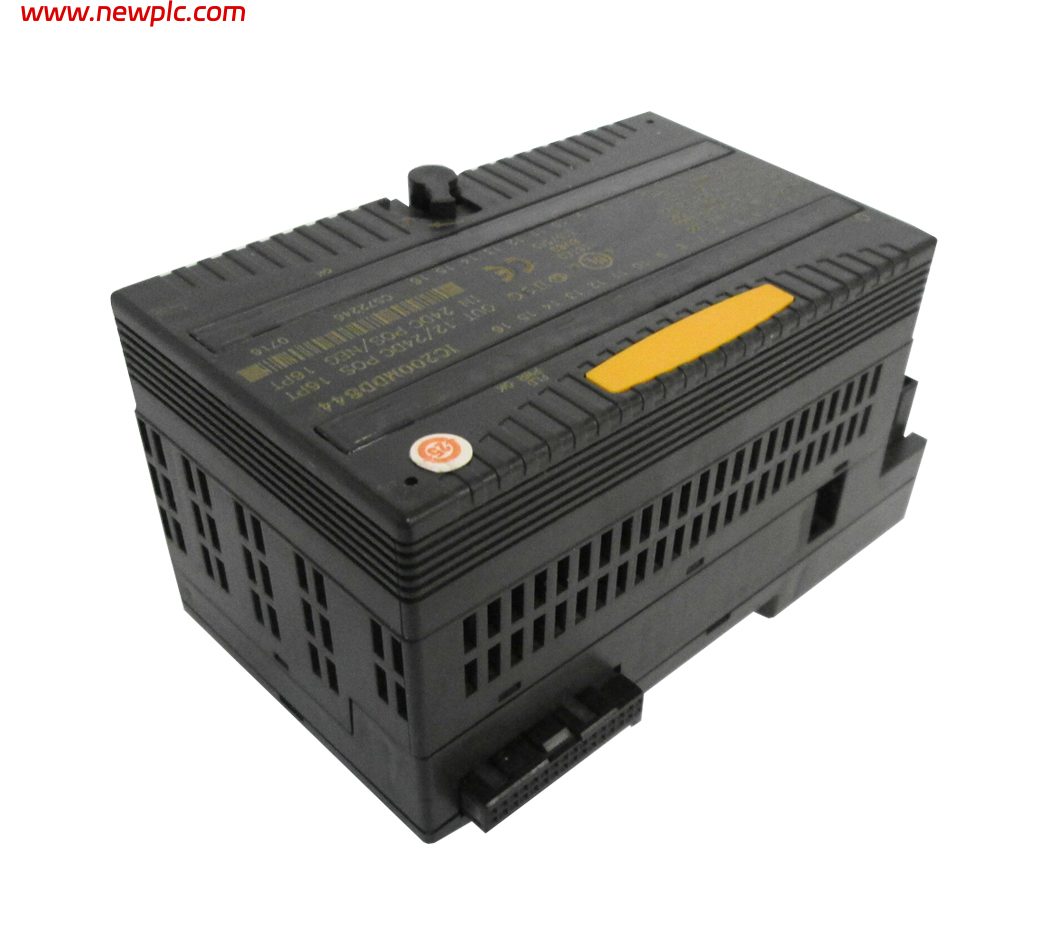

| Product Model | IC200MDD840F |
| Product Type | Discrete Mixed I/O Module |
| Series | VersaMax I/O |
| Function | Combines 24 VDC digital inputs and relay outputs in one compact module for industrial control applications |
| Input Type | 24 VDC Positive Logic Input |
| Number of Input Points | 20 points |
| Input Groups | 2 groups of 10 inputs |
| Input Voltage Range | 18–30 VDC |
| Nominal Input Voltage | 24 VDC |
| ON-State Voltage | 15–30 VDC |
| OFF-State Voltage | 0–5 VDC |
| ON-State Current | 2.0–5.5 mA |
| OFF-State Current | 0–0.5 mA |
| Input Impedance | 10 kΩ maximum |
| Output Type | Relay Output |
| Number of Output Points | 12 points |
| Output Configuration | Grouped Form A (Normally Open) relay contacts |
| Output Voltage Range | 5–265 VAC / 5–125 VDC |
| Output Frequency Range | 47–63 Hz (AC) |
| Output Current Rating | 2.0 A maximum per point (resistive load) |
| Maximum Module Output Current | 8.0 A maximum |
| DC Output Rating | 2.0 A maximum for 5–30 VDC; 0.2 A maximum for 31–125 VDC |
| Minimum Load Current | 10 mA per point |
| Output Isolation | Grouped relay outputs |
| Input/Output Isolation | No channel-to-channel isolation |
| Output Protection | No internal fuses or snubbers |
| Input Response Time | 0.5 ms ON / 10 ms OFF maximum |
| Output Response Time | 10 ms maximum |
| External Power Supply | Required for field-side devices |
| Backplane Current Consumption | 80 mA maximum @ 5 VDC |
| LED Indicators | Individual I/O status LEDs and OK LED |
| Module ID | FFFF8004 |
| Carrier Requirement | Requires IC200CHSxxx series VersaMax carrier base |
| Mounting Method | DIN rail mounting |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC and Distributed I/O |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 110 × 66.8 × 50 mm (4.33 × 2.63 × 1.97 in.) |
| Weight | Approx. 0.28 kg (0.62 lb) |
| Hardware Revision | F |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200MDD840F used for?
The IC200MDD840F is used in VersaMax PLC systems to collect 24 VDC digital input signals and control external devices through relay outputs. It is commonly applied in machine automation, control panels, and industrial process systems.
Q2: How many input and output channels does the IC200MDD840F provide?
The module provides 20 digital input points and 12 relay output points, combining both input and output functions in one VersaMax module.
Q3: What type of input signals does the IC200MDD840F support?
The input section supports 24 VDC positive logic inputs with an operating range of approximately 18–30 VDC. It can be connected to switches, sensors, push buttons, and other DC field devices.
Q4: What type of outputs are available on the IC200MDD840F?
The module provides 12 relay outputs with Form A normally open contacts. These relay outputs can switch both AC and DC loads within the specified voltage and current limits.
Q5: What is the maximum current rating of the relay outputs?
Each relay output supports up to 2.0 A for resistive loads. The module supports loads from 5–265 VAC and 5–30 VDC, with reduced current capability for higher-voltage DC applications.
Q6: Does the IC200MDD840F require an external power supply?
Yes. The module receives logic power from the VersaMax backplane, but external field power is required for connected input devices and relay-controlled loads.
Q7: What is the difference between IC200MDD840F and standard separate I/O modules?
The IC200MDD840F combines digital inputs and relay outputs into one compact module, saving installation space and simplifying system wiring compared with using separate input and output modules.
Q8: What should be checked before replacing an IC200MDD840F module?
Before replacement, verify the VersaMax carrier compatibility, 24 VDC input wiring, relay output load requirements, external power supply, terminal connections, and PLC configuration settings to ensure proper operation after installation.
