Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation Solutions) |

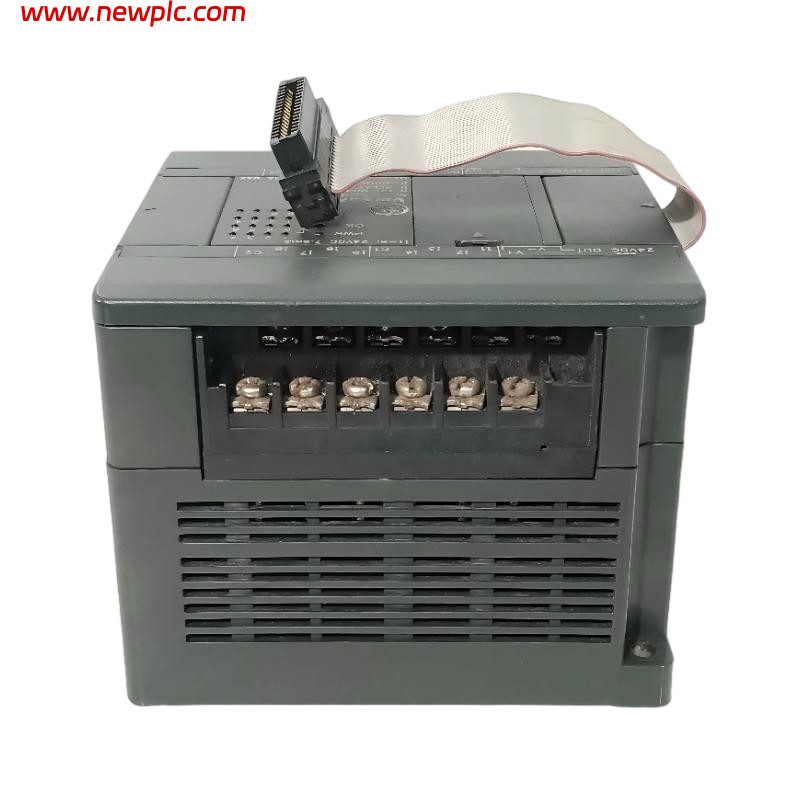

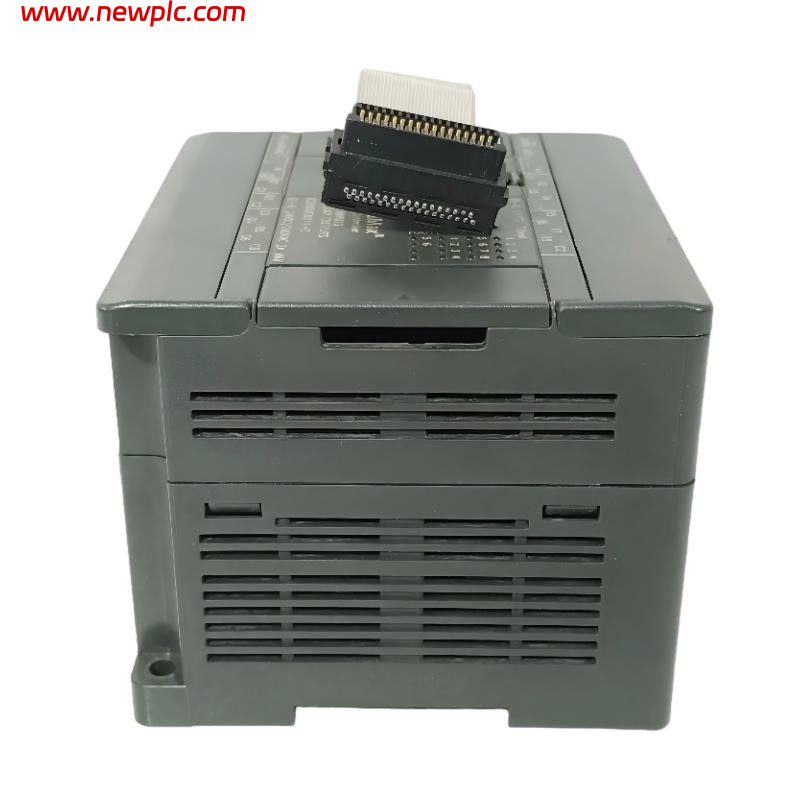

| Product Model | IC200UEX011 |
| Product Type | VersaMax Micro PLC Expansion Unit |
| Series | VersaMax Micro PLC |
| Total I/O Points | 14 Points |
| Digital Inputs | 8 × 24 VDC Positive/Negative Logic Inputs |
| Digital Outputs | 6 × Form A (SPST) Relay Outputs |
| Input Voltage | 24 VDC Nominal |
| Input Voltage Range | 0–30 VDC |
| Input Logic | Positive Logic / Negative Logic |
| Input Current | 7.5 mA typical per input |
| Input Impedance | 2.8 kΩ |
| Input Response Time | Configurable: 0.5–20 ms (Normal Input); 100 μs (High-Speed Counter Mode) |
| Input Isolation | 1500 VAC RMS (Field Side to Logic Side) |
| Relay Contact Type | Normally Open (Form A, SPST) |
| Relay Output Rating | 2 A per point |
| Relay Switching Voltage | 5–250 VAC or 5–30 VDC |
| Internal 24 VDC Output | Isolated 24 VDC, 200 mA maximum (for sensors and field devices) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Input Power Consumption | 13 VA |
| Hold-up Time | 10 ms (85–100 VAC) |
| Inrush Current | 18 A @120 VAC, 30 A @200 VAC, 40 A @265 VAC (maximum) |
| Expansion Capacity | Supports VersaMax Micro PLC expansion systems |

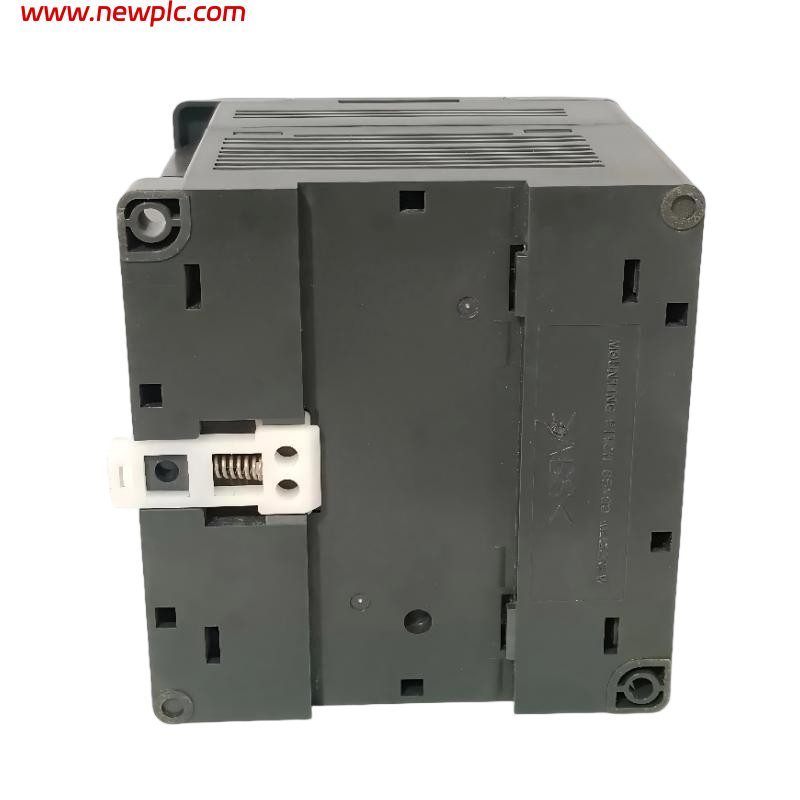

| Mounting Type | DIN Rail or Panel Mount |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions (W × H × D) | 95 × 90 × 76 mm |
| Weight | 0.37 kg |
| Application | Industrial machine control, factory automation, OEM equipment, process control |
| Condition | New and Original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the IC200UEX011 used for?
The IC200UEX011 expands the I/O capacity of a VersaMax Micro PLC by adding 8 digital inputs and 6 relay outputs for controlling field devices such as sensors, relays, contactors, solenoid valves, and indicator lamps.
Q2: What types of inputs and outputs does the module provide?
The module provides 8 positive/negative logic 24 VDC digital inputs and 6 normally open (Form A) relay outputs rated at 2 A each.
Q3: What power supply does the IC200UEX011 require?
It operates from a 100–240 VAC, 50/60 Hz power source and consumes approximately 13 VA during operation.
Q4: What are the dimensions and weight of the IC200UEX011?
The module measures approximately 95 × 90 × 76 mm and weighs approximately 0.37 kg (0.82 lb).
Q5: Does the module provide auxiliary power for sensors?
Yes. The IC200UEX011 includes an isolated 24 VDC auxiliary output capable of supplying up to 200 mA, which can power input devices such as proximity switches and sensors.
Q6: What loads can the relay outputs control?
Each relay output can switch 5–250 VAC or 5–30 VDC loads with a maximum rating of 2 A, making the module suitable for controlling motor starters, solenoids, relays, and indicator lights.
Q7: Is the IC200UEX011 compatible with VersaMax Micro PLC systems?
Yes. It is designed specifically as an expansion unit for VersaMax Micro PLCs and can be integrated with compatible Micro PLC CPUs to increase the available digital I/O.
Q8: What are the advantages of the GE IC200UEX011?
The IC200UEX011 offers a compact integrated design, universal 100–240 VAC power input, configurable 24 VDC digital inputs, 2 A relay outputs, built-in 24 VDC auxiliary power, fast response, and reliable performance for industrial automation and machine control applications.
