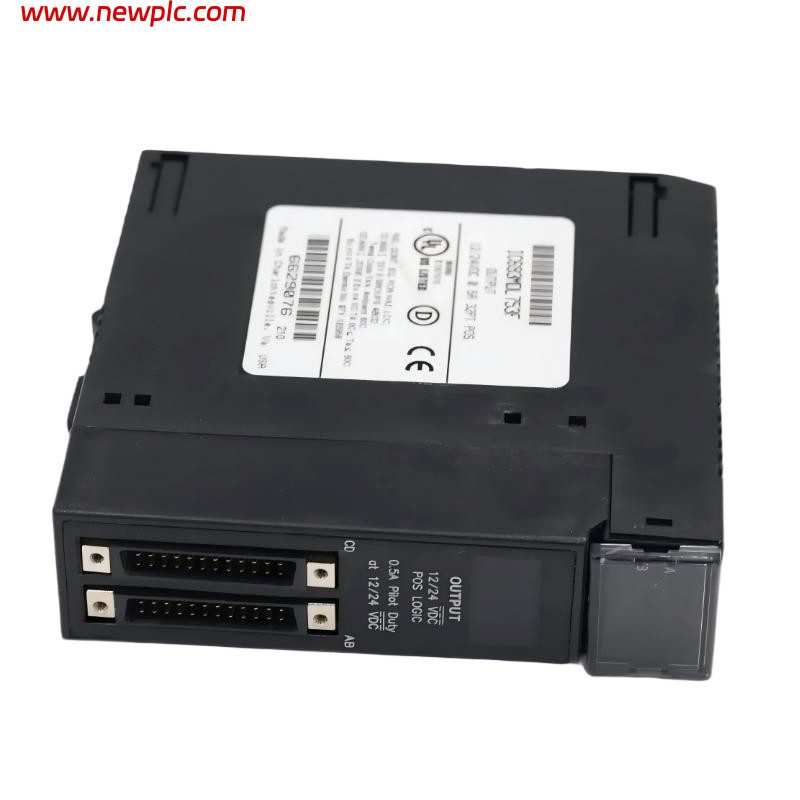

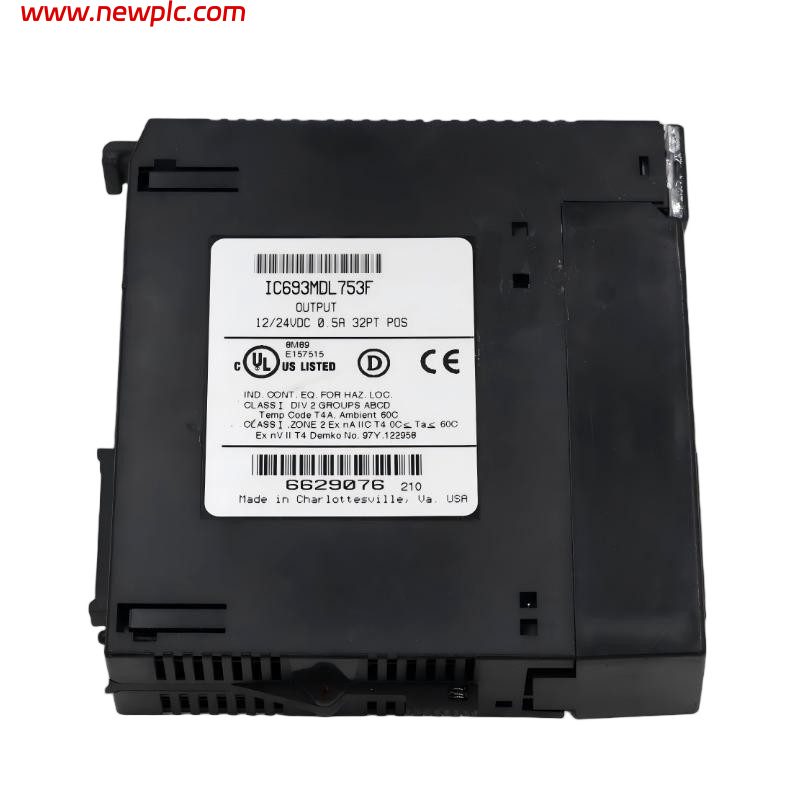

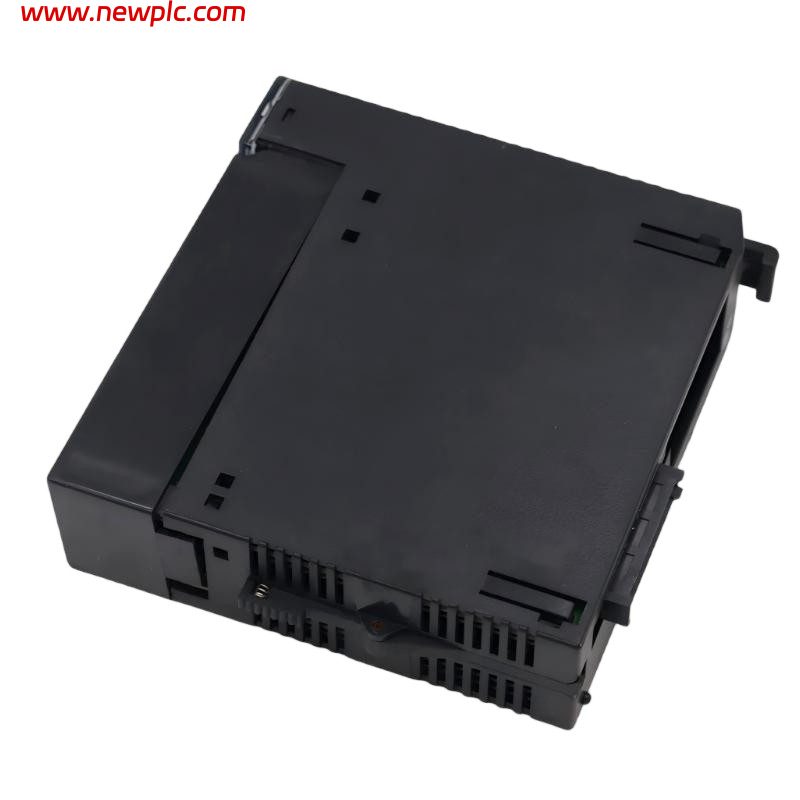

GE IC693MDL753F Discrete DC Output Module

FAQ

Q1: What is the GE IC693MDL753F used for?
The IC693MDL753F is used to control 12/24 VDC field devices such as relays, solenoid valves, contactors, pilot lights, and other DC loads in GE Series 90-30 PLC systems.

Q2: How many output channels does the IC693MDL753F provide?
The module provides 32 positive logic (sourcing) outputs, organized into four isolated groups of eight outputs, each with its own common terminal.

Q3: What are the electrical ratings of the IC693MDL753F?
The module operates with an external 12/24 VDC supply (10.2–28.8 VDC operating range), provides 0.5 A per output point, supports 4 A maximum per output group, and 3 A maximum per group common.

Q4: What are the dimensions and weight of the IC693MDL753F?
The module measures approximately 37 × 128 × 140 mm and weighs approximately 0.22 kg.

Q5: Does the IC693MDL753F require an external power supply?
Yes. The module logic is powered by the PLC backplane, but an external 12/24 VDC field power supply is required to drive the connected loads.

Q6: What isolation does the module provide?
The IC693MDL753F provides 1500 VAC isolation between the field side and PLC logic side, and 250 VAC isolation between output groups for enhanced electrical protection.

Q7: What diagnostic features are available?
Each output channel includes an individual LED indicator, allowing operators to monitor output status and simplify troubleshooting.

Q8: What are the advantages of the GE IC693MDL753F?
The IC693MDL753F offers 32 high-density sourcing outputs, fast 0.5 ms switching, four isolated output groups, optical isolation, reliable transistor output technology, and seamless compatibility with the GE Series 90-30 PLC platform, making it well suited for demanding industrial automation applications.
