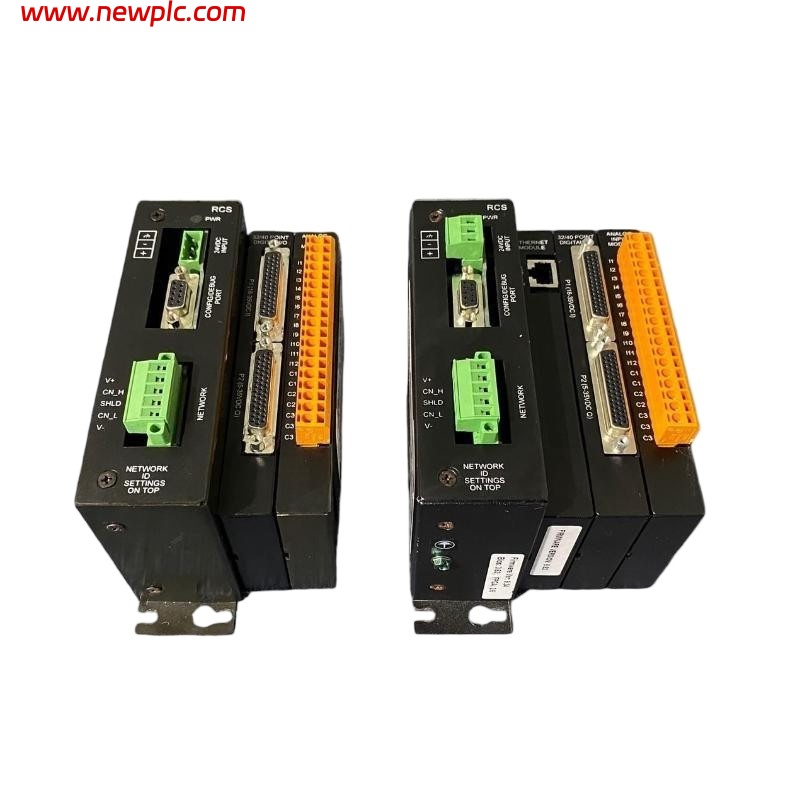

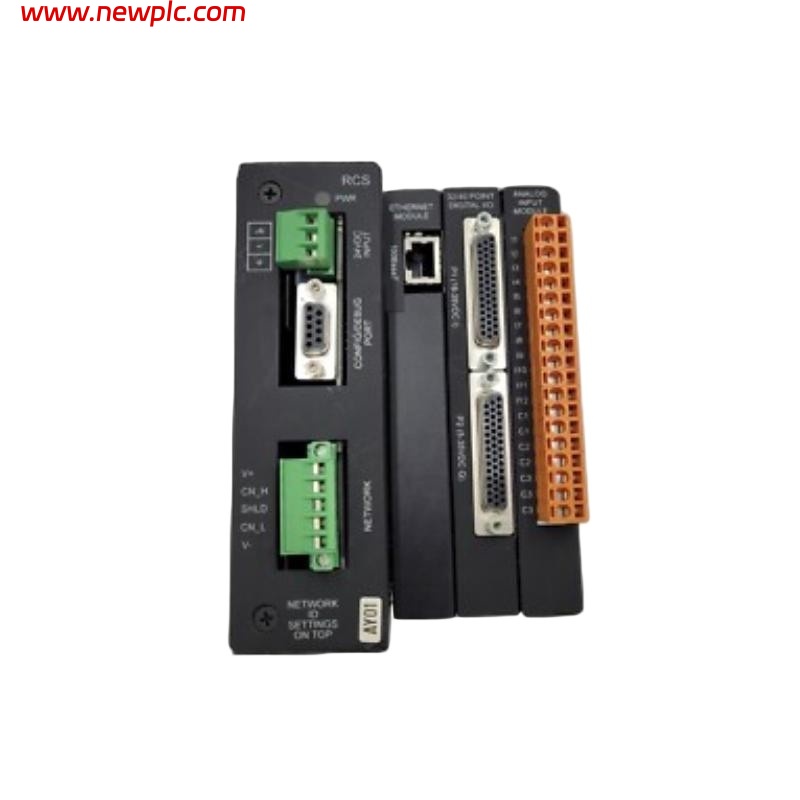

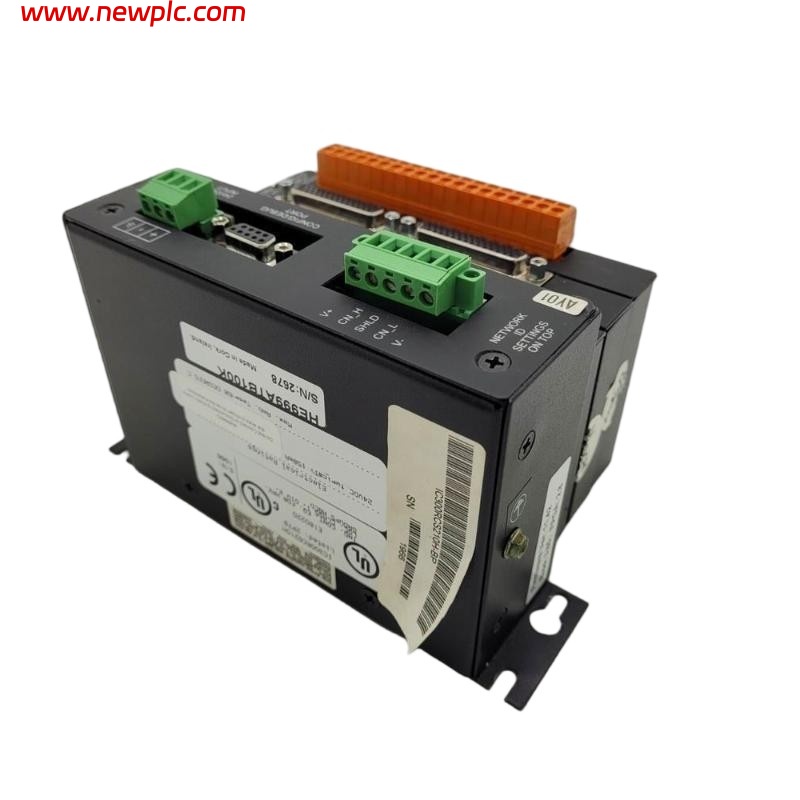

GE IC300RCS210H Remote Control Station (SmartStack)

FAQ

Q1: What is the purpose of the IC300RCS210H?
It is a remote control station module used with GE Fanuc SmartStack PLC systems to provide remote operator control and monitoring capabilities.

Q2: What series does the IC300RCS210H belong to?
It is part of the SmartStack series of GE Fanuc automation modules.

Q3: What power supply voltage is required?
It operates on a DC supply between 10 V and 30 V DC, with typical operation at 24 V DC.

Q4: How much power does it draw?
The module draws about 150 mA at 24 V DC.

Q5: Does the IC300RCS210H have any communication ports?
Yes, it includes an RS-232 serial interface and supports communication with CAN networks.

Q6: What indicators are available on the module?
It has LEDs for RUN status, OK status, RS-232 activity, and network status.

Q7: What are the physical dimensions and weight?
The unit measures approximately 3.88 in × 1.7 in × 5.75 in (~9.85 cm × 4.32 cm × 14.60 cm) and weighs about 0.66 kg.

Q8: Where is this module mounted?
It is designed to be mounted on a back plate within a SmartStack PLC system, not on a panel door.

GE IC300RCS210H
