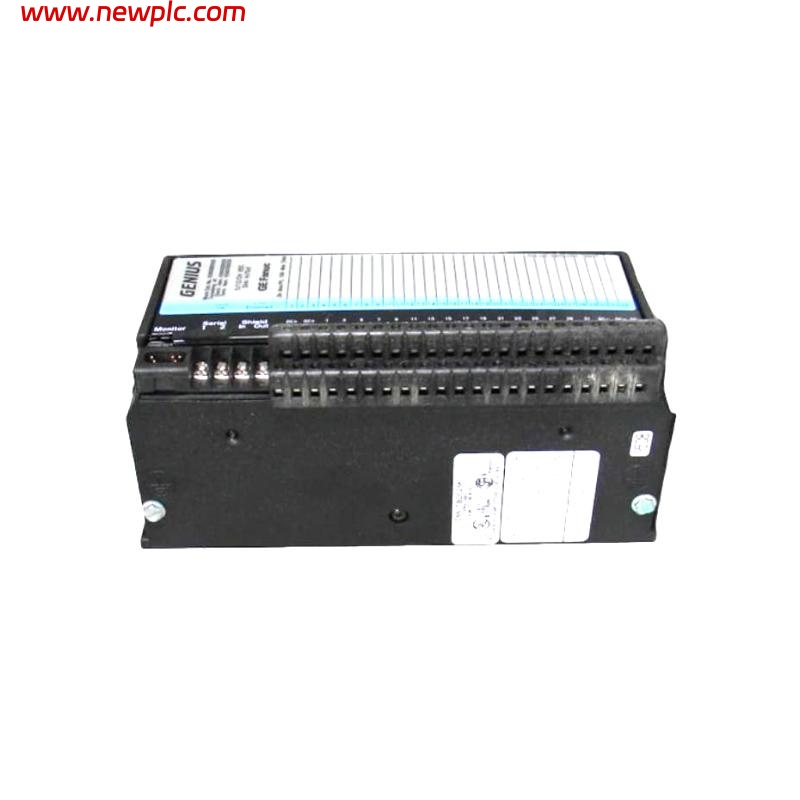

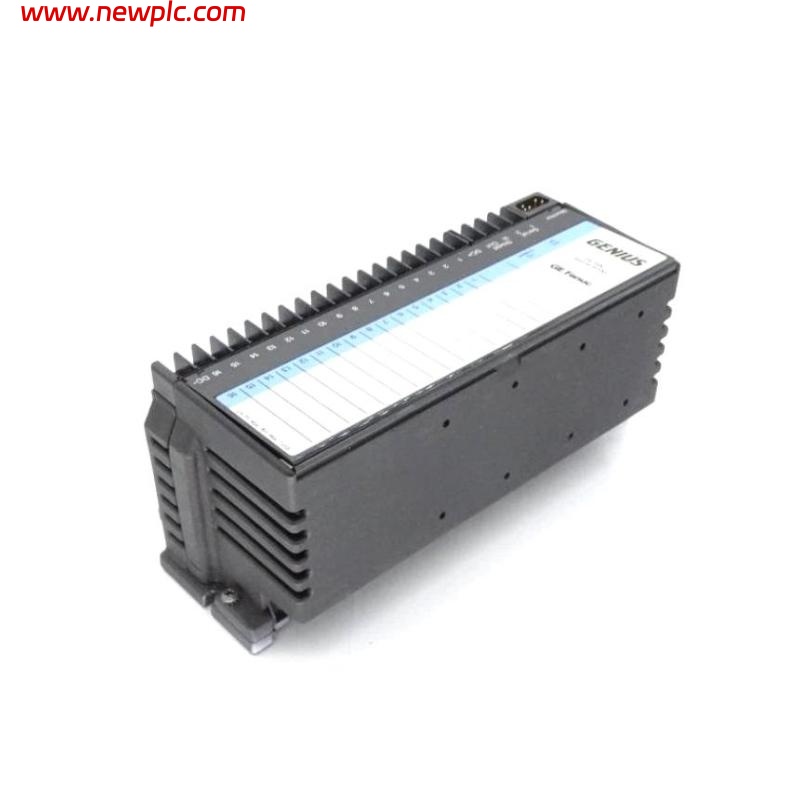

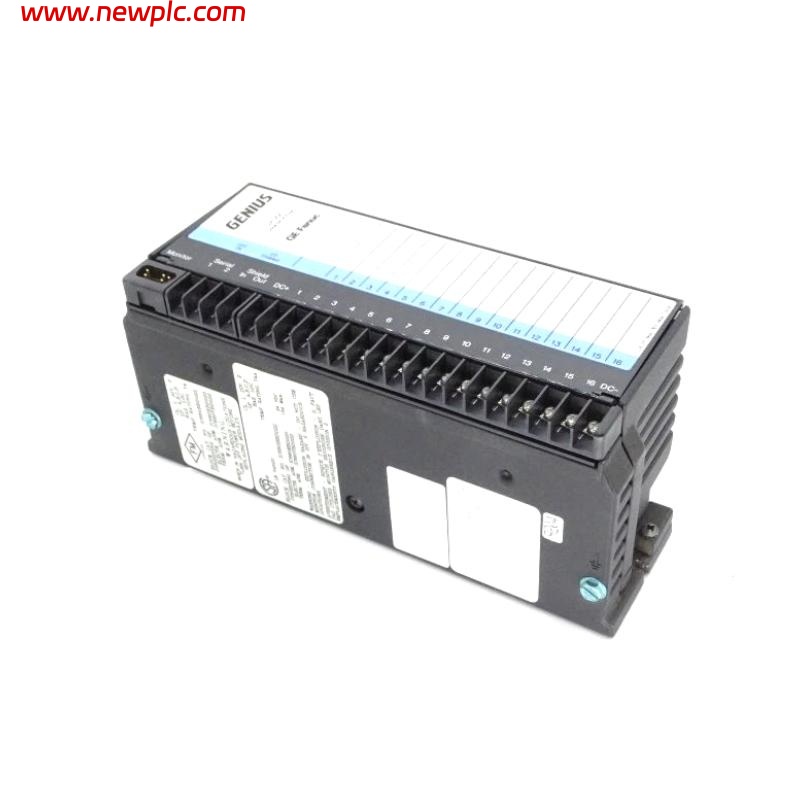

GE IC660BBD022 Genius Discrete I/O Block

FAQ

Q1: How many circuit configurations does this module support?
A1: The IC660BBD022 supports each circuit being configured as input, tristate input, or output.

Q2: What is the maximum output current of the module?
A2: Each circuit can output 2A steady state, and the total block output current is up to 15A at 35°C.

Q3: What is the input voltage range?
A3: The input ON voltage is 16–24VDC, and the input OFF voltage is 0–7VDC.

Q4: Does the module have short circuit and over-temperature protection?
A4: Yes, it has built-in diagnostics for short circuit, over-temperature, overload, open wire, and failed switch.

Q5: What is the isolation voltage between blocks?
A5: The block-to-block isolation voltage is 1500V.

Q6: What is the minimum recommended load per output circuit?
A6: The minimum recommended load per output circuit is 50mA.

Q7: What is the operating temperature range of this module?
A7: The operating temperature range is 0°C to +60°C.

Q8: What are the dimensions and weight of the module?
A8: The module measures 224.4 x 88.9 x 100 mm and weighs 1.35 kg.

GE Genius Discrete I/O Block IC660BBD022
