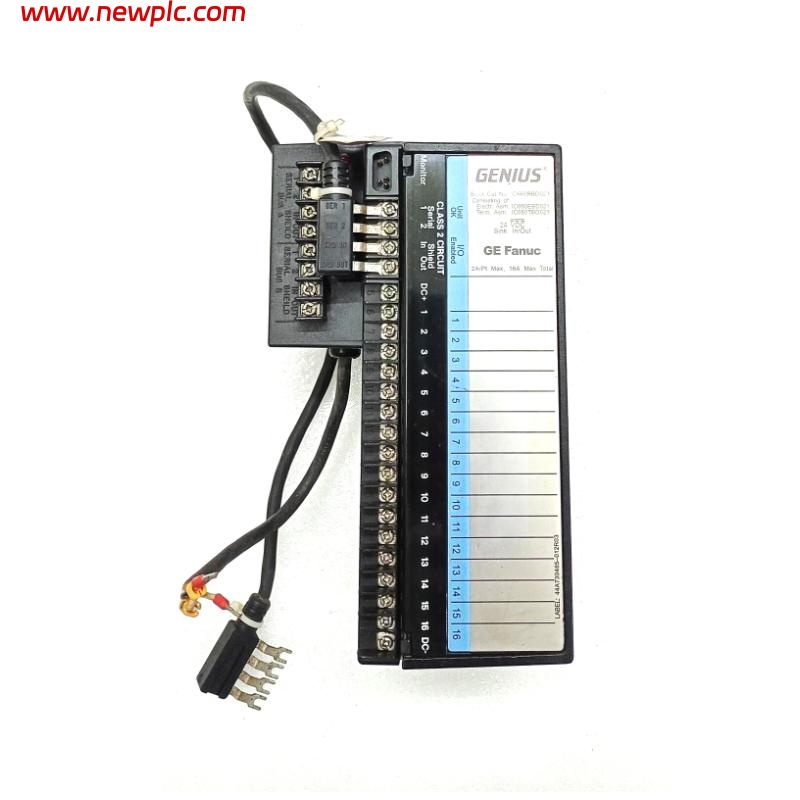

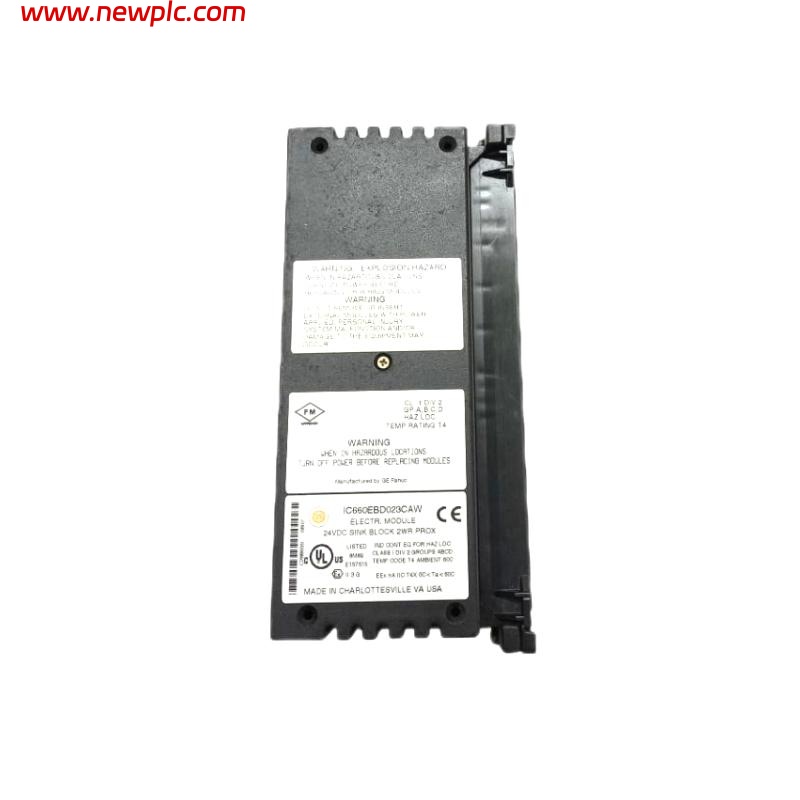

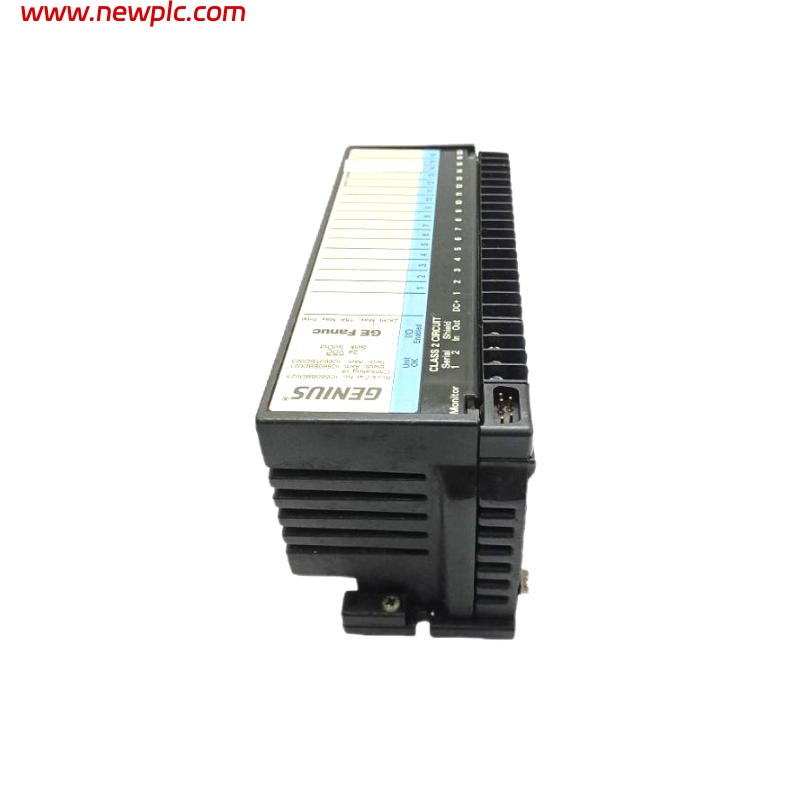

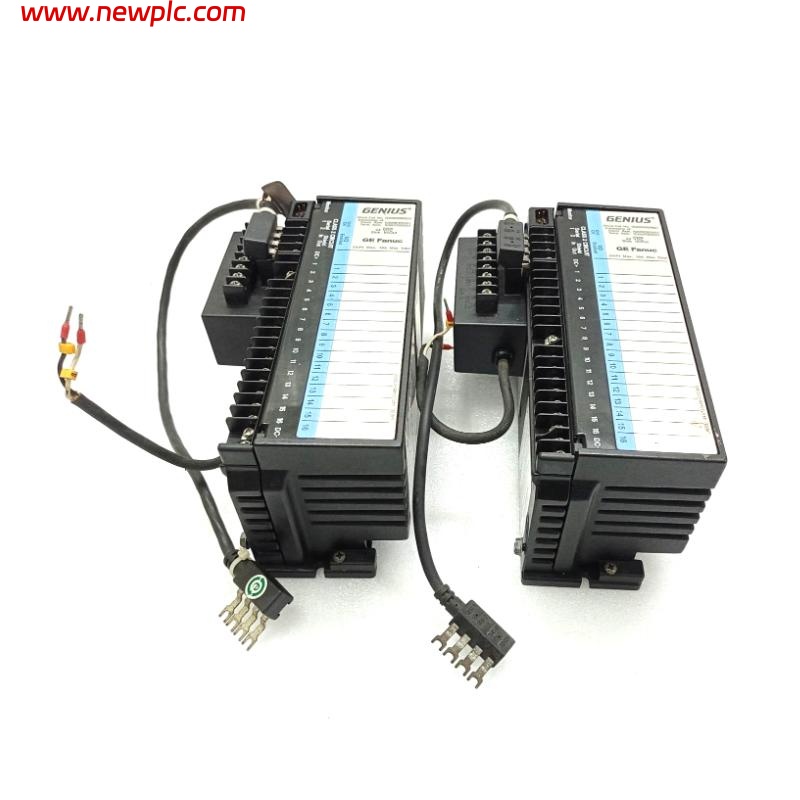

GE IC660BBD023 Genius Discrete I/O Block

FAQ

Q1: How many I/O points does the IC660BBD023 support?
A1: This module supports 16 discrete I/O points, grouped as sink inputs/outputs.

Q2: What is the operating voltage range?
A2: The operating voltage range is 18–30 VDC.

Q3: What is the maximum load current per point?
A3: Each point supports up to 2 A load current.

Q4: Does the module require a separate power supply?
A4: No, the module draws power directly from the terminal voltages.

Q5: What is the input response time?
A5: Input response time is 1.7 ms plus a configurable filter (5–100 ms).

Q6: What are the physical dimensions of the module?
A6: The module dimensions are 224.4 x 88.9 x 100 mm.

Q7: What is the weight of the module?
A7: The module weighs 1.564 kg.

Q8: Does the module have short circuit protection?
A8: Yes, it includes built-in short circuit and overload protection.

GE Genius Discrete I/O Block IC660BBD023
