GE IC693MDL754 Series 90-30 DC Voltage Output Module

FAQ – Frequently Asked Questions

Q1: What type of outputs does the IC693MDL754 module provide?
A1: It provides 32 positive logic (sourcing) DC outputs.

Q2: Is the module compatible with Series 90-30 CPUs?
A2: No, it is compatible only with PACSystems RX3i CPUs.

Q3: What is the maximum current each output point can source?
A3: Each point can source up to 0.75 A.

Q4: What protection features are included in this module?
A4: It includes short-circuit, overcurrent, and overtemperature protection with automatic recovery.

Q5: What is the purpose of the DIP switch on the back of the module?
A5: It sets the default output mode to either “Force Off” or “Hold Last State” during communication loss.

Q6: Can the module drive different voltage loads in each group?
A6: Yes, each isolated group of 16 outputs can drive different voltage loads (e.g., 12 VDC and 24 VDC).

Q7: How is field wiring connected to the module?

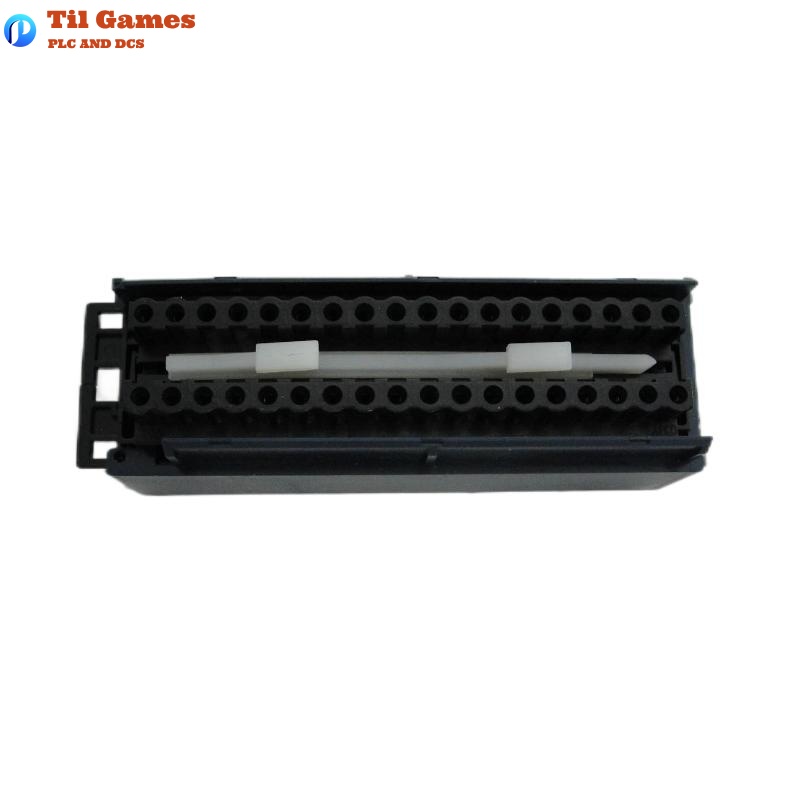

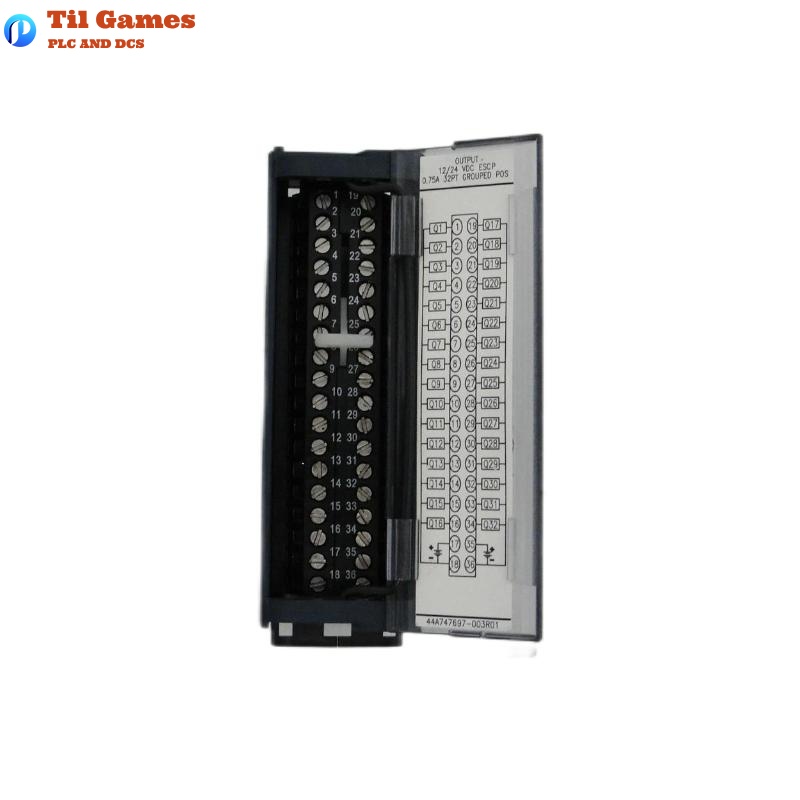

A7: Field wiring is connected via a removable terminal block, either box-style or spring-style.

Q8: What happens if the terminal block is missing or improperly locked?
A8: The module will send a “Loss of Terminal Block” fault to the CPU and illuminate the terminal block LED red.
