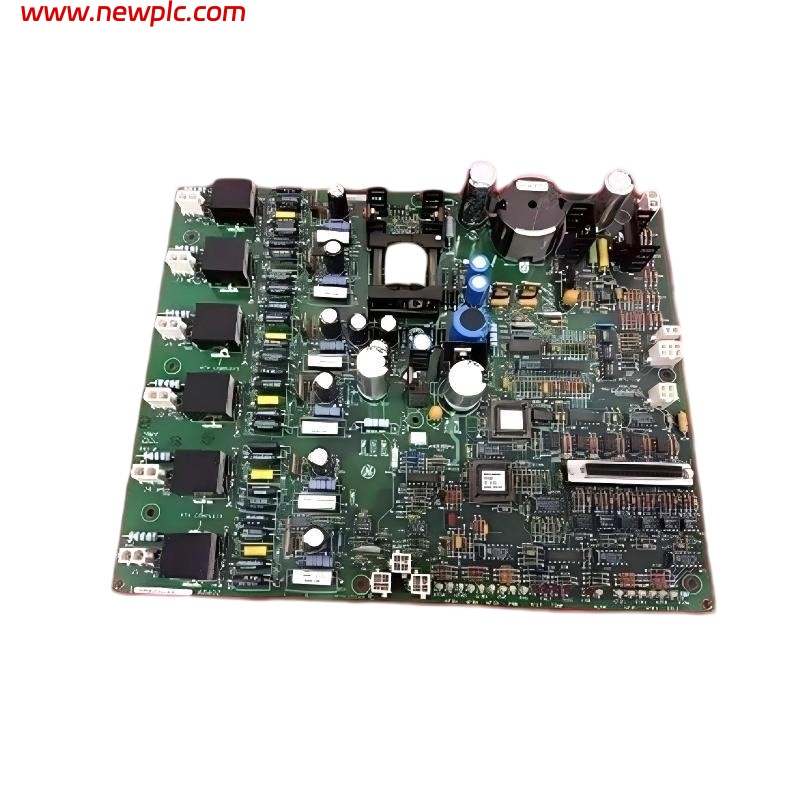

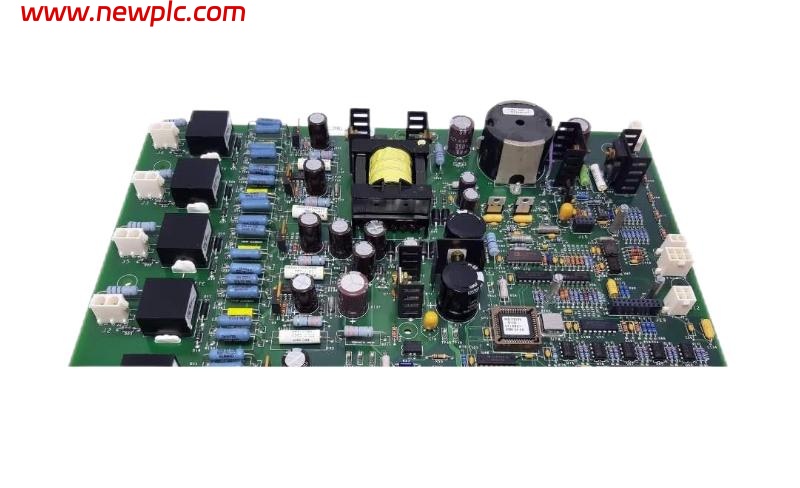

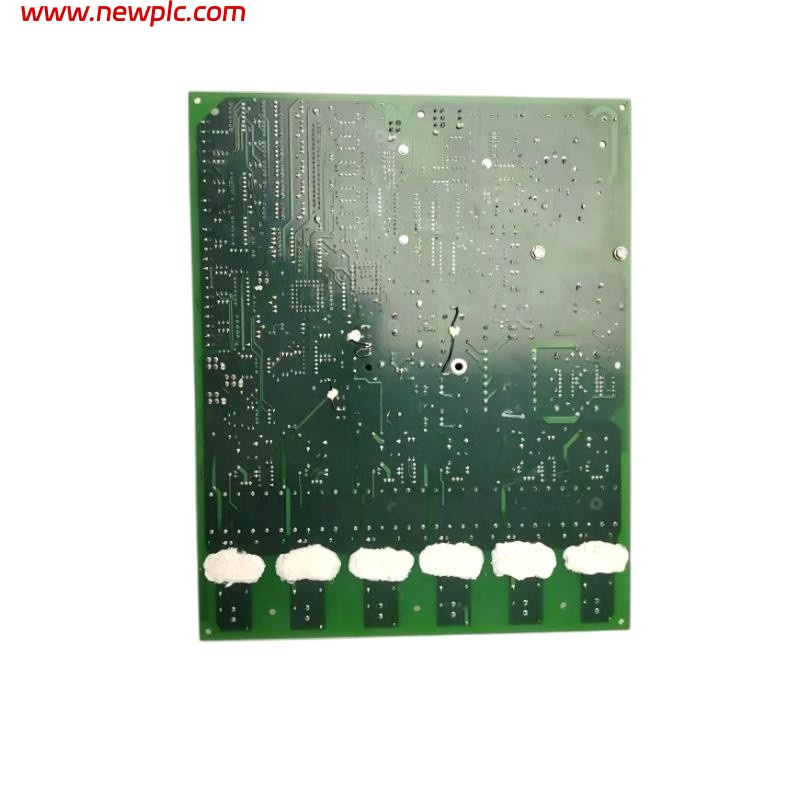

GE IS200EHPAG1ACB Exciter Gate Pulse Amplifier Board

FAQ

Q1. What is the GE IS200EHPAG1ACB used for?
It is a gate pulse amplifier board that strengthens controller logic signals and supplies high‑power gate drive pulses to semiconductor devices in an excitation system.

Q2. Which systems is this board compatible with?
This module is designed for use in GE EX2100 excitation control systems.

Q3. What role does the IS200EHPAG1ACB play in an excitation system?
It interfaces control signals to power electronics, ensuring reliable triggering of SCRs or IGBTs that regulate generator field current.

Q4. What are the main electrical interfaces on this board?
It receives low‑power logic command signals from the controller and outputs amplified gate pulses to semiconductor power devices.

Q5. What are the environmental conditions it supports?
It is rated to operate from about –40 °C up to +70 °C for industrial excitation applications.

Q6. What are the physical size and weight of the IS200EHPAG1ACB?
It measures approximately 205 mm × 156 mm × 26.5 mm and weighs about 1 kg.

Q7. Is this module suitable for industrial generator control?
Yes, it’s engineered for industrial excitation control environments in power generation systems.

Q8. Where is this board mounted?

GE IS200EHPAG1ACB
