Technical Specifications
| Parameter | Description |
|---|---|

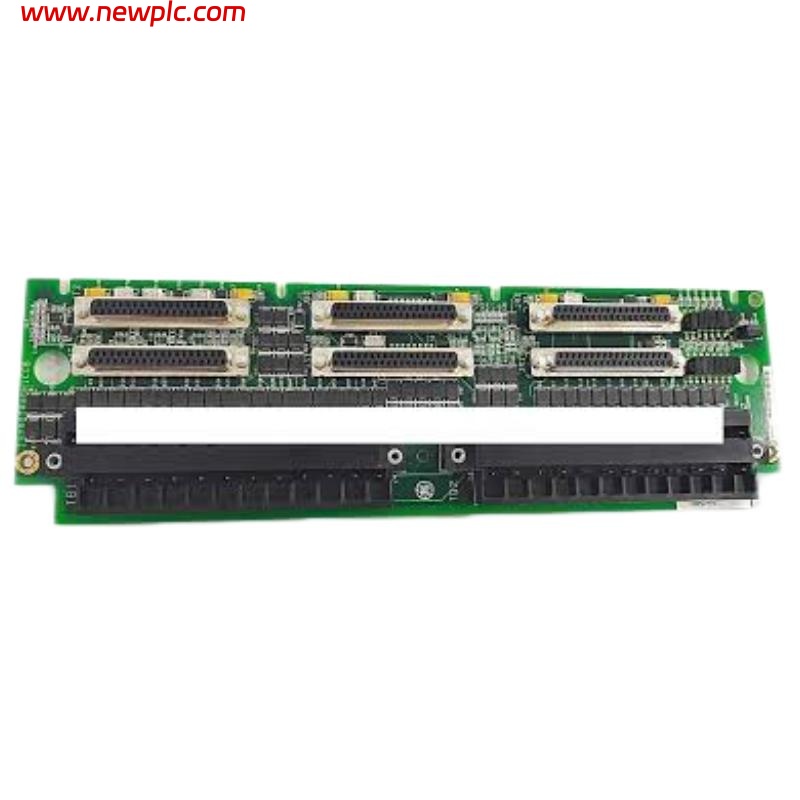

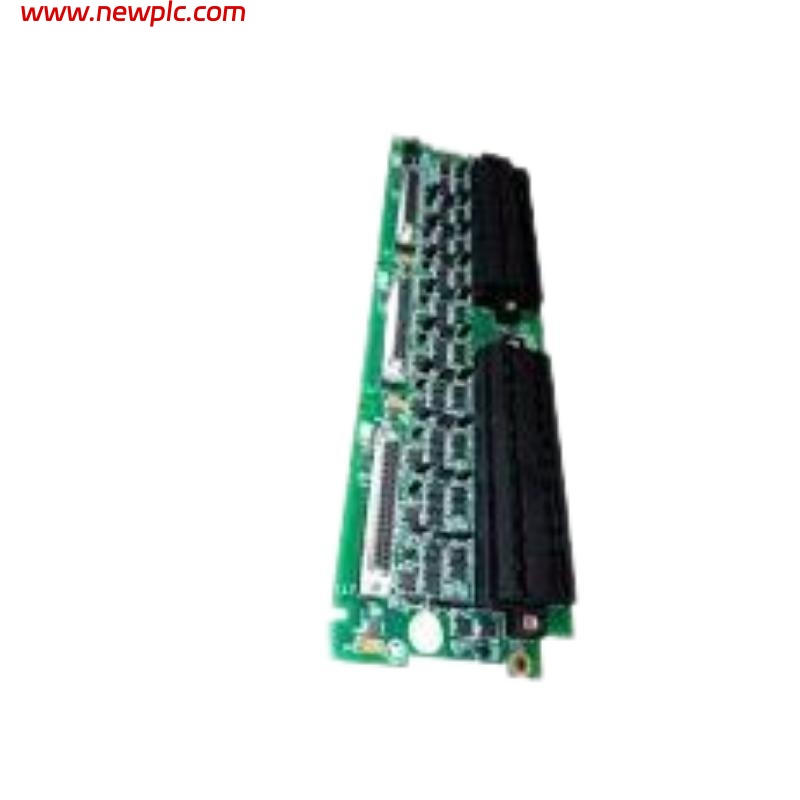

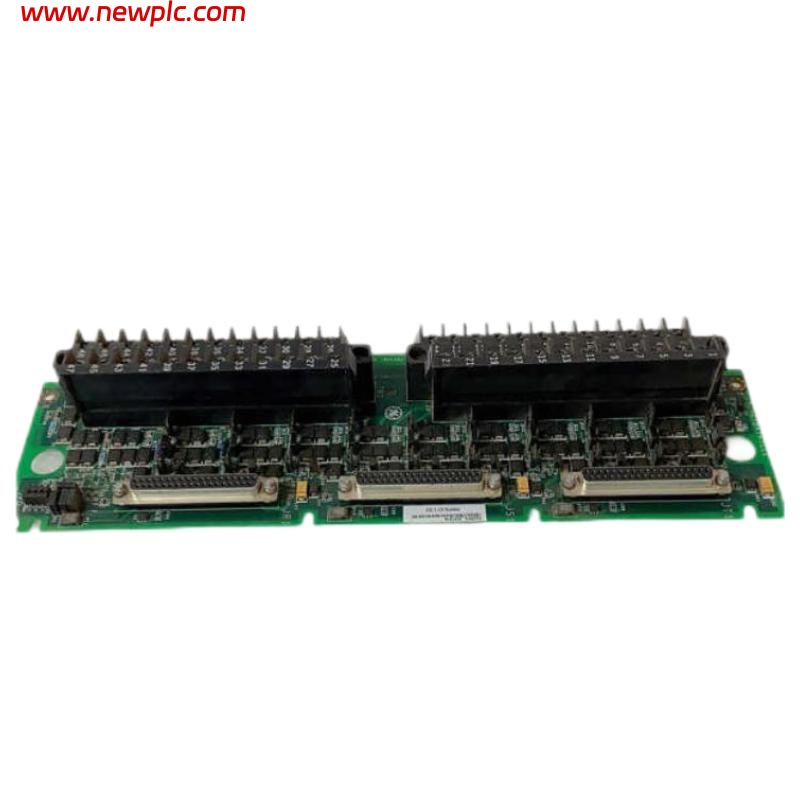

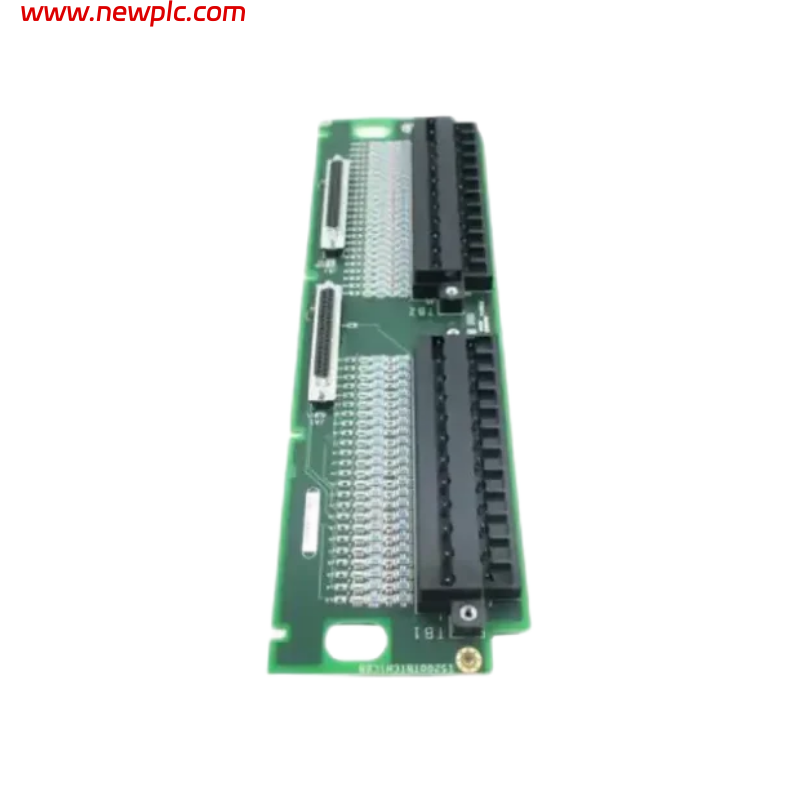

| Product Model | IS200TBAIH1CDC |
| Manufacturer | General Electric (GE) |
| Product Type | Analog Input/Output Terminal Board |
| Series / System Compatibility | GE Mark VI / Mark VIe Speedtronic turbine control system |
| Functional Role | Interfaces analog input signals and conditioned analog outputs between field transmitters and the turbine control logic |
| Analog Input Channels | 10 analog inputs |
| Analog Output Channels | 2 analog outputs |
| Input Signal Span | 1–5 V DC typical voltage span for inputs |
| Output Load Rating | 500 Ω for 4–20 mA, 50 Ω for 200 mA outputs |
| Power Consumption | < 31 W typical |
| Supported Configurations | Simplex or TMR (Triple Modular Redundancy) applications |
| Connector Type | 3 × DC‑37 pin connectors for system interface |
| Surge / Noise Protection | Built‑in suppression and filtering for reliable signal conditioning |
| Operating Temperature | –30 °C to +65 °C |
| Relative Humidity | 5 %–95 % non‑condensing |
| Protection | Conformal coated PCB for industrial environments |
| Dimensions | Approx. 100 mm × 125 mm × 25 mm |
| Weight | Approx. 0.25 kg |
| Mounting | Inserted into turbine control rack or terminal panel |
FAQ
FAQ
Q1. What is the IS200TBAIH1CDC used for?
It is an analog input/output terminal board that conditions and routes analog signals between field transmitters and the GE Mark VI turbine control system.
Q2. How many analog inputs and outputs does it support?
It supports 10 analog inputs and 2 analog outputs.
Q3. What voltage range can the analog inputs handle?
Input signals typically span 1–5 V DC from transmitters.
Q4. What is the maximum output load the board can drive?
The board can drive outputs with load resistances up to 500 Ω for 4–20 mA and 50 Ω for 200 mA.
Q5. What power consumption does this board have?
It has a typical power consumption of less than 31 watts.
Q6. Can this board be used in redundant systems?
Yes — it supports both simplex and TMR (Triple Modular Redundancy) configurations.
Q7. What environmental conditions can it operate in?
It operates in industrial environments with an approximate range from –30 °C to +65 °C and wide humidity tolerance.
Q8. How big and heavy is the IS200TBAIH1CDC board?
Its approximate dimensions are 100 mm × 125 mm × 25 mm and it weighs about 0.25 kg.
