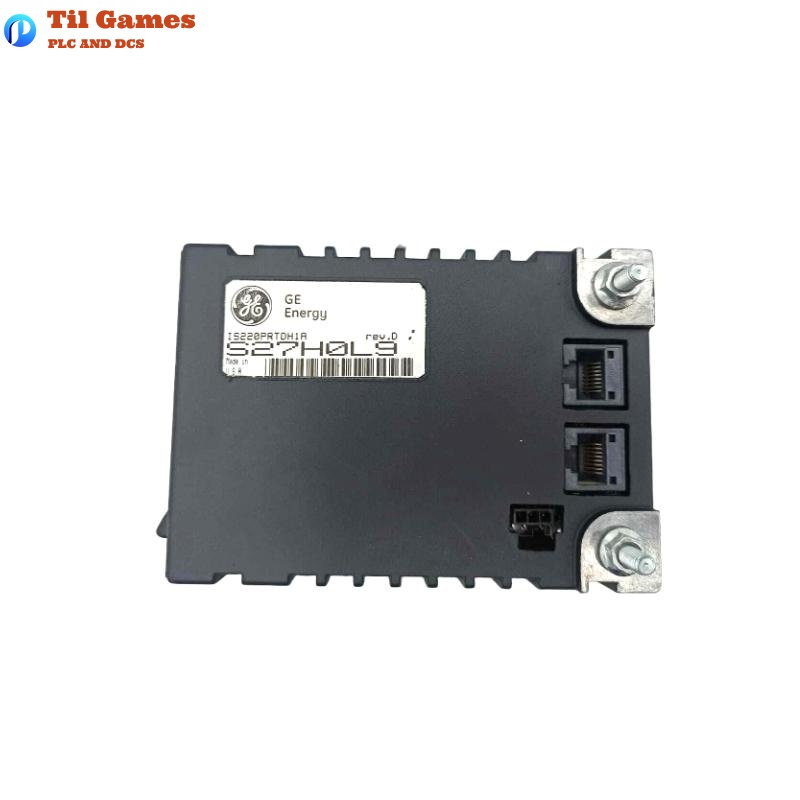

GE IS220PRTDH1A Mark VIe Series Resistance Temperature Device Input Module

FAQ

Q1: How many RTD inputs does the IS220PRTDH1A support?
A1: The module supports up to 8 RTD input channels.

Q2: Which RTD terminal boards are compatible with IS220PRTDH1A?
A2: It is compatible with TRTDH1D, TRTDH2D, and SRTD terminal boards. It is not compatible with the DRTD board.

Q3: How is power connected to the module?
A3: Power is connected via a 3-pin connector on the side of the module. A built-in soft-start function eliminates the need to disconnect power during connection.

Q4: What type of network communication does it support?
A4: It supports dual RJ45 Ethernet ports with 10/100 Mbps speed and auto-negotiation. It also supports DHCP for address assignment.

Q5: What diagnostic features are available in IS220PRTDH1A?
A5: It includes power-up self-test, internal power monitoring, hardware ID matching, hardware and system limit checking for RTD inputs, and diagnostic LEDs.

Q6: Does the module support redundant communication?
A6: Yes, both Ethernet ports are active simultaneously. If one fails, the other maintains communication without interruption.

Q7: How can I identify module faults?

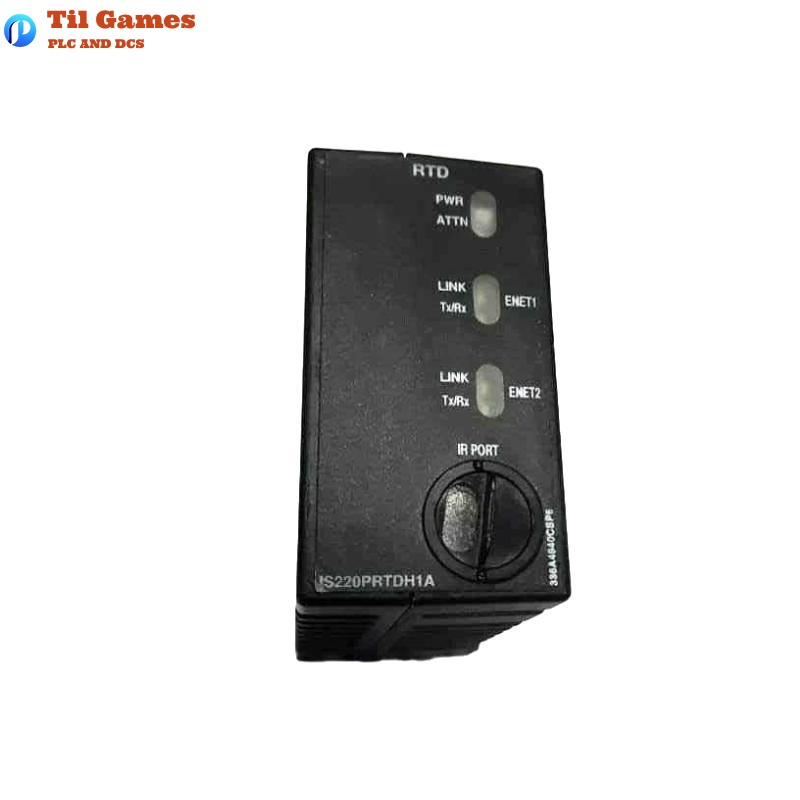

A7: Faults are indicated by status LEDs and diagnostic signals like L3DIAG PRTD within the ToolboxST application.

Q8: How is the IS220PRTDH1A installed?

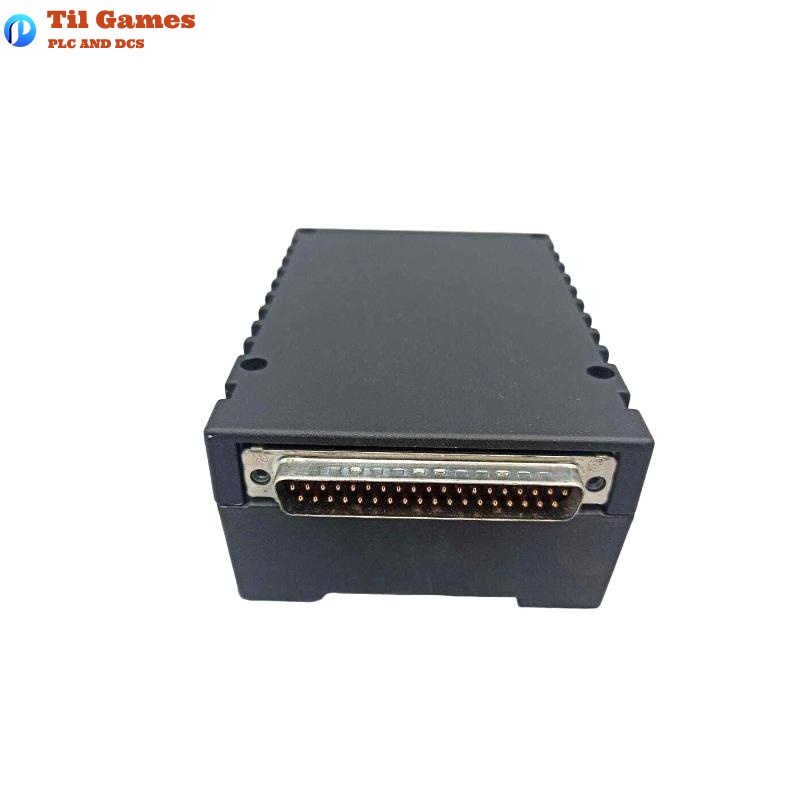

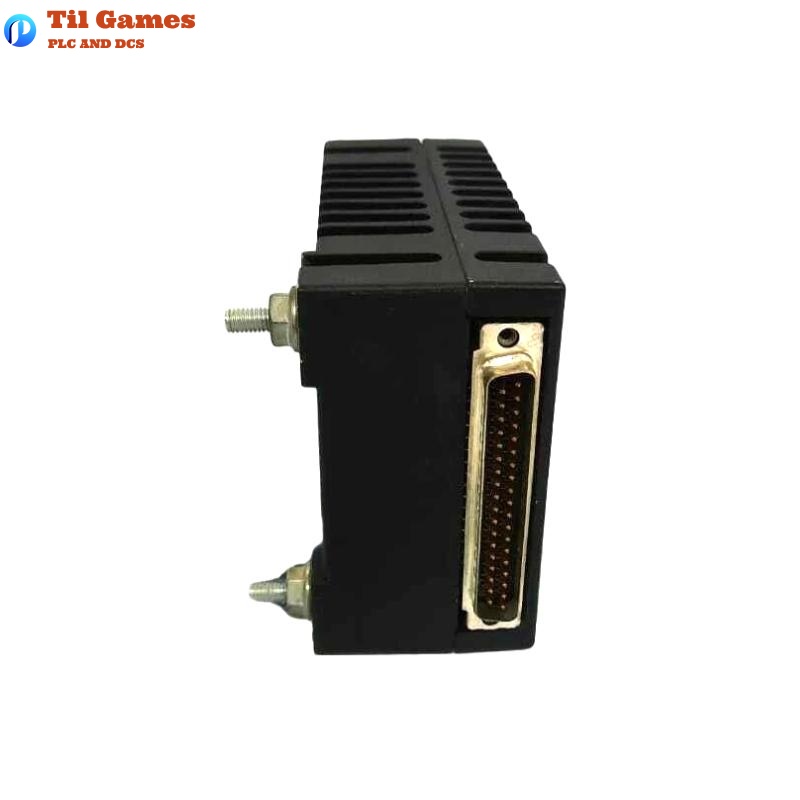

A8: Connect it directly to the terminal board using the DC-37 connector and secure it with screws using the threaded inserts near the Ethernet ports to avoid mechanical stress.
