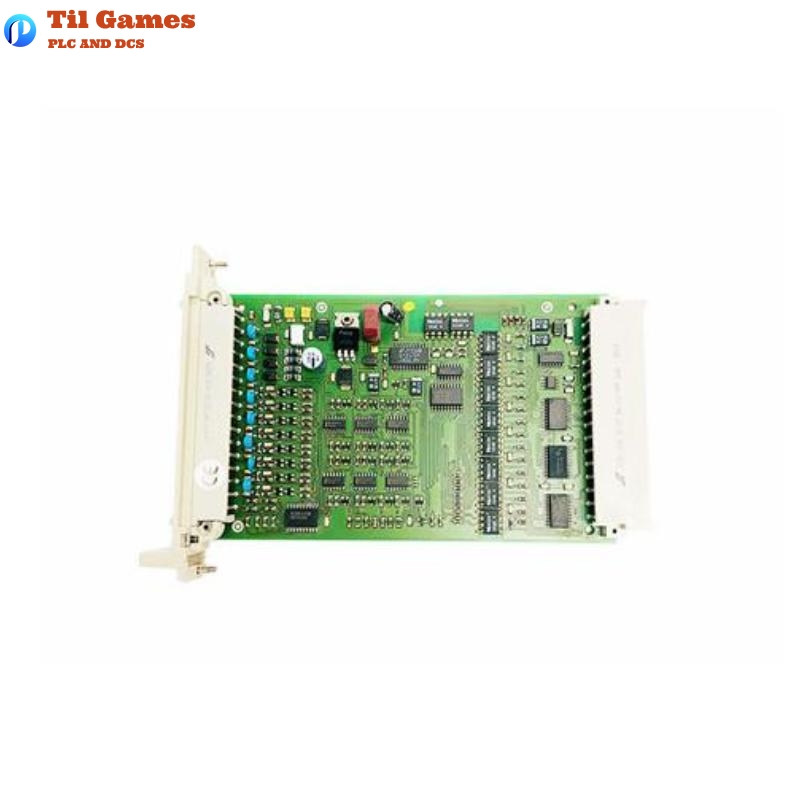

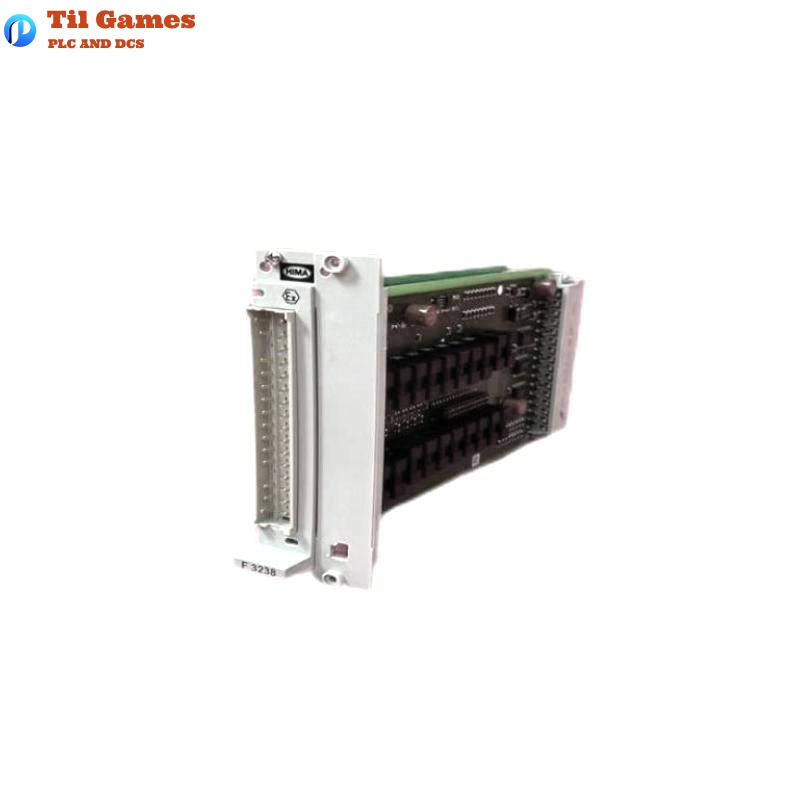

HIMA F3238 8 Channel Input Module

FAQ

1. Q: What is the operating temperature range of the HIMA F3238 8-channel input module?

   • A: The operating temperature range is from 0°C to +60°C.

2. Q: What are the power supply requirements for the HIMA F3238 module?

   • A: The power supply requirements are as follows:

     • UB1: Un = 24VDC (-15%, +20%), max 30V

     • UB2: Un = 5VDC (±10%), max 6V

3. Q: What type of protection does the HIMA F3238 module support?

   • A: The module supports [Ex ia Ga] IIC/IIB or [Ex ia Da] IIIC/IIIB type protection.

4. Q: In which areas can the HIMA F3238 module be used?

   • A: The input module can be used in hazardous areas starting from Zone 0, provided it is certified.

5. Q: What are the maximum capacitance and inductance values supported by the HIMA F3238 module?

   • A: The maximum supported capacitance and inductance values are as follows:

     • Single Circuit: Lo = 155 mH, Co = 3.2 µF

     • Parallel Circuit: Lo = 155 mH, Co = 3.2 µF

6. Q: What types of proximity switches are supported by the HIMA F3238 module?

   • A: The module supports proximity switches according to the NAMUR standard or contacts with a resistor network.

7. Q: What is the external voltage limit for the HIMA F3238 module?

   • A: The maximum external voltage is 40V.

8. Q: What are the dimensions and weight of the HIMA F3238 module?

   • A: The dimensions are 20 × 190 × 128 mm, and the weight is 0.14 kg.

8 Channel Input Module F3238 HIMA
