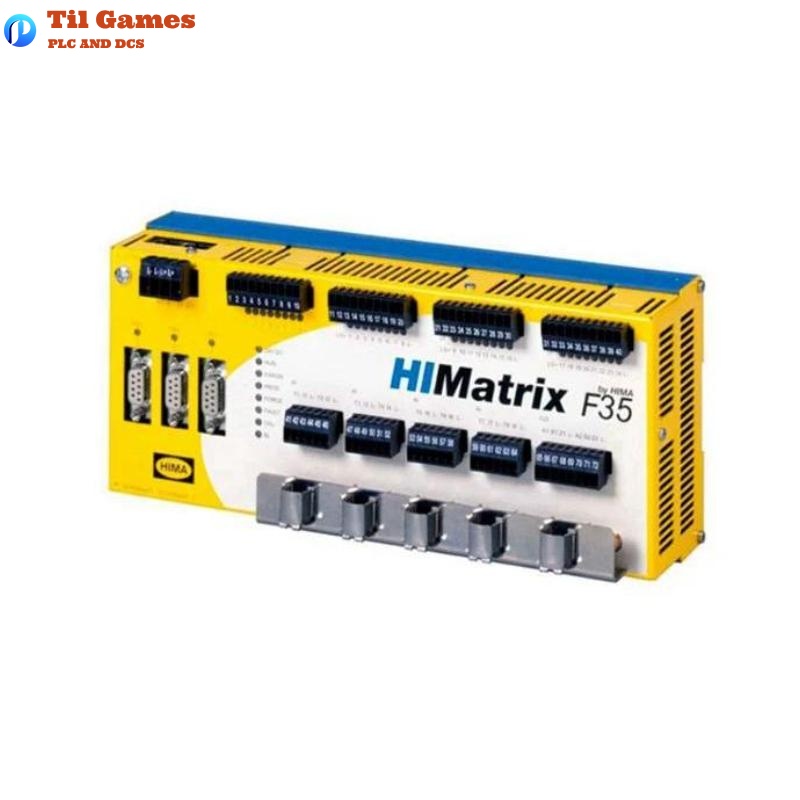

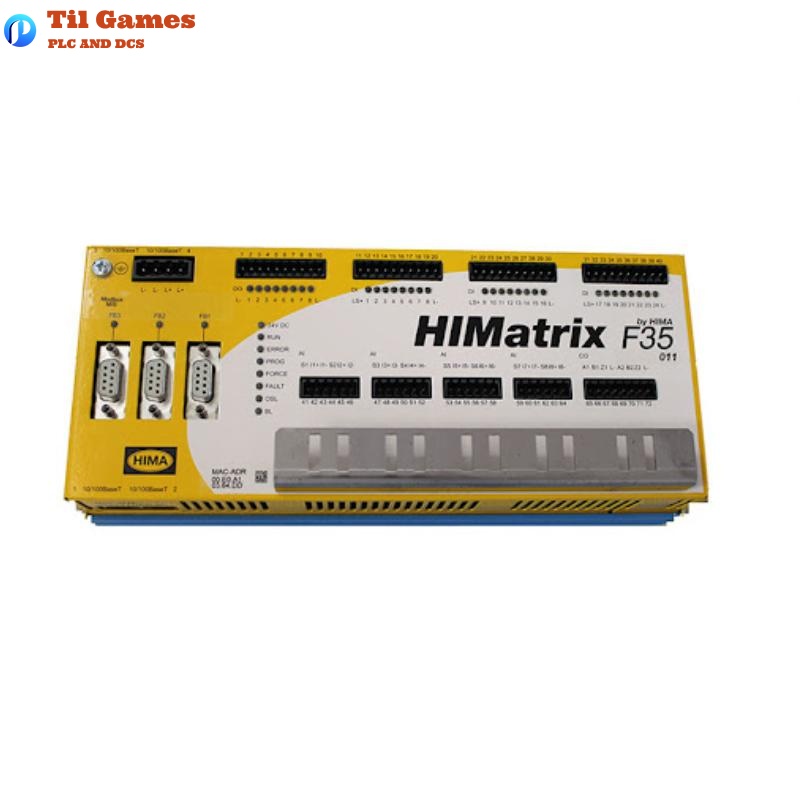

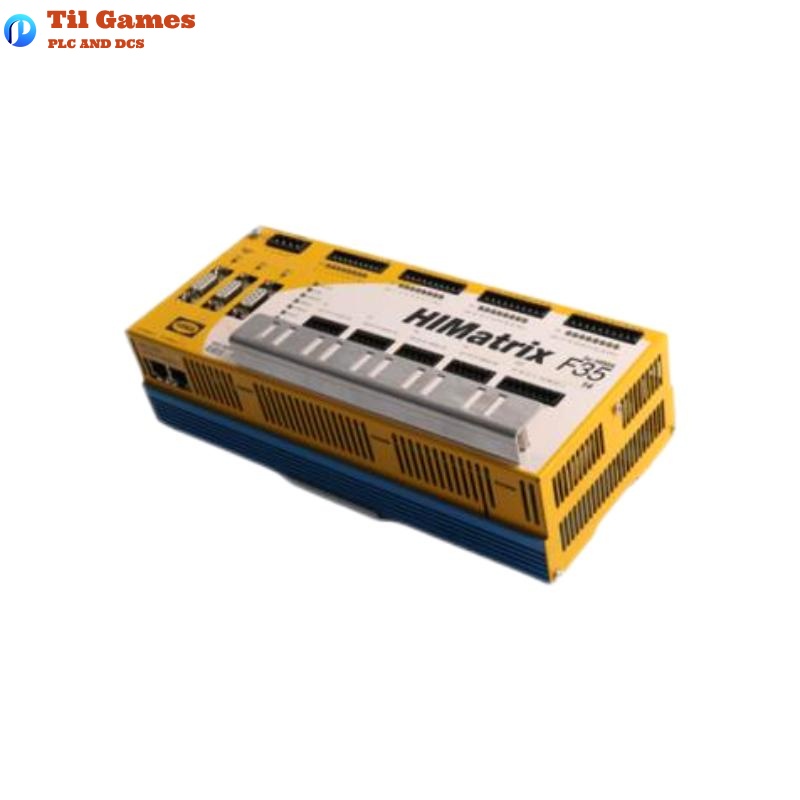

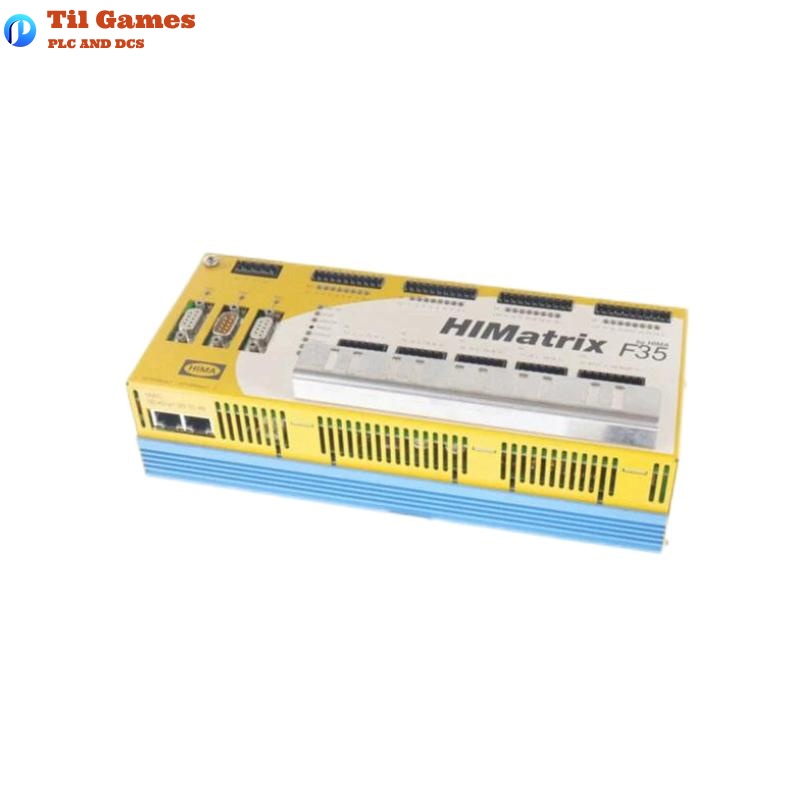

HIMA F35 011 HIMatrix Safety-Related Controller

Frequently Asked Questions (FAQ)

Q1: What types of input signals does the F35 011 controller support?
A1: It supports 24 digital inputs (24 V level) and 8 analog inputs (0–10 V or 0–20 mA via shunt).

Q2: What is the maximum load per digital output?
A2: Channels 1–3 and 5–7: 0.5 A; Channels 4 and 8: 1 A at 60°C or 2 A at 50°C.

Q3: What is the operating temperature range of the controller?
A3: The operating range is from -20°C to +60°C; storage range is -40°C to +85°C.

Q4: How does the controller measure current signals on analog inputs?
A4: Through external shunt adapters such as Z7301 or Z7302.

Q5: Does the controller have redundant power input?
A5: No internal redundancy, but it requires a 24 VDC power supply with safe isolation.

Q6: What communication protocols are supported?
A6: Supports safeethernet, Modbus-TCP, OPC, EtherNet/IP, SNTP, and more.

Q7: What are the mounting options for the controller?
A7: Can be mounted on a DIN rail or on a panel (F35 012 model suitable for subsea mounting).

Q8: Is the F35 011 suitable for use in hazardous environments (Zone 2)?
A8: Yes, it is certified for Zone 2 installation per EN 60079-15 and related standards.

F35 011 HIMA HIMatrix Safety-Related Controller
